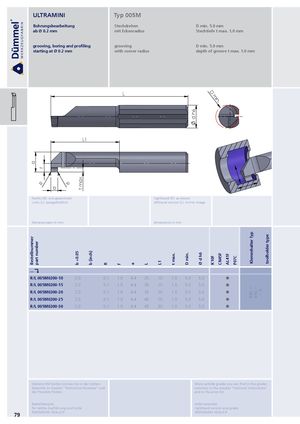

Каталог Duemmel общий 2022 - страница 84
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| grooving, boring and profiling | grooving | D min. 5.0 mm |
| starting at Ø 0.2 mm | with corner radius | depth of groove t max. 1.0 mm |
D
L mi
n.
L1
R
R b
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 005M0200-10 | 2.0 | 0.1 | 1.9 | 4.4 | 25 | 10 | 1.0 | 5.0 | 5.0 | |
| R/L 005M0200-15 | 2.0 | 0.1 | 1.9 | 4.4 | 30 | 15 | 1.0 | 5.0 | 5.0 | |
| R/L 005M0200-20 | 2.0 | 0.1 | 1.9 | 4.4 | 35 | 20 | 1.0 | 5.0 | 5.0 | |
| 645.∙∙∙ 650.∙∙∙ ∙∙∙.5 | ||||||||||
| R/L 005M0200-25 | 2.0 | 0.1 | 1.9 | 4.4 | 40 | 25 | 1.0 | 5.0 | 5.0 | |
| R/L 005M0200-30 | 2.0 | 0.1 | 1.9 | 4.4 | 45 | 30 | 1.0 | 5.0 | 5.0 | |
