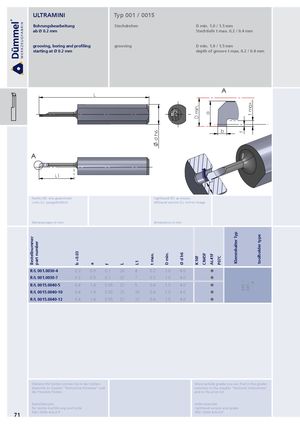

| Bohrungsbearbeitung | Stechdrehen | D min. 1.0 / 1.5 mm |
| ab Ø 0.2 mm | Stechtiefe t max. 0.2 / 0.4 mm | |
| grooving, boring and profiling | grooving | D min. 1.0 / 1.5 mm |
starting at Ø 0.2 mm depth of groove t max. 0.2 / 0.4 mm
A
L
b
A
L1
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 001.0030-4 | 0.3 | 0.9 | 0.1 | 20 | 4 | 0.2 | 1.0 | 4.0 | |
| R/L 001.0030-7 | 0.3 | 0.9 | 0.1 | 22 | 7 | 0.2 | 1.0 | 4.0 | |
| R/L 0015.0040-5 | 0.4 | 1.4 | 0.55 | 22 | 5 | 0.4 | 1.5 | 4.0 | |
| 640.∙∙∙ 645.∙∙∙ ∙∙∙.4 | |||||||||
| R/L 0015.0040-10 | 0.4 | 1.4 | 0.55 | 25 | 10 | 0.4 | 1.5 | 4.0 | |
| R/L 0015.0040-12 | 0.4 | 1.4 | 0.55 | 27 | 12 | 0.4 | 1.5 | 4.0 | |
