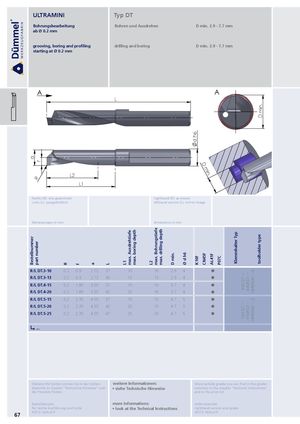

ULTRAMINI Typ DT
Bohrungsbearbeitung Bohren und Ausdrehen D min. 2.9 - 7.7 mm
grooving, boring and profiling drilling and boring D min. 2.9 - 7.7 mm
starting at Ø 0.2 mm
A A
L
L2
R
L1
Rechts (R): wie gezeichnet Links (L): spiegelbildlich
D
m
in.
righthand (R): as shown lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L DT.3-10 | 0.2 | 0.9 | 2.72 | 37 | 10 | 10 | 2.9 | 4 | |
| R/L DT.3-13 | 0.2 | 0.9 | 2.72 | 40 | 13 | 13 | 2.9 | 4 | |
| R/L DT.4-15 | 0.2 | 1.85 | 3.55 | 37 | 15 | 10 | 3.7 | 4 | |
| R/L DT.4-20 | 0.2 | 1.85 | 3.55 | 42 | 20 | 16 | 3.7 | 4 | |
| R/L DT.5-15 | 0.2 | 2.35 | 4.55 | 37 | 15 | 10 | 4.7 | 5 | |
| R/L DT.5-20 | 0.2 | 2.35 | 4.55 | 42 | 20 | 15 | 4.7 | 5 | |
| R/L DT.5-25 | 0.2 | 2.35 | 4.55 | 47 | 25 | 20 | 4.7 | 5 | |
67 RDT.3-10/AL41F RDT.3-10/AL41F
