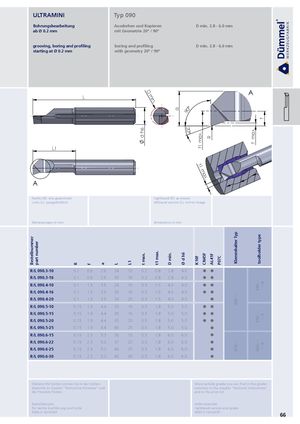

Каталог Duemmel общий 2022 - страница 71
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
grooving, boring and profiling boring and profiling D min. 2.8 - 6.0 mm
starting at Ø 0.2 mm with geometry 20° / 90°
| Rechts (R): wie gezeic Links (L): spiegelbildlic L1 A | hnet h | L | d h6 D | righthand (R) lefthand vers min. | : as shown ion (L): mirro a 20° 90° | r image t1 max. R t max. t1 max. f A | ||||
| Bestellnummer part number Abmessungen in mm | R | f | a | L | L1 | t max. | t1 max. D min. dimensions in | Ø d h6 mm | K10F CN45F AL41F P07C Klemmhalter Typ toolholder type | |
| R/L 090.3-10 R/L 090.3-16 | 0.1 0.1 | 0.6 0.6 | 2.6 2.6 | 24 30 | 10 16 | 0.2 0.2 | 0.8 2.8 0.8 2.8 | 4.0 4.0 | ∙∙ | |
| R/L 090.4-10 R/L 090.4-16 R/L 090.4-20 | 0.1 0.1 0.1 | 1.5 1.5 1.5 | 3.5 3.5 3.5 | 24 30 34 | 10 16 20 | 0.3 0.3 0.3 | 1.5 4.0 1.5 4.0 1.5 4.0 | 4.0 4.0 4.0 | 45.∙∙∙ 640.∙ ∙∙∙.4 | |
| R/L 090.5-10 R/L 090.5-15 | 0.15 0.15 | 1.9 1.9 | 4.4 4.4 | 25 30 | 10 15 | 0.5 0.5 | 1.8 5.0 1.8 5.0 | 5.0 5.0 | 6 0.∙∙∙ .5 | |
| R/L 090.5-20 R/L 090.5-25 | 0.15 0.15 | 1.9 1.9 | 4.4 4.4 | 35 40 | 20 25 | 0.5 0.5 | 1.8 5.0 1.8 5.0 | 5.0 5.0 | 65 ∙∙∙ | |
| R/L 090.6-15 | 0.15 | 2.3 | 5.3 | 30 | 15 | 0.5 | 1.8 6.0 | 6.0 | | |
| R/L 090.6-22 | 0.15 | 2.3 | 5.3 | 37 | 22 | 0.5 | 1.8 6.0 | 6.0 | 6.∙∙∙ 0.∙∙∙ ∙.6 | |
| R/L 090.6-25 R/L 090.6-30 | 0.15 0.15 | 2.3 2.3 | 5.3 5.3 | 40 45 | 25 30 | 0.5 0.5 | 1.8 6.0 1.8 6.0 | 6.0 6.0 | 67 66 ∙∙ |
R090.3-10/CN45F R090.3-10/CN45F 66
