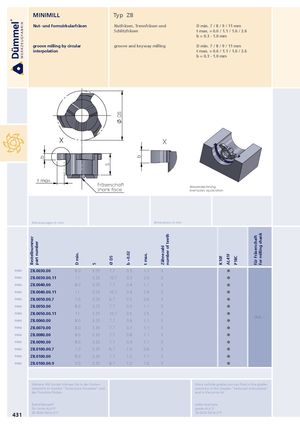

| Nut- und Formzirkularfräsen | Nutfräsen, Trennfräsen und | D min. 7 / 8 / 9 / 11 mm |
| Schlitzfräsen | t max. = 0.6 / 1.1 / 1.6 / 2.6 | |
| b = 0.3 - 1.0 mm | ||
| groove milling by circular | groove and keyway milling | D min. 7 / 8 / 9 / 11 mm |
interpolation t max. = 0.6 / 1.1 / 1.6 / 2.6 b = 0.3 - 1.0 mm
| b t max. X | Frä sh | DS S serschaft ank face | b | X | Beispielzeichnung exemplary application | ||
| Abmessungen in mm Bestellnummer part number D min. | S | Ø DS | b +0.02 | t max. | dimensions in mm Zähnezahl number of teeth | K10F AL41F P18C | für Fräserschaft for milling shank |
| Z8.0030.00 8.0 Z8.0030.00.11 11 Z8.0040.00 8.0 Z8.0040.00.11 11 Z8.0050.00.7 7.0 Z8.0050.00 8.0 Z8.0050.00.11 11 Z8.0060.00 8.0 Z8.0070.00 8.0 Z8.0080.00 8.0 Z8.0090.00 8.0 Z8.0100.00.7 7.0 | 3.25 3.25 3.25 3.25 3.25 3.25 3.25 3.25 3.35 3.35 3.35 3.35 | 7.7 10.7 7.7 10.7 6.7 7.7 10.7 7.7 7.7 7.7 7.7 6.7 | 0.3 0.3 0.4 0.4 0.5 0.5 0.5 0.6 0.7 0.8 0.9 1.0 | 1.1 2.6 1.1 2.6 0.6 1.1 2.6 1.1 1.1 1.1 1.1 0.6 | 3 3 3 3 3 3 3 3 3 3 3 3 | | ZH8.∙∙∙ |
| Z8.0100.00 8.0 Z8.0100.00.9 9.0 | 3.35 3.35 | 7.7 8.7 | 1.0 1.0 | 1.1 1.6 | 3 3 | |
