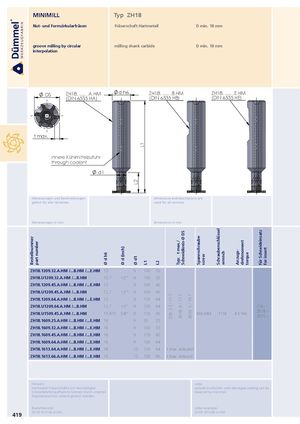

groove milling by circular milling shank carbide D min. 18 mm
interpolation
| DS | ZH18. ..... .A.HM | d h6 | ZH18. ..... .B.HM | ZH18. ..... .E.HM |
| (DIN 6535 HA) | (DIN 6535 HB) | (DIN 6535 HE) |
t max.
innere Kühlmittelzufuhr
through coolant
d1
Abmessungen und Beschreibungen dimensions and descriptions are gelten für alle Varianten valid for all versions
Abmessungen in mm dimensions in mm
| ZH18.1209.32.A.HM /...B.HM /...E.HM | 12 | 9 | 100 | 32 | |
| ZH18.U1209.32.A.HM /...B.HM | 12.7 | 1/2" | 9 | 100 | 32 |
| ZH18.1209.45.A.HM /...B.HM /...E.HM | 12 | 9 | 100 | 45 | |
| ZH18.U1209.45.A.HM /...B.HM | 12.7 | 1/2" | 9 | 100 | 45 |
| ZH18.1209.64.A.HM /...B.HM /...E.HM | 12 | 9 | 120 | 64 | |
| ZH18.U1209.64.A.HM /...B.HM | 12.7 | 1/2" | 9 | 120 | 64 |
| ZH18.U1509.45.A.HM /...B.HM | 15.875 | 5/8" | 9 | 110 | 4.5 Nm T15F M4-MM 45 |
| ZH18.1609.25.A.HM /...B.HM /...E.HM | 16 | 9 | 93 | 25 | |
| ZH18.1609.32.A.HM /...B.HM /...E.HM | 16 | 9 | 100 | 32 | |
| ZH18.1609.45.A.HM /...B.HM /...E.HM | 16 | 9 | 110 | 45 | |
| ZH18.1609.64.A.HM /...B.HM /...E.HM | 16 | 9 | 130 | 64 | |
| ZH18.1613.64.A.HM /...B.HM /...E.HM | 16 | 13 | 110 | t max. reduziert 64 | |
| ZH18.1613.66.A.HM /...B.HM /...E.HM | 16 | 13 | 130 | t max. reduced 66 |
Z18.∙∙∙ Z618.∙∙∙ Z620.∙∙∙
