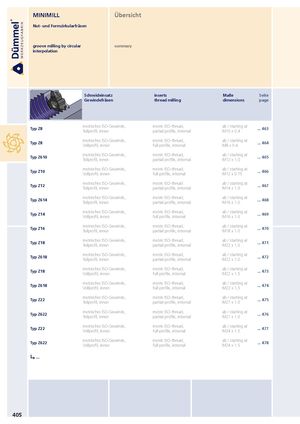

Каталог Duemmel общий 2022 - страница 410
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
groove milling by circular summary interpolation
| Schneideinsatz Gewindefräsen | inserts thread milling | Maße dimensions | Seite page |
| Typ Z8 metrisches ISO-Gewinde, Teilprofil, innen | metric ISO-thread, partial profile, internal | ab / starting at M10 x 0.4 | ... 463 |
| Typ Z8 metrisches ISO-Gewinde, Vollprofil, innen | metric ISO-thread, full profile, internal | ab / starting at M8 x 0.4 | ... 464 |
| Typ Z610 metrisches ISO-Gewinde, Teilprofil, innen | metric ISO-thread, partial profile, internal | ab / starting at M12 x 1.0 | ... 465 |
| Typ Z10 metrisches ISO-Gewinde, Vollprofil, innen | metric ISO-thread, full profile, internal | ab / starting at M12 x 0.75 | ... 466 |
| Typ Z12 metrisches ISO-Gewinde, Teilprofil, innen | metric ISO-thread partial profile, internal | ab / starting at M14 x 1.0 | ... 467 |
| Typ Z614 metrisches ISO-Gewinde, Teilprofil, innen | metric ISO-thread, partial profile, internal | ab / starting at M16 x 1.0 | ... 468 |
| Typ Z14 metrisches ISO-Gewinde, Vollprofil, innen | metric ISO-thread, full profile, internal | ab / starting at M16 x 1.0 | ... 469 |
| Typ Z16 metrisches ISO-Gewinde, Teilprofil, innen | metric ISO-thread, partial profile, internal | ab / starting at M18 x 1.0 | ... 470 |
| Typ Z18 metrisches ISO-Gewinde, Teilprofil, innen | metric ISO-thread, partial profile, internal | ab / starting at M22 x 1.0 | ... 471 |
| Typ Z618 metrisches ISO-Gewinde, Teilprofil, innen | metric ISO-thread, partial profile, internal | ab / starting at M22 x 1.0 | ... 472 |
| Typ Z18 metrisches ISO-Gewinde, Vollprofil, innen | metric ISO-thread, full profile, internal | ab / starting at M22 x 1.5 | ... 473 |
| Typ Z618 metrisches ISO-Gewinde, Vollprofil, innen | metric ISO-thread, full profile, internal | ab / starting at M22 x 1,5 | ... 474 |
| Typ Z22 metrisches ISO-Gewinde, Teilprofil, innen | metric ISO-thread, partial profile, internal | ab / starting at M27 x 1.0 | ... 475 |
| Typ Z622 metrisches ISO-Gewinde, Teilprofil, innen | metric ISO-thread, partial profile, internal | ab / starting at M27 x 1.0 | ... 476 |
| Typ Z22 metrisches ISO-Gewinde, Vollprofil, innen | metric ISO-thread, full profile, internal | ab / starting at M24 x 1.5 | ... 477 |
| Typ Z622 metrisches ISO-Gewinde, Vollprofil, innen ↳... | metric ISO-thread, full profile, internal | ab / starting at M24 x 1.5 | ... 478 |
