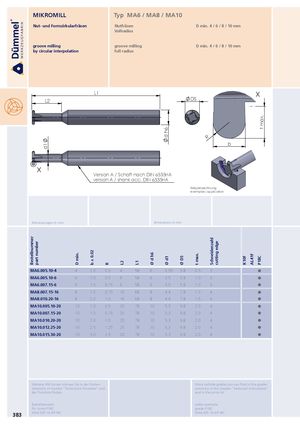

MIKROMILL Typ MA6 / MA8 / MA10
| Nut- und Formzirkularfräsen | Nutfräsen | D min. 4 / 6 / 8 / 10 mm |
| Vollradius | ||
| groove milling | groove milling | D min. 4 / 6 / 8 / 10 mm |
by circular interpolation full radius
| L1 | X | |||||||||
| L2 | DS | |||||||||
| d1 X | Ver ver | sion A sion A / | / Scha shank | ft nach acc. | DIN 65 DIN 653 | d h6 35HA 5HA | Beispielz exempl | b R eichnung ary application | t max. | |
| Abmessungen in mm Bestellnummer part number | D min. b ± 0.02 | R | L2 | L1 | dim Ø d h6 | ensions in Ø d1 | mm Ø DS | t max. | Schneidenzahl cutting edge | K10F AL41F P18C |
| MA6.005.10-4 | 4 1.0 | 0.5 | 4 | 58 | 6 | 2.55 | 3.8 | 0.5 | 3 | |
| MA6.005.10-6 | 6 1.0 | 0.5 | 6 | 58 | 6 | 3.5 | 5.8 | 1.0 | 3 | |
| MA6.007.15-6 | 6 1.5 | 0.75 | 6 | 58 | 6 | 3.5 | 5.8 | 1.0 | 3 | |
| MA8.007.15-16 | 8 1.5 | 0.75 | 16 | 68 | 8 | 4.4 | 7.8 | 1.5 | 4 | |
| MA8.010.20-16 | 8 2.0 | 1.0 | 16 | 68 | 8 | 4.4 | 7.8 | 1.5 | 4 | |
| MA10.005.10-20 | 10 1.0 | 0.5 | 20 | 78 | 10 | 5.3 | 9.8 | 2.0 | 4 | |
| MA10.007.15-20 | 10 1.5 | 0.75 | 20 | 78 | 10 | 5.3 | 9.8 | 2.0 | 4 | |
| MA10.010.20-20 | 10 2.0 | 1.0 | 20 | 78 | 10 | 5.3 | 9.8 | 2.0 | 4 | |
| MA10.012.25-20 | 10 2.5 | 1.25 | 20 | 78 | 10 | 5.3 | 9.8 | 2.0 | 4 | |
| MA10.015.30-20 | 10 3.0 | 1.5 | 20 | 78 | 10 | 5.3 | 9.8 | 2.0 | 4 | |
383 MA6.005.10-4/P18C MA6.005.10-4/P18C
