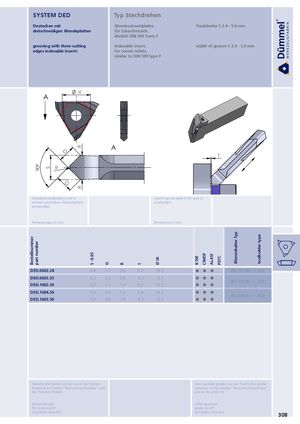

dreischneidigen Wendeplatten für Eckenfreistich, ähnlich DIN 509 Form F
grooving with three-cutting indexable insert, width of groove S 2.4 - 5.0 mm
edges indexable inserts for corner reliefs, similar to DIN 509 type F
A IK
A
G T
R
G
Wendeschneidplatten sind in inserts can be used in RH and LH rechten und linken Klemmhaltern toolholders verwendbar
Abmessungen in mm dimensions in mm
| | DED.0602.24 | 2.4 | 1.7 | 0.6 | 0.2 | 13.2 | | R/L .0.618. ∙∙∙∙ .2-D |
| R/L .207. ∙∙∙∙ .3-D | ||||||||
| DED.0603.33 | 3.3 | 2.3 | 0.6 | 0.3 | 13.2 | | ||
| R/L .0.738. ∙∙∙∙ .3-D | R/L .0.618. ∙∙∙∙ .3-D | |||||||
| DED.1002.30 | 3.0 | 2.1 | 1.0 | 0.2 | 13.2 | | ||
| DED.1004.50 | 5.0 | 3.6 | 1.0 | 0.4 | 13.2 | | ||
| R/L .0.618. ∙∙∙∙ .4-D | ||||||||
| DED.1603.50 | 5.0 | 3.6 | 1.6 | 0.3 | 13.2 | |
