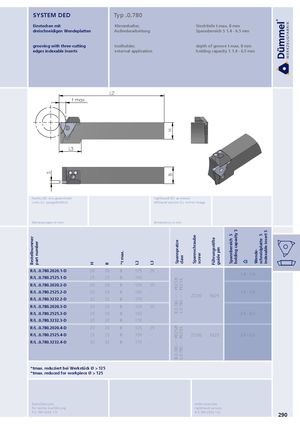

| grooving with three-cutting | toolholder, | depth of groove t max. 8 mm |
| edges indexable inserts | external application | holding capacity S 1.4 - 6.5 mm |
L2
t max.
L3
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L .0.780.2020.1-D | 20 | 20 | 8 | 125 | 25 | |
| 1.4 - 1.9 | ||||||
| R/L .0.780.2525.1-D | 25 | 25 | 8 | 150 | ||
| R/L .0.780.2020.2-D | 20 | 20 | 8 | 125 | 25 | |
| R/L .0.780.2525.2-D | 25 | 25 | 8 | 150 | - | 1.9 - 3.0 |
| 6325 ZT200 | ||||||
| R/L .0.780.3232.2-D | 32 | 32 | 8 | 170 | - | |
| R/L .0.780.2020.3-D | 20 | 20 | 8 | 125 | 25 | |
| R/L .0.780.2525.3-D | 25 | 25 | 8 | 150 | - | 2.9 - 4.0 |
| R/L .0.780.3232.3-D | 32 | 32 | 8 | 170 | - | |
| R/L .0.780.2020.4-D | 20 | 20 | 8 | 125 | 25 | |
| R/L .0.780.2525.4-D | 25 | 25 | 8 | 150 | - | 6325 ZT200 3.9 - 6.5 |
| R/L .0.780.3232.4-D | 32 | 32 | 8 | 170 | - |
*tmax. reduziert bei Werkstück Ø > 125 *tmax. reduced for workpiece Ø > 125
