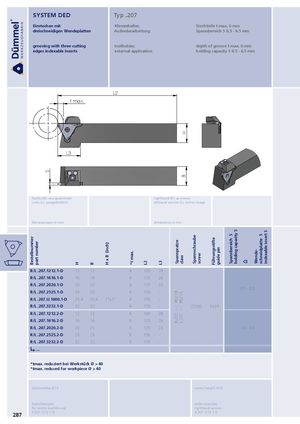

| grooving with three-cutting | toolholder, | depth of groove t max. 6 mm |
| edges indexable inserts | external application | holding capacity S 0.5 - 6.5 mm |
L2
t max.
L3
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L .207.1212.1-D | 12 | 12 | 4 | 100 | 28 |
| R/L .207.1616.1-D | 16 | 16 | 4 | 125 | 26 |
| R/L .207.2020.1-D | 20 | 20 | 4 | 125 | 23 |
| 0.5 - 2.0 | |||||
| R/L .207.2525.1-D | 25 | 25 | 4 | 150 | - |
| R/L .207.U.1000.1-D | 25.4 | 25.4 | 1"x1" 4 | 150 | - |
| R/L .207.3232.1-D | 32 | 32 | 4 | 170 | 6325 ZT200 - |
| R/L .207.1212.2-D | 12 | 12 | 6 | 100 | 28 |
| R/L .207.1616.2-D | 16 | 16 | 6 | 125 | 26 |
| R/L .207.2020.2-D | 20 | 20 | 6 | 125 | 1.9 - 3.0 23 |
| R/L .207.2525.2-D | 25 | 25 | 6 | 150 | - |
| R/L .207.3232.2-D | 32 | 32 | 6 | 170 | - |
*tmax. reduziert bei Werkstück Ø > 40 *tmax. reduced for workpiece Ø > 40
