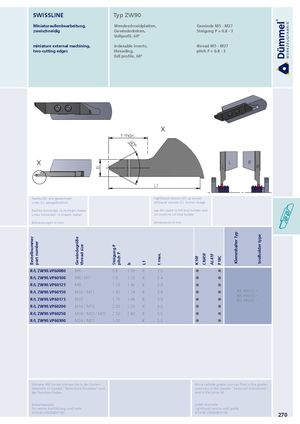

Каталог Duemmel общий 2022 - страница 275
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| Miniaturaußenbearbeitung, | Wendeschneidplatten, | Gewinde M5 - M27 |
| zweischneidig | Gewindedrehen, | Steigung P = 0.8 - 3 |
| Vollprofil, 60° | ||
| miniature external machining, | indexable inserts, | thread M5 - M27 |
| two-cutting edges | threading, | pitch P = 0.8 - 3 |
full profile, 60°
X
t max.
60
X L R
L R
L1
| Rechts (R): wie gezeichnet | righthand version (R): as shown |
| Links (L): spiegelbildlich | lefthand version (L): mirror image |
| Rechte Schneidpl. in rechtem Halter | use RH insert in RH tool holder and |
| Linke Schneidpl. in linkem Halter | LH insert in LH tool holder |
| Abmessungen in mm | dimensions in mm |
| R/L ZW90.VP60080 | M5 | 0.8 | 1.00 | 8 | 2.0 | | | |
| R/L ZW90.VP60100 | M6 / M7 | 1.0 | 1.10 | 8 | 2.4 | | | |
| R/L ZW90.VP60125 | M8 | 1.25 | 1.46 | 8 | 2.9 | | | |
| R/L ZW90.VP60150 | | | R/L HW10.∙∙∙ | |||||
| M10 / M11 | 1.50 | 1.74 | 8 | 3.4 | ||||
| R/L HW15.∙∙∙ | ||||||||
| R/L ZW90.VP60175 | M12 | 1.75 | 1.96 | 8 | 3.9 | | | R/L HW20.∙∙∙ |
| R/L ZW90.VP60200 | M14 / M16 | 2.00 | 2.20 | 8 | 4.0 | | | |
| R/L ZW90.VP60250 | M18 / M20 / M22 | 2.50 | 2.80 | 8 | 5.0 | | | |
| R/L ZW90.VP60300 | M24 / M27 | 3.00 | 8 | 5.0 | | |
RZW90.VP60080/P18C RZW90.VP60080/P18C 270
