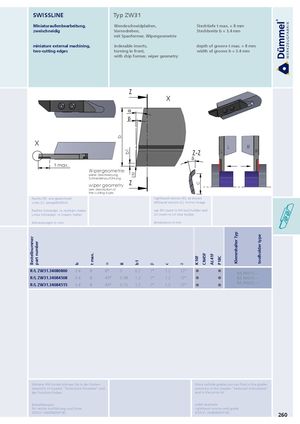

Каталог Duemmel общий 2022 - страница 265
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| zweischneidig | Vornedrehen, | Stechbreite b = 3.4 mm |
| mit Spanformer, Wipergeometrie | ||
| miniature external machining, | indexable inserts, | depth of groove t max. = 8 mm |
| two-cutting edges | turning in front, | width of groove b = 3.4 mm |
with chip former, wiper geometry
Z
X
D
E
X
L R
Z-Z L R
G t max. Wipergeometrie R siehe: Beschreibung
Schneidenausführung Z
wiper geometry
see: description of the cutting types
| Rechts (R): wie gezeichnet | righthand version (R): as shown |
| Links (L): spiegelbildlich | lefthand version (L): mirror image |
| Rechte Schneidpl. in rechtem Halter | use RH insert in RH tool holder and |
| Linke Schneidpl. in linkem Halter | LH insert in LH tool holder |
| Abmessungen in mm | dimensions in mm |
| R/L ZW31.34080800 | 3.4 | 8 | 8° | 0 | 0.2 | 1° | 1.2 | 12° | | | R/L HW10.∙∙∙ |
| R/L ZW31.34084508 | 3.4 | 8 | 45° | 0.08 | 1.2 | 1° | 1.2 | 12° | | | R/L HW15.∙∙∙ |
| R/L HW20.∙∙∙ | |||||||||||
| R/L ZW31.34084515 | 3.4 | 8 | 45° | 0.15 | 1.2 | 1° | 1.2 | 12° | | |
