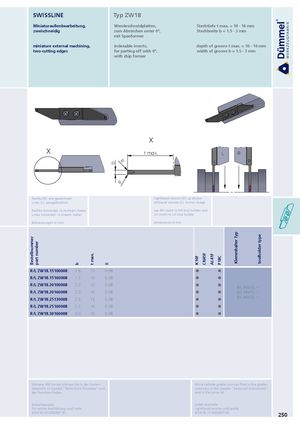

| zweischneidig | zum Abstechen unter 0°, | Stechbreite b = 1.5 - 3 mm |
| mit Spanformer | ||
| miniature external machining, | indexable inserts, | depth of groove t max. = 10 - 16 mm |
| two-cutting edges | for parting off with 0°, | width of groove b = 1.5 - 3 mm |
with chip former
X
X
t max. L R
R L R
R
| Rechts (R): wie gezeichnet | righthand version (R): as shown |
| Links (L): spiegelbildlich | lefthand version (L): mirror image |
| Rechte Schneidpl. in rechtem Halter | use RH insert in RH tool holder and |
| Linke Schneidpl. in linkem Halter | LH insert in LH tool holder |
| Abmessungen in mm | dimensions in mm |
| R/L ZW18.15100008 | 1.5 | 10 | 0.08 | | |
| R/L ZW18.15160008 | 1.5 | 16 | 0.08 | | |
| R/L ZW18.20100008 | 2.0 | 10 | 0.08 | | |
| R/L ZW18.20160008 | 2.0 | 16 | 0.08 | | |
| R/L ZW18.25130008 | 2.5 | 13 | 0.08 | | |
| R/L ZW18.25160008 | 2.5 | 16 | 0.08 | | |
| R/L ZW18.30160008 | 3.0 | 16 | 0.08 | | |
R/L HW10.∙∙∙ R/L HW15.∙∙∙ R/L HW20.∙∙∙
