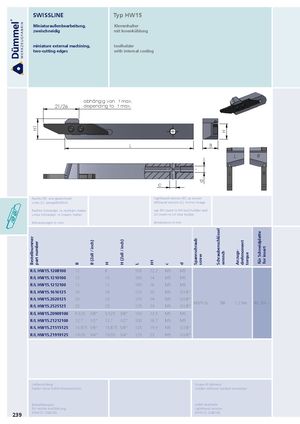

| Miniaturaußenbearbeitung, | Klemmhalter |
| zweischneidig | mit Innenkühlung |
| miniature external machining, | toolholder |
| two-cutting edges | with internal cooling |
abhängig von t max. 21/26 depending to t max.
L B
c
| Rechts (R): wie gezeichnet | righthand version (R): as shown |
| Links (L): spiegelbildlich | lefthand version (L): mirror image |
| Rechte Schneidpl. in rechtem Halter | use RH insert in RH tool holder and |
| Linke Schneidpl. in linkem Halter | LH insert in LH tool holder |
| Abmessungen in mm | dimensions in mm |
L R
L R
| R/L HW15.1208100 | 12 | 8 | 100 | 12.2 | M5 | M5 |
| R/L HW15.1210100 | 12 | 10 | 100 | 14 | M5 | M5 |
| R/L HW15.1212100 | 12 | 12 | 100 | 16 | M5 | M5 |
| R/L HW15.1616125 | 16 | 16 | 125 | 20 | M5 | G1/8” |
| R/L HW15.2020125 | 20 | 20 | 125 | 24 | M5 | G1/8” |
M3/9-SL T8F 1.2 Nm R/L ZW.∙∙∙
| R/L HW15.2525125 | 25 | 25 | 125 | 29 | M5 | G1/8” | ||
| R/L HW15.Z0909100 | 9.525 | 3/8” | 9.525 | 3/8” | 100 | 13.5 | M5 | M5 |
| R/L HW15.Z1212100 | 12.7 | 1/2” | 12.7 | 1/2” | 100 | 16.7 | M5 | M5 |
| R/L HW15.Z1515125 | 15.875 5/8” | 15.875 5/8” | 125 | 19.9 | M5 | G1/8” | ||
| R/L HW15.Z1919125 | 19.05 | 3/4” | 19.05 | 3/4” | 125 | 23 | M5 | G1/8” |
Lieferumfang: Scope of delivery: Halter ohne Kühlmittelanschluss Holder without coolant connector
239 RHW15.1208100 RHW15.1208100
