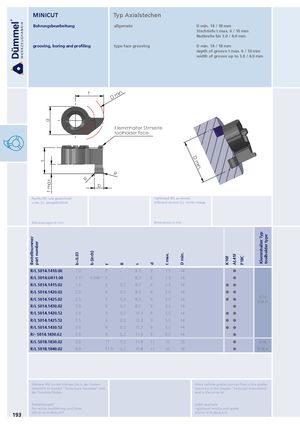

Каталог Duemmel общий 2022 - страница 198
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| Bohrungsbearbeitung | allgemein | D min. 14 / 18 mm |
| Stechtiefe t max. 6 / 10 mm | ||
| Nutbreite bis 3.0 / 4.0 mm | ||
| grooving, boring and profiling | type face grooving | D min. 14 / 18 mm |
depth of groove t max. 6 / 10 mm width of groove up to 3.0 / 4.0 mm
f in.
D m
Klemmhalter Stirnseite
toolholder face
D
min.
R
R
b
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| Bestellnummer part number | b+0.03 | b (inch) | f | R | s | d | t max. | D min. | K10F AL41F | P18C | Klemmhalter Typ toolholder type |
| R/L S014.1410.00 | 1.0 | 9 | - | 8.3 | 9 | 1.5 | 14 | | |||
| R/L S014.U411.00 | 1.17 | 0.046 | " 9 | - | 8.3 | 9 | 1.5 | 14 | | ||
| R/L S014.1415.02 | 1.5 | 9 | 0.2 | 8.3 | 9 | 2.5 | 14 | | |||
| R/L S014.1420.02 | 2.0 | 9 | 0.2 | 8.3 | 9 | 3.0 | 14 | | |||
| R/L S014.1425.02 | 2.5 | 9 | 0.2 | 8.3 | 9 | 3.0 | 14 | | 614 614A | ||
| R/L S014.1430.02 | 3.0 | 9 | 0.2 | 8.3 | 9 | 3.0 | 14 | | . | ||
| R/L S014.1420.52 | 2.0 | 9 | 0.2 | 10.3 | 9 | 5.0 | 14 | | |||
| R/L S014.1425.52 | 2.5 | 9 | 0.2 | 10.3 | 9 | 5.0 | 14 | | |||
| R/L S014.1430.52 | 3.0 | 9 | 0.2 | 10.3 | 9 | 5.0 | 14 | | |||
| R/- S014.1430.62 | 3.0 | 9 | 0.2 | 11.3 | 9 | 6.0 | 14 | | |||
| R/L S018.1830.02 | 3.0 | 11 | 0.2 | 15.8 | 11 | 10 | 18 | | 618 | ||
| R/L S018.1840.02 | 4.0 | 11.5 | 0.2 | 15.8 | 11 | 10 | 18 | | 618.A |
