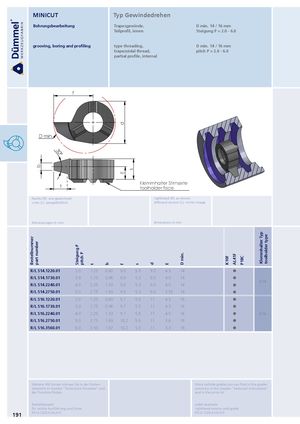

Bohrungsbearbeitung Trapezgewinde, D min. 14 / 16 mm
grooving, boring and profiling type threading, D min. 14 / 16 mm
trapezoidal thread, pitch P = 2.0 - 6.0 partial profile, internal
f
D min.
30
t Klemmhalter Stirnseite
toolholder face
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| Bestellnummer part number | Steigung P pitch P | t | b | f | s | d | E | D min. | K10F AL41F | P18C | Klemmhalter Typ toolholder type |
| R/L S14.1220.01 | 2.0 | 1.25 | 0.60 | 9.0 | 5.3 | 9.0 | 4.3 | 14 | | ||
| R/L S14.1730.01 | 3.0 | 1.75 | 0.96 | 9.0 | 5.3 | 9.0 | 4.0 | 14 | | ||
| R/L S14.2240.01 | 4.0 | 2.25 | 1.33 | 9.0 | 5.3 | 9.0 | 4.0 | 14 | | 614 | |
| R/L S14.2750.01 | 5.0 | 2.75 | 1.69 | 9.0 | 5.3 | 9.0 | 3.55 | 14 | | ||
| R/L S16.1220.01 | 2.0 | 1.25 | 0.60 | 9.7 | 5.5 | 11 | 4.5 | 16 | | ||
| R/L S16.1730.01 | 3.0 | 1.75 | 0.96 | 9.7 | 5.5 | 11 | 4.3 | 16 | | ||
| R/L S16.2240.01 | 4.0 | 2.25 | 1.33 | 9.7 | 5.5 | 11 | 4.0 | 16 | | 616 | |
| R/L S16.2750.01 | 5.0 | 2.75 | 1.69 | 10.2 | 5.5 | 11 | 3.6 | 16 | | ||
| R/L S16.3560.01 | 6.0 | 3.50 | 1.92 | 10.2 | 5.5 | 11 | 3.3 | 16 | |
191 RS14.1220.01AL41F RS14.1220.01AL41F
