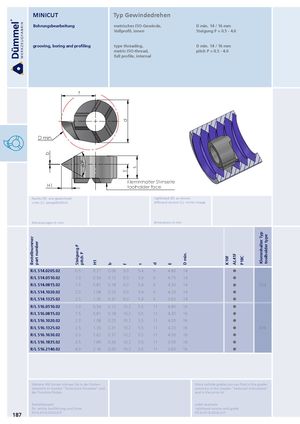

Bestellnummer part number b Steigung P 60°pitch P H1 b dEf s s d E D min. K10F AL41F P18C Klemmhalter Typ toolholder type MINICUT Typ Gewindedrehen Bohrungsbearbeitung metrisches ISO-Gewinde, D min. 14 / 16 mm Vollprofil, innen Steigung P = 0.5 - 4.0 grooving, boring and profiling type threading, D min. 14 / 16 mm metric ISO-thread, pitch P = 0.5 - 4.0 full profile, internal f D min. Klemmhalter Stirnseite H1 toolholder face Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image Abmessungen in mm dimensions in mm R/L S14.0205.02 0.5 0.27 0.06 9.0 5.4 9 4.80 14 R/L S14.0510.02 1.0 0.54 0.12 9.0 5.4 9 4.70 14 R/L S14.0815.02 1.5 0.81 0.18 9.0 5.4 9 4.30 14 614 R/L S14.1020.02 2.0 1.08 0.25 9.0 5.4 9 4.20 14 R/L S14.1325.02 2.5 1.35 0.31 9.0 5.4 9 3.65 14 R/L S16.0510.02 1.0 0.54 0.12 10.2 5.5 11 4.80 16 R/L S16.0815.02 1.5 0.81 0.18 10.2 5.5 11 4.30 16 R/L S16.1020.02 2.0 1.08 0.25 10.2 5.5 11 4.05 16 R/L S16.1325.02 2.5 1.35 0.31 10.2 5.5 11 4.20 16 616 R/L S16.1630.02 3.0 1.62 0.37 10.2 5.5 11 4.00 16 R/L S16.1835.02 3.5 1.89 0.43 10.2 5.5 11 3.90 16 R/L S16.2140.02 4.0 2.16 0.50 10.2 5.5 11 3.60 16 Weitere HM Sorten können Sie in der Sorten- More carbide grades you can find in the grades übersicht im Kapitel "Technische Hinweise" und summary in the chapter "technical instructions" der Preisliste finden. and in the price list. Bestellbeispiel: order-example: für rechte Ausführung und Sorte righthand version and grade 187 RS16.0510.02/AL41F RS16.0510.02/AL41F
