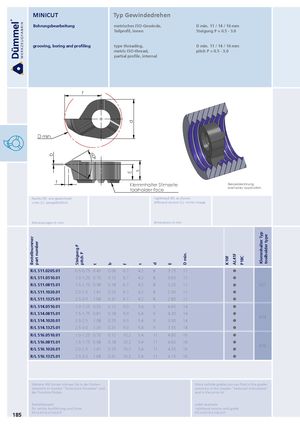

Bohrungsbearbeitung metrisches ISO-Gewinde, D min. 11 / 14 / 16 mm
grooving, boring and profiling type threading, D min. 11 / 14 / 16 mm
metric ISO-thread, pitch P = 0.5 - 3.0 partial profile, internal
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich f D min. b 60° t | d s E Klemmh toolhold | righth leftha alter St er face | and (R): as nd version irnseite | shown (L): mirror image Beispielzeichnun exemplary appli | g cation |
| Bestellnummer part number Steigung P pitch P t Abmessungen in mm | b f s | d dimen | E sions in m | D min. K10F AL41F P18C m | Klemmhalter Typ toolholder type |
| R/L S11.0205.01 0.5-0.75 0.43 | 0.06 6.7 4.2 | 8 | 3.75 | 11 | |
| R/L S11.0510.01 1.0-1.25 0.70 | 0.12 6.7 4.2 | 8 | 3.60 | 11 | |
| R/L S11.0815.01 1.5-1.75 0.98 | 0.18 6.7 4.2 | 8 | 3.20 | 11 | 611 |
| R/L S11.1020.01 2.0-2.5 1.41 R/L S11.1325.01 2.5-3.0 1.68 | 0.25 6.7 4.2 0.31 6.7 4.2 | 8 8 | 2.90 2.80 | 11 11 | |
| R/L S14.0510.01 1.0-1.25 0.55 R/L S14.0815.01 1.5-1.75 0.81 | 0.12 9.0 5.4 0.18 9.0 5.4 | 9 9 | 4.60 4.30 | 14 14 | 614 |
| R/L S14.1020.01 2.0-2.5 1.08 R/L S14.1325.01 2.5-3.0 1.35 | 0.25 9.0 5.4 0.31 9.0 5.4 | 9 9 | 3.90 3.55 | 14 14 | |
| R/L S16.0510.01 1.0-1.25 0.70 | 0.12 10.2 5.4 | 11 | 4.80 | 16 | |
| R/L S16.0815.01 1.5-1.75 0.98 | 0.18 10.2 5.4 | 11 | 4.60 | 16 | 616 |
| R/L S16.1020.01 2.0-2.5 1.41 | 0.25 10.2 5.4 | 11 | 4.35 | 16 | |
| R/L S16.1325.01 2.5-3.0 1.68 | 0.31 10.2 5.4 | 11 | 4.15 | 16 |
