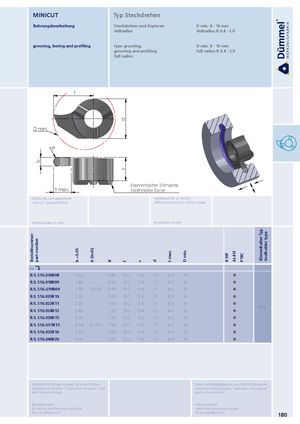

Каталог Duemmel общий 2022 - страница 185
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
grooving, boring and profiling type grooving, D min. 8 - 16 mm
grooving and profiling full radius R 0.4 - 2.0 full radius
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich f D min. b R t max. | d s K t | lemmh oolhold | right leftha alter S er fac | hand (R): as s nd version ( tirnseite e | hown L): mirro | r image | |
| Abmessungen in mm Bestellnummer part number b +0.05 | b (inch) R | f | s | dime d | nsions in mm t max. | D min. | K10F AL41F P18C Klemmhalter Typ toolholder type |
| ... ↴ R/L S16.016R08 1.60 R/L S16.018R09 1.80 | 0.80 0.90 | 10.2 10.2 | 5.4 5.4 | 11 11 | 4.3 4.3 | 16 16 | |
| R/L S16.U19R09 1.98 R/L S16.020R10 2.00 | 0.078" 0.99 1.00 | 10.2 10.2 | 5.4 5.4 | 11 11 | 4.3 4.3 | 16 16 | |
| R/L S16.022R11 2.20 | 1.10 | 10.2 | 5.4 | 11 | 4.3 | 16 | 616 |
| R/L S16.024R12 2.40 | 1.20 | 10.2 | 5.4 | 11 | 4.3 | 16 | |
| R/L S16.030R15 3.00 | 1.50 | 10.2 | 5.4 | 11 | 4.3 | 16 | |
| R/L S16.U31R15 3.18 | 0.125" 1.59 | 10.2 | 5.4 | 11 | 4.3 | 16 | |
| R/L S16.032R16 3.20 | 1.60 | 10.2 | 5.4 | 11 | 4.3 | 16 | |
| R/L S16.040R20 4.00 | 2.00 | 10.2 | 5.4 | 11 | 4.3 | 16 | |
RS16.016R08/AL41F RS16.016R08/AL41F 180
