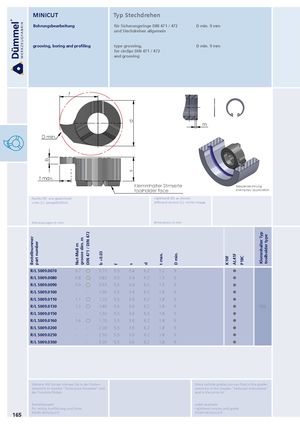

grooving, boring and profiling type grooving, D min. 9 mm

for circlips DIN 471 / 472 and grooving

Rechts (R): wie gezeichnet Links (L): spiegelbildlich f D min. b t max.		d s Kle to	mmh olhold	righthan lefthand alter Sti er face	d (R): as shown version (L): mirror image m rnseite Beispielzeichnung exemplary application
Bestellnummer part number Nut-Maß m groove dim. m DIN 471 / DIN 472 Abmessungen in mm	b +0.03 f	s	d	t max. dimensio	D min. K10F AL41F P18C Klemmhalter Typ toolholder type ns in mm
R/L S009.0070 0.7 R/L S009.0080 0.8 R/L S009.0090 0.9 R/L S009.0100 - - R/L S009.0110 1.1 R/L S009.0130 1.3 R/L S009.0150 - - R/L S009.0160 1.6 R/L S009.0200 - - R/L S009.0250 - - R/L S009.0300 - -	0.73 5.5 0.83 5.5 0.93 5.5 1.00 5.5 1.20 5.5 1.40 5.5 1.50 5.5 1.70 5.5 2.00 5.5 2.50 5.5 3.00 5.5	3.4 3.4 3.4 3.4 3.6 3.6 3.6 3.6 3.6 3.6 3.6	6.2 6.2 6.2 6.2 6.2 6.2 6.2 6.2 6.2 6.2 6.2	1.2 1.3 1.5 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8	9  609 9  9  9  9  9  9  9  9  9  9 
