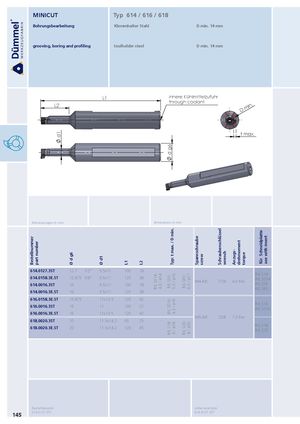

MINICUT Typ 614 / 616 / 618
Bohrungsbearbeitung Klemmhalter Stahl D min. 14 mm
grooving, boring and profiling toolholder steel D min. 14 mm
L1 innere Kühlmittelzufuhr
L2 through coolant in.
D m
t max.
Abmessungen in mm dimensions in mm
| 614.0127.3ST | 12.7 | 1/2" 9.5x11 | 100 | 18 |
| 614.0158.3E.ST | 15.875 5/8" | 9.5x11 | 120 | 38 |
| 614.0016.3ST | 16 | 9.5x11 | 100 | 18 |
| 614.0016.3E.ST | 16 | 9.5x11 | 120 | 38 |
| 616.0158.3E.ST | 15.875 | 11x13.5 | 120 | 42 |
| 616.0016.3ST | 16 | 11 | 100 | 22 |
| 616.0016.3E.ST | 16 | 11x13.5 | 120 | 42 |
| 618.0020.3ST | 20 | 11.5x14.2 | 95 | 25 |
| 618.0020.3E.ST | 20 | 11.5x14.2 | 120 | 45 |
M4-MC
M5-MC
T15F
T20F
4.5 Nm
7.0 Nm
R/L S14 R/L S014 R/L S55 R/L S65
R/L S16 R/L S016
R/L S18 R/L S20
145 614.0127.3ST 614.0127.3ST
