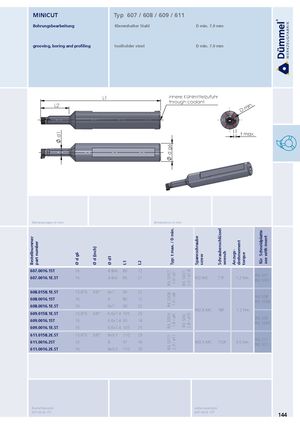

MINICUT Typ 607 / 608 / 609 / 611 Bohrungsbearbeitung Klemmhalter Stahl D min. 7.0 mm grooving, boring and profiling toolholder steel D min. 7.0 mm L1 innere Kühlmittelzufuhr through coolant L2 n. mi D t max. d1 d g6 Abmessungen in mm dimensions in mm Typ: t max. / D min. Schraubenschlüssel für Schneidplatte use with insert Spannschraube Bestellnummer drehmoment part number Ø d (inch) Anzugs- wrench torque Ø d g6 screw Ø d1 L1 L2 607.0016.1ST 16 4.8x6 80 12 2.0 / ø7.8 R/L S007: R/L S007: 1.0 / ø7 R/L S07 607.0016.1E.ST 16 4.8x6 85 21 M2-MC T7F 1.2 Nm R/L S007 608.0158.1E.ST 15.875 5/8" 6x7 90 22 R/L S008: 1.0 / ø8 R/L S08 608.0016.1ST 16 6 80 12 R/L S008 608.0016.1E.ST 16 6x7 90 22 M2.6-MC T8F 1.2 Nm 609.0158.1E.ST 15.875 5/8" 6.6x7.4 105 25 R/L S009: 2.8 / ø10 R/L S09: 1.8 /.ø9 R/L S09 609.0016.1ST 16 6.6x7.4 95 14 R/L S009 609.0016.1E.ST 16 6.6x7.4 105 25 611.0158.2E.ST 15.875 5/8" 8x9.5 110 29 R/L S011: 2.3 / ø11 R/L S11 611.0016.2ST 16 8 97 16 M3.5-MC T10F 3.0 Nm R/L S011 611.0016.2E.ST 16 8x9.5 110 29 Bestellbeispiel: order-example: 607.0016.1ST 607.0016.1ST 144
