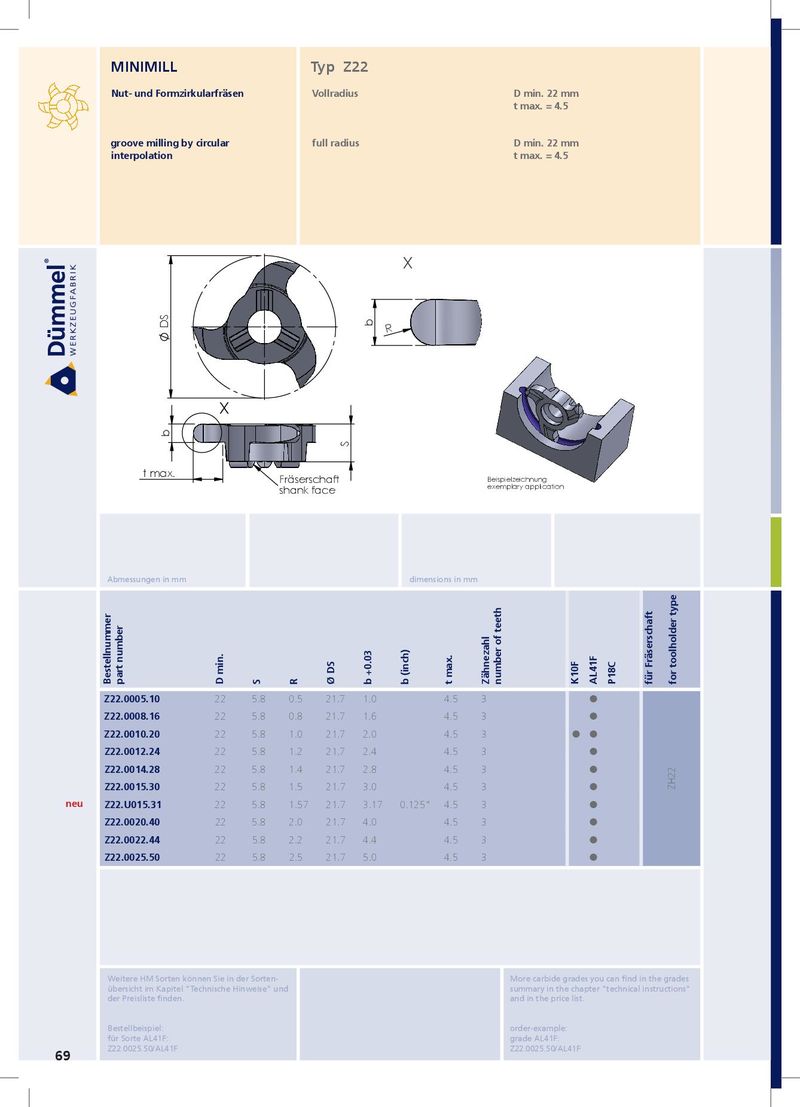

| Nut- und Formzirkularfräsen | Vollradius | D min. 22 mm |
| t max. = 4.5 | ||
| groove milling by circular | full radius | D min. 22 mm |
interpolation t max. = 4.5
X
b R
X
t max. Fräserschaft Beispielzeichnung shank face exemplary application
| Abmessungen in mm Bestellnummer part number | D min. | S | R | Ø DS | b +0.03 | dime b (inch) | nsions in m t max. | m Zähnezahl number of teeth | K10F AL41F | P18C | für Fräserschaft for toolholder type |
| Z22.0005.10 | 22 | 5.8 | 0.5 | 21.7 | 1.0 | 4.5 | 3 | | |||
| Z22.0008.16 | 22 | 5.8 | 0.8 | 21.7 | 1.6 | 4.5 | 3 | | |||
| Z22.0010.20 | 22 | 5.8 | 1.0 | 21.7 | 2.0 | 4.5 | 3 | | |||
| Z22.0012.24 | 22 | 5.8 | 1.2 | 21.7 | 2.4 | 4.5 | 3 | | |||
| Z22.0014.28 | 22 | 5.8 | 1.4 | 21.7 | 2.8 | 4.5 | 3 | | 22 | ||
| Z22.0015.30 | 22 | 5.8 | 1.5 | 21.7 | 3.0 | 4.5 | 3 | | ZH | ||
| Z22.U015.31 | 22 | 5.8 | 1.57 | 21.7 | 3.17 | 0.125" | 4.5 | 3 | | ||
| Z22.0020.40 | 22 | 5.8 | 2.0 | 21.7 | 4.0 | 4.5 | 3 | | |||
| Z22.0022.44 | 22 | 5.8 | 2.2 | 21.7 | 4.4 | 4.5 | 3 | | |||
| Z22.0025.50 | 22 | 5.8 | 2.5 | 21.7 | 5.0 | 4.5 | 3 | |
Weitere HM Sorten können Sie in der Sorten- More carbide grades you can find in the grades übersicht im Kapitel "Technische Hinweise" und summary in the chapter "technical instructions" der Preisliste finden. and in the price list.
