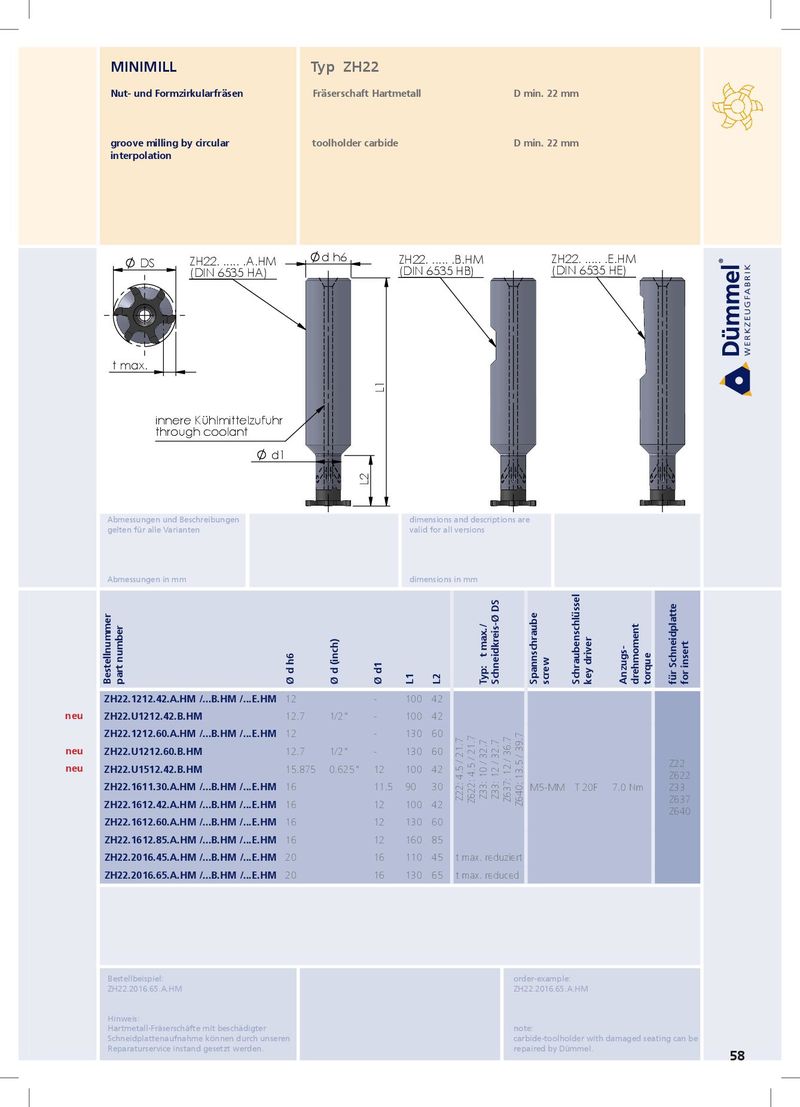

groove milling by circular toolholder carbide D min. 22 mm
interpolation
| DS | ZH22. ..... .A.HM | d h6 | ZH22. ..... .B.HM | ZH22. ..... .E.HM |
| (DIN 6535 HA) | (DIN 6535 HB) | (DIN 6535 HE) |
t max.
innere Kühlmittelzufuhr
through coolant
d1
Abmessungen und Beschreibungen dimensions and descriptions are gelten für alle Varianten valid for all versions
Abmessungen in mm dimensions in mm
Bestellnummer part number Typ: t max./ Schneidkr Spannschraube scr Schraubenschlüssel key driver Anzugs- dr für Schneidplatte for insert
| ZH22.1212.42.A.HM /...B.HM /...E.HM | 12 | - | 100 42 | ||||
| neu | ZH22.U1212.42.B.HM | 12.7 | 1/2" | - | 100 42 | ||
| ZH22.1212.60.A.HM /...B.HM /...E.HM | 12 | - | 130 60 | ||||
| neu | ZH22.U1212.60.B.HM | 12.7 | 1/2" | - | 130 60 | ||
| neu | Z22 | ||||||
| ZH22.U1512.42.B.HM | 15.875 | 0.625" | 12 | 100 42 | |||
| Z622 | |||||||
| ZH22.1611.30.A.HM /...B.HM /...E.HM | 16 | 11.5 | 90 | 30 | 7.0 Nm M5-MM T 20F Z33 | ||
| Z22: 4.5 / 21.7 Z622: 4.5 / 21.7 Z33: 10 / 32.7 Z33: 12 / 32.7 Z637: 12 / 36.7 Z640: 13.5 / 39.7 | Z637 | ||||||
| ZH22.1612.42.A.HM /...B.HM /...E.HM | 16 | 12 | 100 42 | ||||
| Z640 | |||||||
| ZH22.1612.60.A.HM /...B.HM /...E.HM | 16 | 12 | 130 60 | ||||
| ZH22.1612.85.A.HM /...B.HM /...E.HM | 16 | 12 | 160 85 | ||||
| ZH22.2016.45.A.HM /...B.HM /...E.HM | 20 | 16 | 110 45 | t max. reduziert | |||
| ZH22.2016.65.A.HM /...B.HM /...E.HM | 20 | 16 | 130 65 | t max. reduced |
Bestellbeispiel: order-example: ZH22.2016.65.A.HM ZH22.2016.65.A.HM
Reparaturservice instand gesetzt werden. repaired by Dümmel. 58
