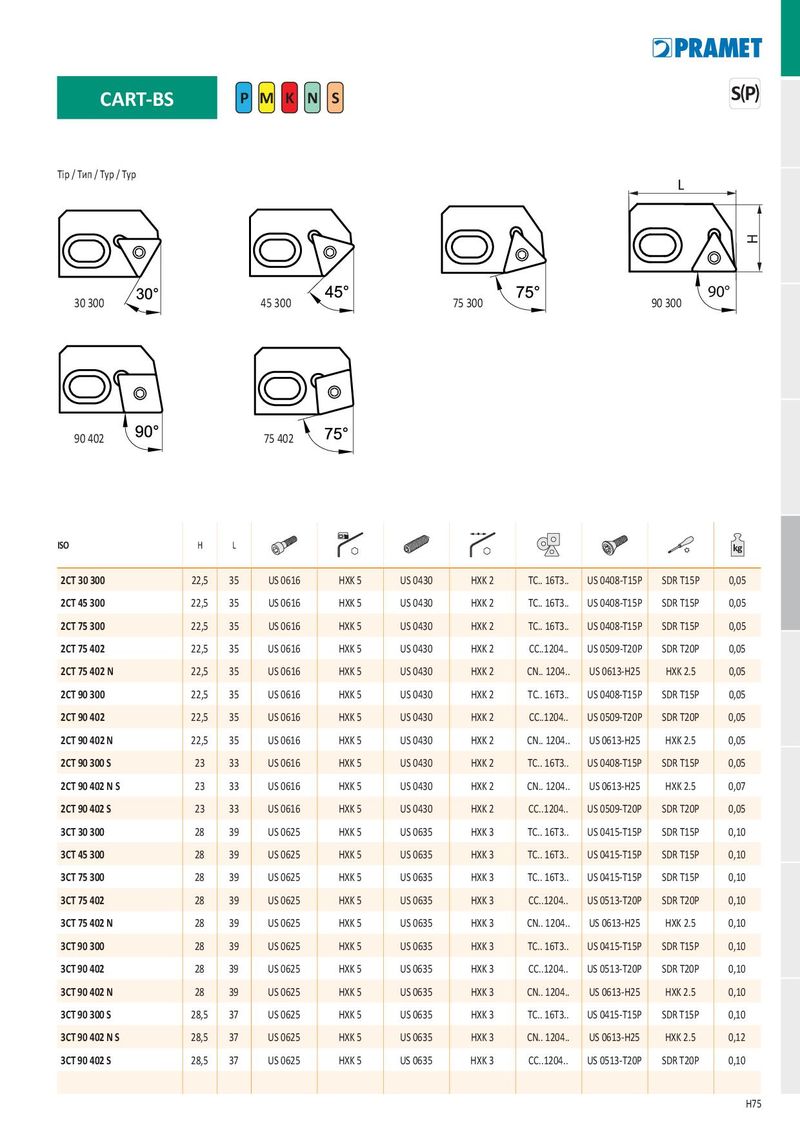

CART-BS P M K N S S P
Tip / Тип / Typ / Typ L
90°
30 300 45 300 75 300 90 300
90 402 75 402
| ISO | H | L | kg | |||||||
| 2CT 30 300 | 22,5 | 35 | US 0616 | HXK 5 | US 0430 | HXK 2 | TC.. 16T3.. | US 0408-T15P | SDR T15P | 0,05 |
| 2CT 45 300 | 22,5 | 35 | US 0616 | HXK 5 | US 0430 | HXK 2 | TC.. 16T3.. | US 0408-T15P | SDR T15P | 0,05 |
| 2CT 75 300 | 22,5 | 35 | US 0616 | HXK 5 | US 0430 | HXK 2 | TC.. 16T3.. | US 0408-T15P | SDR T15P | 0,05 |
| 2CT 75 402 | 22,5 | 35 | US 0616 | HXK 5 | US 0430 | HXK 2 | CC..1204.. | US 0509-T20P | SDR T20P | 0,05 |
| 2CT 75 402 N | 22,5 | 35 | US 0616 | HXK 5 | US 0430 | HXK 2 | CN.. 1204.. | US 0613-H25 | HXK 2.5 | 0,05 |
| 2CT 90 300 | 22,5 | 35 | US 0616 | HXK 5 | US 0430 | HXK 2 | TC.. 16T3.. | US 0408-T15P | SDR T15P | 0,05 |
| 2CT 90 402 | 22,5 | 35 | US 0616 | HXK 5 | US 0430 | HXK 2 | CC..1204.. | US 0509-T20P | SDR T20P | 0,05 |
| 2CT 90 402 N | 22,5 | 35 | US 0616 | HXK 5 | US 0430 | HXK 2 | CN.. 1204.. | US 0613-H25 | HXK 2.5 | 0,05 |
| 2CT 90 300 S | 23 | 33 | US 0616 | HXK 5 | US 0430 | HXK 2 | TC.. 16T3.. | US 0408-T15P | SDR T15P | 0,05 |
| 2CT 90 402 N S | 23 | 33 | US 0616 | HXK 5 | US 0430 | HXK 2 | CN.. 1204.. | US 0613-H25 | HXK 2.5 | 0,07 |
| 2CT 90 402 S | 23 | 33 | US 0616 | HXK 5 | US 0430 | HXK 2 | CC..1204.. | US 0509-T20P | SDR T20P | 0,05 |
| 3CT 30 300 | 28 | 39 | US 0625 | HXK 5 | US 0635 | HXK 3 | TC.. 16T3.. | US 0415-T15P | SDR T15P | 0,10 |
| 3CT 45 300 | 28 | 39 | US 0625 | HXK 5 | US 0635 | HXK 3 | TC.. 16T3.. | US 0415-T15P | SDR T15P | 0,10 |
| 3CT 75 300 | 28 | 39 | US 0625 | HXK 5 | US 0635 | HXK 3 | TC.. 16T3.. | US 0415-T15P | SDR T15P | 0,10 |
| 3CT 75 402 | 28 | 39 | US 0625 | HXK 5 | US 0635 | HXK 3 | CC..1204.. | US 0513-T20P | SDR T20P | 0,10 |
| 3CT 75 402 N | 28 | 39 | US 0625 | HXK 5 | US 0635 | HXK 3 | CN.. 1204.. | US 0613-H25 | HXK 2.5 | 0,10 |
| 3CT 90 300 | 28 | 39 | US 0625 | HXK 5 | US 0635 | HXK 3 | TC.. 16T3.. | US 0415-T15P | SDR T15P | 0,10 |
| 3CT 90 402 | 28 | 39 | US 0625 | HXK 5 | US 0635 | HXK 3 | CC..1204.. | US 0513-T20P | SDR T20P | 0,10 |
| 3CT 90 402 N | 28 | 39 | US 0625 | HXK 5 | US 0635 | HXK 3 | CN.. 1204.. | US 0613-H25 | HXK 2.5 | 0,10 |
| 3CT 90 300 S | 28,5 | 37 | US 0625 | HXK 5 | US 0635 | HXK 3 | TC.. 16T3.. | US 0415-T15P | SDR T15P | 0,10 |
| 3CT 90 402 N S | 28,5 | 37 | US 0625 | HXK 5 | US 0635 | HXK 3 | CN.. 1204.. | US 0613-H25 | HXK 2.5 | 0,12 |
| 3CT 90 402 S | 28,5 | 37 | US 0625 | HXK 5 | US 0635 | HXK 3 | CC..1204.. | US 0513-T20P | SDR T20P | 0,10 |
