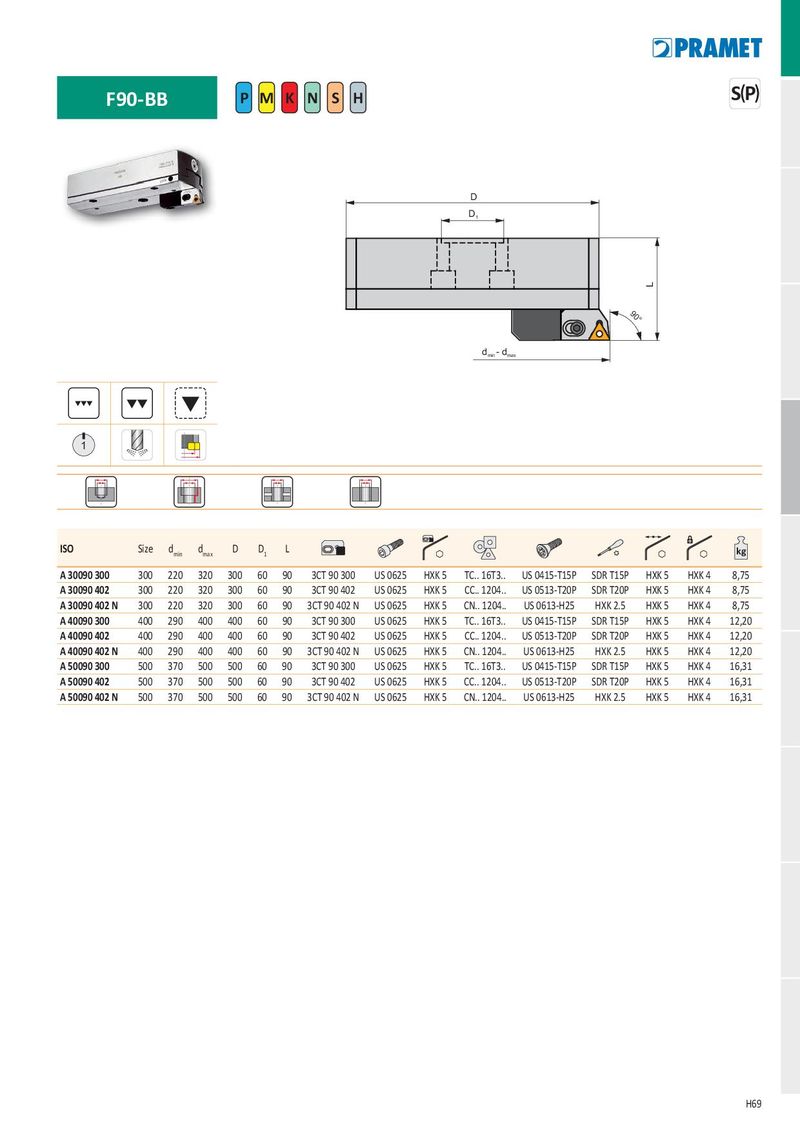

F90-BB P M K N S H S P
D D 1
90°
d - d min max
1
| ISO | Size | dmin | dmax | D | D1 | L | kg | ||||||||
| A 30090 300 | 300 | 220 | 320 | 300 | 60 | 90 | 3CT 90 300 | US 0625 | HXK 5 | TC.. 16T3.. | US 0415-T15P | SDR T15P | HXK 5 | HXK 4 | 8,75 |
| A 30090 402 | 300 | 220 | 320 | 300 | 60 | 90 | 3CT 90 402 | US 0625 | HXK 5 | CC.. 1204.. | US 0513-T20P | SDR T20P | HXK 5 | HXK 4 | 8,75 |
| A 30090 402 N | 300 | 220 | 320 | 300 | 60 | 90 | 3CT 90 402 N | US 0625 | HXK 5 | CN.. 1204.. | US 0613-H25 | HXK 2.5 | HXK 5 | HXK 4 | 8,75 |
| A 40090 300 | 400 | 290 | 400 | 400 | 60 | 90 | 3CT 90 300 | US 0625 | HXK 5 | TC.. 16T3.. | US 0415-T15P | SDR T15P | HXK 5 | HXK 4 | 12,20 |
| A 40090 402 | 400 | 290 | 400 | 400 | 60 | 90 | 3CT 90 402 | US 0625 | HXK 5 | CC.. 1204.. | US 0513-T20P | SDR T20P | HXK 5 | HXK 4 | 12,20 |
| A 40090 402 N | 400 | 290 | 400 | 400 | 60 | 90 | 3CT 90 402 N | US 0625 | HXK 5 | CN.. 1204.. | US 0613-H25 | HXK 2.5 | HXK 5 | HXK 4 | 12,20 |
| A 50090 300 | 500 | 370 | 500 | 500 | 60 | 90 | 3CT 90 300 | US 0625 | HXK 5 | TC.. 16T3.. | US 0415-T15P | SDR T15P | HXK 5 | HXK 4 | 16,31 |
| A 50090 402 | 500 | 370 | 500 | 500 | 60 | 90 | 3CT 90 402 | US 0625 | HXK 5 | CC.. 1204.. | US 0513-T20P | SDR T20P | HXK 5 | HXK 4 | 16,31 |
| A 50090 402 N | 500 | 370 | 500 | 500 | 60 | 90 | 3CT 90 402 N | US 0625 | HXK 5 | CN.. 1204.. | US 0613-H25 | HXK 2.5 | HXK 5 | HXK 4 | 16,31 |
