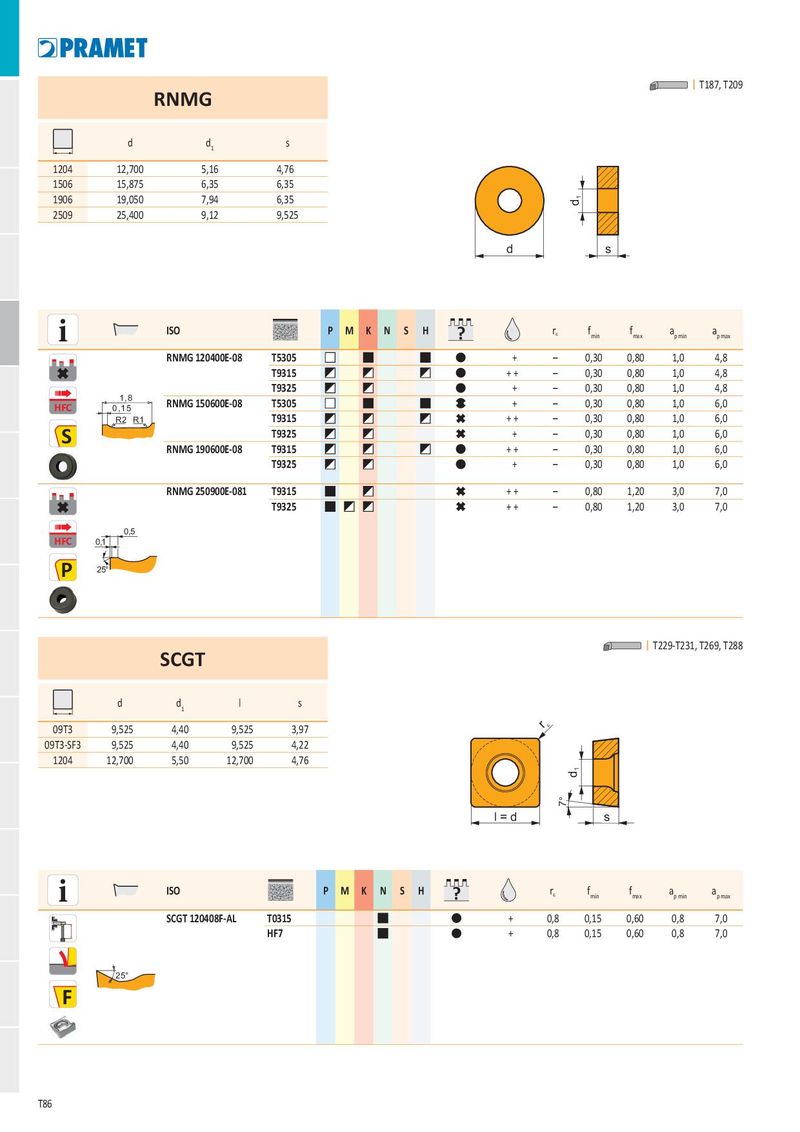

RNMG I T187, T209
| RNMG | ||
| d d1 | s | |
| 1204 | 12,700 5,16 | 4,76 |
| 1506 | 15,875 6,35 | 6,35 |
| 1906 | 19,050 7,94 | 6,35 |
| 2509 | 25,400 9,12 | 9,525 |
d s
| i | ISO | P | M K N S H | ? | re | fmin | fmax | ap min | ap max | |||
| RNMG 120400E-08 | T5305 | + | – | 0,30 | 0,80 | 1,0 | 4,8 | |||||
| T9315 | + + | – | 0,30 | 0,80 | 1,0 | 4,8 | ||||||
| T9325 | + | – | 0,30 | 0,80 | 1,0 | 4,8 | ||||||
| HFC | 0,15 1,8 | RNMG 150600E-08 | T5305 | + | – | 0,30 | 0,80 | 1,0 | 6,0 | |||
| R2 R1 | T9315 | + + | – | 0,30 | 0,80 | 1,0 | 6,0 | |||||
| S | T9325 | + | – | 0,30 | 0,80 | 1,0 | 6,0 | |||||
| RNMG 190600E-08 | T9315 | + + | – | 0,30 | 0,80 | 1,0 | 6,0 | |||||
| T9325 | + | – | 0,30 | 0,80 | 1,0 | 6,0 | ||||||
| RNMG 250900E-081 | T9315 | + + | – | 0,80 | 1,20 | 3,0 | 7,0 | |||||
| T9325 | + + | – | 0,80 | 1,20 | 3,0 | 7,0 | ||||||
| HFC P | 25° 0,5 0,1 |
SCGT I T229-T231, T269, T288
| SCGT | ||||
| d | d1 | l | s | |
| 09T3 | 9,525 | 4,40 | 9,525 | 3,97 |
| 09T3-SF3 | 9,525 | 4,40 | 9,525 | 4,22 |
| 1204 | 12,700 | 5,50 | 12,700 | 4,76 |
r
7° l = d s
i
| ISO | PMKNSH | ? | r | f | f | a | a | ||
| e | min | max | p min | p max | |||||
| SCGT 120408F-AL | T0315 | + | 0,8 | 0,15 | 0,60 | 0,8 | 7,0 | ||
| HF7 | + | 0,8 | 0,15 | 0,60 | 0,8 | 7,0 |
25°
