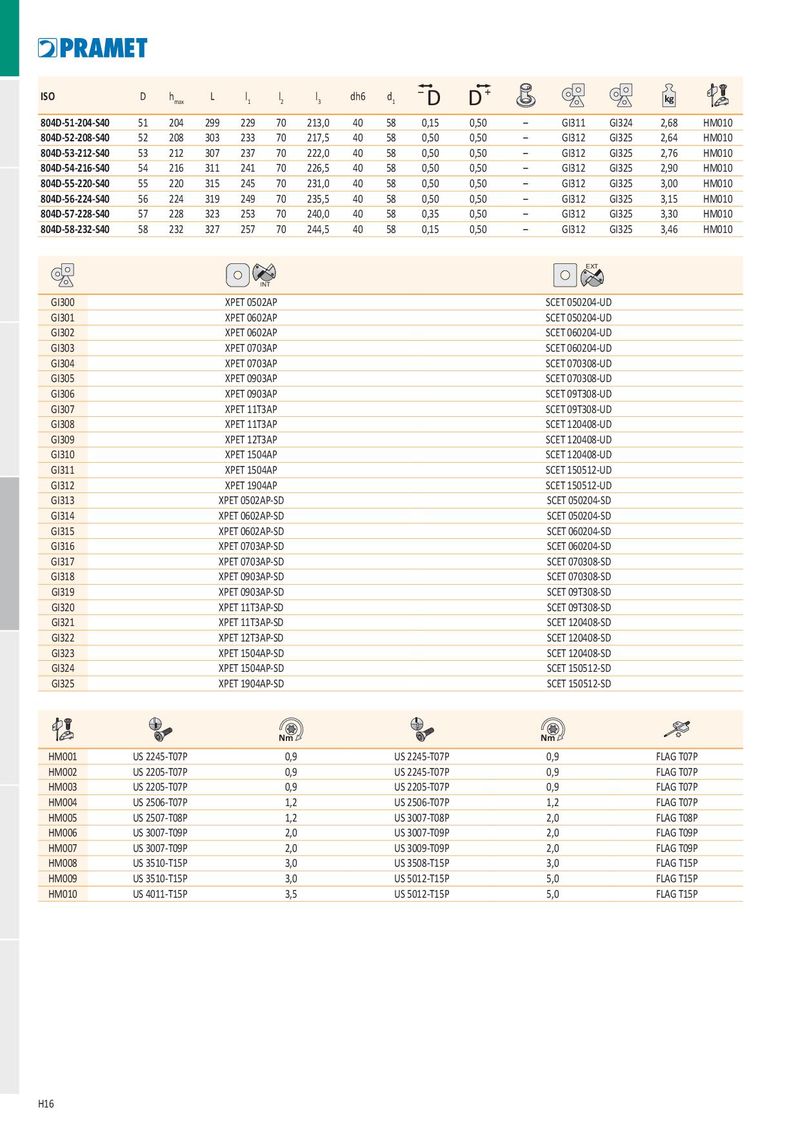

| ISO | D | hmax | L | l1 | l2 | l3 | dh6 | d1 | D | + D | kg | ||||
| 804D-51-204-S40 | 51 | 204 | 299 | 229 | 70 | 213,0 | 40 | 58 | 0,15 | 0,50 | – | GI311 | GI324 | 2,68 | HM010 |
| 804D-52-208-S40 | 52 | 208 | 303 | 233 | 70 | 217,5 | 40 | 58 | 0,50 | 0,50 | – | GI312 | GI325 | 2,64 | HM010 |
| 804D-53-212-S40 | 53 | 212 | 307 | 237 | 70 | 222,0 | 40 | 58 | 0,50 | 0,50 | – | GI312 | GI325 | 2,76 | HM010 |
| 804D-54-216-S40 | 54 | 216 | 311 | 241 | 70 | 226,5 | 40 | 58 | 0,50 | 0,50 | – | GI312 | GI325 | 2,90 | HM010 |
| 804D-55-220-S40 | 55 | 220 | 315 | 245 | 70 | 231,0 | 40 | 58 | 0,50 | 0,50 | – | GI312 | GI325 | 3,00 | HM010 |
| 804D-56-224-S40 | 56 | 224 | 319 | 249 | 70 | 235,5 | 40 | 58 | 0,50 | 0,50 | – | GI312 | GI325 | 3,15 | HM010 |
| 804D-57-228-S40 | 57 | 228 | 323 | 253 | 70 | 240,0 | 40 | 58 | 0,35 | 0,50 | – | GI312 | GI325 | 3,30 | HM010 |
| 804D-58-232-S40 | 58 | 232 | 327 | 257 | 70 | 244,5 | 40 | 58 | 0,15 | 0,50 | – | GI312 | GI325 | 3,46 | HM010 |
| INT | EXT | |
| GI300 | XPET 0502AP | SCET 050204-UD |
| GI301 | XPET 0602AP | SCET 050204-UD |
| GI302 | XPET 0602AP | SCET 060204-UD |
| GI303 | XPET 0703AP | SCET 060204-UD |
| GI304 | XPET 0703AP | SCET 070308-UD |
| GI305 | XPET 0903AP | SCET 070308-UD |
| GI306 | XPET 0903AP | SCET 09T308-UD |
| GI307 | XPET 11T3AP | SCET 09T308-UD |
| GI308 | XPET 11T3AP | SCET 120408-UD |
| GI309 | XPET 12T3AP | SCET 120408-UD |
| GI310 | XPET 1504AP | SCET 120408-UD |
| GI311 | XPET 1504AP | SCET 150512-UD |
| GI312 | XPET 1904AP | SCET 150512-UD |
| GI313 | XPET 0502AP-SD | SCET 050204-SD |
| GI314 | XPET 0602AP-SD | SCET 050204-SD |
| GI315 | XPET 0602AP-SD | SCET 060204-SD |
| GI316 | XPET 0703AP-SD | SCET 060204-SD |
| GI317 | XPET 0703AP-SD | SCET 070308-SD |
| GI318 | XPET 0903AP-SD | SCET 070308-SD |
| GI319 | XPET 0903AP-SD | SCET 09T308-SD |
| GI320 | XPET 11T3AP-SD | SCET 09T308-SD |
| GI321 | XPET 11T3AP-SD | SCET 120408-SD |
| GI322 | XPET 12T3AP-SD | SCET 120408-SD |
| GI323 | XPET 1504AP-SD | SCET 120408-SD |
| GI324 | XPET 1504AP-SD | SCET 150512-SD |
| GI325 | XPET 1904AP-SD | SCET 150512-SD |
| Nm | Nm | ||||
| HM001 | US 2245-T07P | 0,9 | US 2245-T07P | 0,9 | FLAG T07P |
| HM002 | US 2205-T07P | 0,9 | US 2245-T07P | 0,9 | FLAG T07P |
| HM003 | US 2205-T07P | 0,9 | US 2205-T07P | 0,9 | FLAG T07P |
| HM004 | US 2506-T07P | 1,2 | US 2506-T07P | 1,2 | FLAG T07P |
| HM005 | US 2507-T08P | 1,2 | US 3007-T08P | 2,0 | FLAG T08P |
| HM006 | US 3007-T09P | 2,0 | US 3007-T09P | 2,0 | FLAG T09P |
| HM007 | US 3007-T09P | 2,0 | US 3009-T09P | 2,0 | FLAG T09P |
| HM008 | US 3510-T15P | 3,0 | US 3508-T15P | 3,0 | FLAG T15P |
| HM009 | US 3510-T15P | 3,0 | US 5012-T15P | 5,0 | FLAG T15P |
| HM010 | US 4011-T15P | 3,5 | US 5012-T15P | 5,0 | FLAG T15P |
