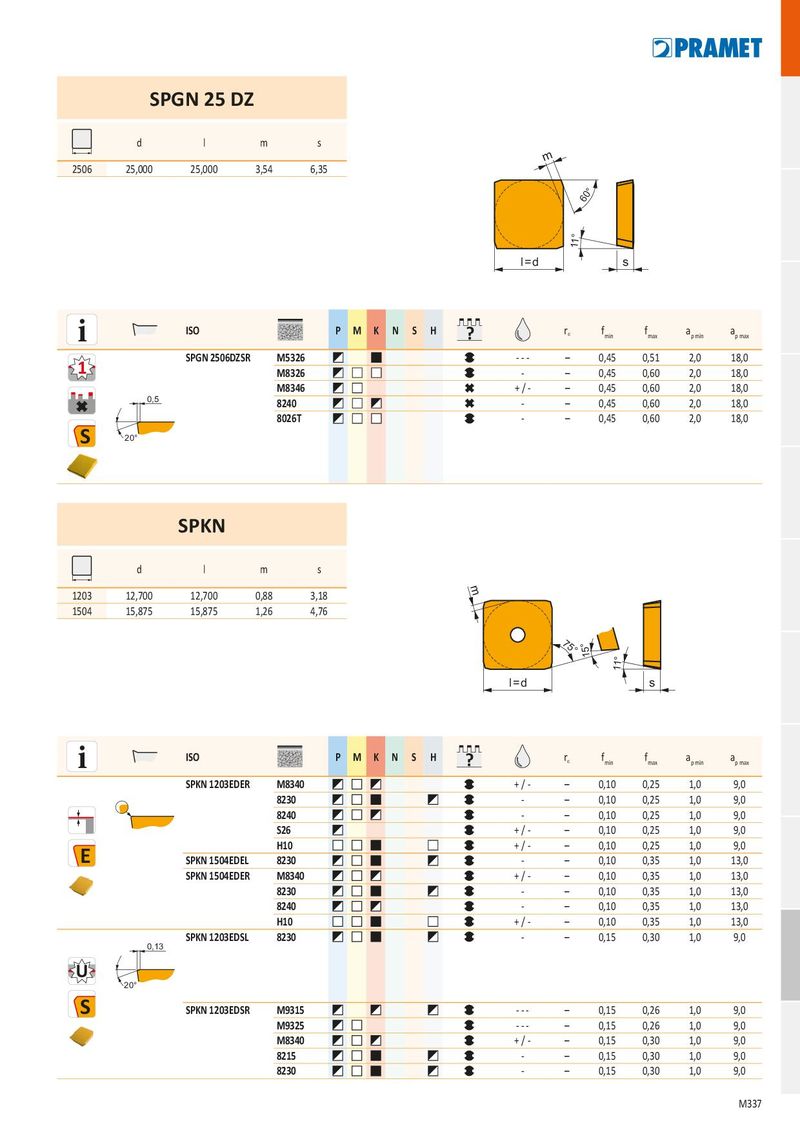

SPGN 25 DZ
| d | l | m | s | ||
| 2506 | 25,000 | 25,000 | 3,54 | 6,35 |
m
l=d
60°
11° s
| i | ISO | P M K | N S H | ? | re | fmin | fmax | ap min | ap max | |||
| SPGN 2506DZSR | M5326 | - - - | – | 0,45 | 0,51 | 2,0 | 18,0 | |||||
| 1 | M8326 | - | – | 0,45 | 0,60 | 2,0 | 18,0 | |||||
| M8346 | +/- | – | 0,45 | 0,60 | 2,0 | 18,0 | ||||||
| 0,5 | 8240 | - | – | 0,45 | 0,60 | 2,0 | 18,0 | |||||
| S | 20° | 8026T | - | – | 0,45 | 0,60 | 2,0 | 18,0 |
SPKN
| d | l | m | s | ||
| 1203 | 12,700 | 12,700 | 0,88 | 3,18 | |
| 1504 | 15,875 | 15,875 | 1,26 | 4,76 |
m
l=d
75°
15° 11° s
| i | ISO | P M K N S H | ? | re | fmin | fmax | ap min | ap max | |||
| SPKN 1203EDER | M8340 | +/- | – | 0,10 | 0,25 | 1,0 | 9,0 | ||||
| 8230 | - | – | 0,10 | 0,25 | 1,0 | 9,0 | |||||
| 8240 | - | – | 0,10 | 0,25 | 1,0 | 9,0 | |||||
| S26 | +/- | – | 0,10 | 0,25 | 1,0 | 9,0 | |||||
| H10 | +/- | – | 0,10 | 0,25 | 1,0 | 9,0 | |||||
| E | SPKN 1504EDEL | 8230 | - | – | 0,10 | 0,35 | 1,0 | 13,0 | |||
| SPKN 1504EDER | M8340 | +/- | – | 0,10 | 0,35 | 1,0 | 13,0 | ||||
| 8230 | - | – | 0,10 | 0,35 | 1,0 | 13,0 | |||||
| 8240 | - | – | 0,10 | 0,35 | 1,0 | 13,0 | |||||
| H10 | +/- | – | 0,10 | 0,35 | 1,0 | 13,0 | |||||
| 0,13 | SPKN 1203EDSL | 8230 | - | – | 0,15 | 0,30 | 1,0 | 9,0 | |||
| 20° | |||||||||||
| S | SPKN 1203EDSR | M9315 | - - - | – | 0,15 | 0,26 | 1,0 | 9,0 | |||
| M9325 | - - - | – | 0,15 | 0,26 | 1,0 | 9,0 | |||||
| M8340 | +/- | – | 0,15 | 0,30 | 1,0 | 9,0 | |||||
| 8215 | - | – | 0,15 | 0,30 | 1,0 | 9,0 | |||||
| 8230 | - | – | 0,15 | 0,30 | 1,0 | 9,0 |
