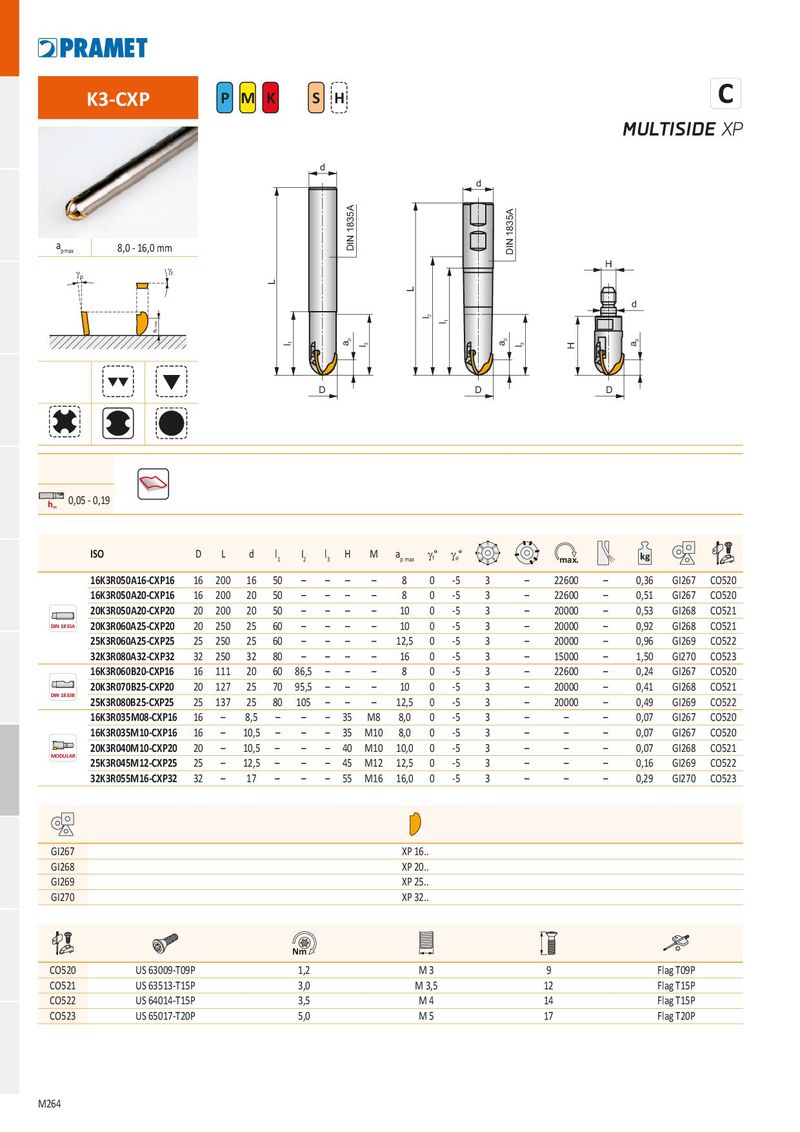

K3-CXP P M K S H
d
MULTISIDE XP
d
a 8,0 - 16,0 mm pmax g g p f
H
d
D D D
0,05 - 0,19 h m
| ISO | D | L | d | l1 | I2 | l3 | H | M | ap max | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | |||||
| 16K3R050A16-CXP16 | 16 | 200 | 16 | 50 | – | – | – | – | 8 | 0 | -5 | 3 | – | 22600 | – | 0,36 | GI267 | CO520 | |
| 16K3R050A20-CXP16 | 16 | 200 | 20 | 50 | – | – | – | – | 8 | 0 | -5 | 3 | – | 22600 | – | 0,51 | GI267 | CO520 | |
| 20K3R050A20-CXP20 | 20 | 200 | 20 | 50 | – | – | – | – | 10 | 0 | -5 | 3 | – | 20000 | – | 0,53 | GI268 | CO521 | |
| DIN 1835A | 20K3R060A25-CXP20 | 20 | 250 | 25 | 60 | – | – | – | – | 10 | 0 | -5 | 3 | – | 20000 | – | 0,92 | GI268 | CO521 |
| 25K3R060A25-CXP25 | 25 | 250 | 25 | 60 | – | – | – | – | 12,5 | 0 | -5 | 3 | – | 20000 | – | 0,96 | GI269 | CO522 | |
| 32K3R080A32-CXP32 | 32 | 250 | 32 | 80 | – | – | – | – | 16 | 0 | -5 | 3 | – | 15000 | – | 1,50 | GI270 | CO523 | |
| 16K3R060B20-CXP16 | 16 | 111 | 20 | 60 | 86,5 | – | – | – | 8 | 0 | -5 | 3 | – | 22600 | – | 0,24 | GI267 | CO520 | |
| DIN 1835B | 20K3R070B25-CXP20 | 20 | 127 | 25 | 70 | 95,5 | – | – | – | 10 | 0 | -5 | 3 | – | 20000 | – | 0,41 | GI268 | CO521 |
| 25K3R080B25-CXP25 | 25 | 137 | 25 | 80 | 105 | – | – | – | 12,5 | 0 | -5 | 3 | – | 20000 | – | 0,49 | GI269 | CO522 | |
| 16K3R035M08-CXP16 | 16 | – | 8,5 | – | – | – | 35 | M8 | 8,0 | 0 | -5 | 3 | – | – | – | 0,07 | GI267 | CO520 | |
| 16K3R035M10-CXP16 | 16 | – | 10,5 | – | – | – | 35 | M10 | 8,0 | 0 | -5 | 3 | – | – | – | 0,07 | GI267 | CO520 | |
| MODULAR | 20K3R040M10-CXP20 | 20 | – | 10,5 | – | – | – | 40 | M10 | 10,0 | 0 | -5 | 3 | – | – | – | 0,07 | GI268 | CO521 |
| 25K3R045M12-CXP25 | 25 | – | 12,5 | – | – | – | 45 | M12 | 12,5 | 0 | -5 | 3 | – | – | – | 0,16 | GI269 | CO522 | |
| 32K3R055M16-CXP32 | 32 | – | 17 | – | – | – | 55 | M16 | 16,0 | 0 | -5 | 3 | – | – | – | 0,29 | GI270 | CO523 |
| GI267 | XP 16.. |
| GI268 | XP 20.. |
| GI269 | XP 25.. |
| GI270 | XP 32.. |
| Nm | |||||
| CO520 | US 63009-T09P | 1,2 | M 3 | 9 | FlagT09P |
| CO521 | US 63513-T15P | 3,0 | M 3,5 | 12 | FlagT15P |
| CO522 | US 64014-T15P | 3,5 | M 4 | 14 | FlagT15P |
| CO523 | US 65017-T20P | 5,0 | M 5 | 17 | FlagT20P |
