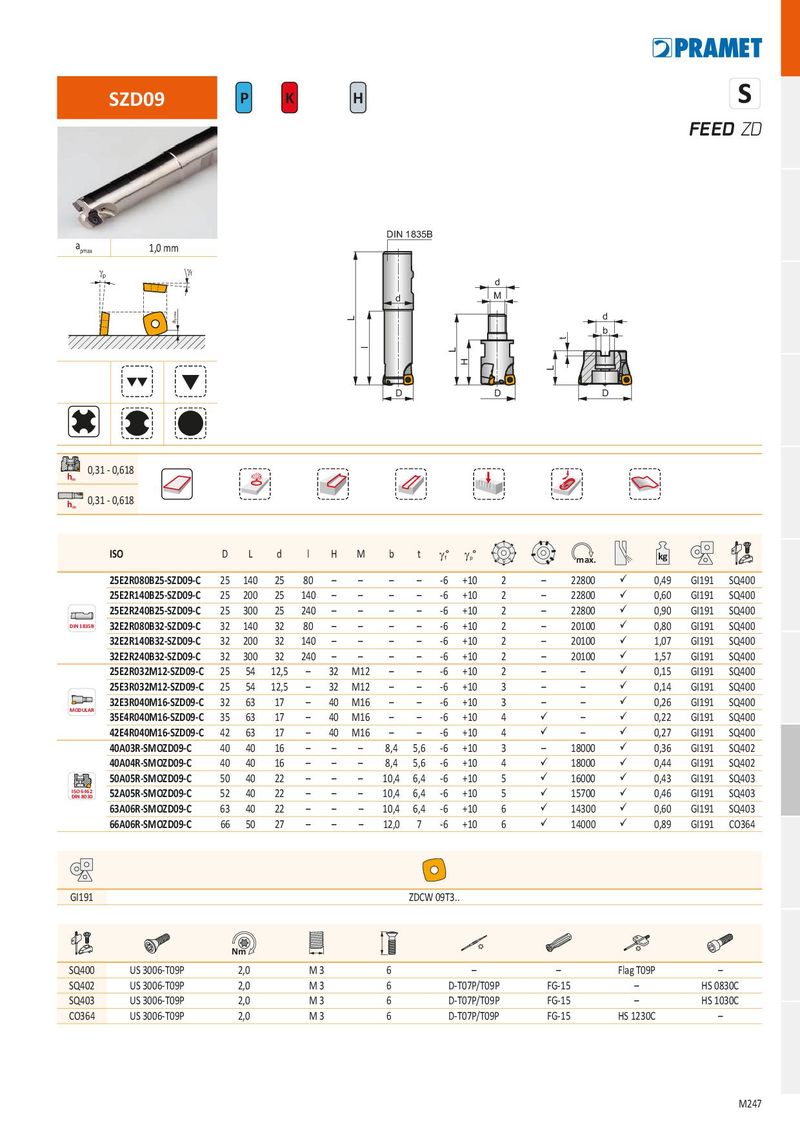

Общий каталог Dormer Pramet 2017 - страница 714

Предыдущая страница Следующая страница

Навигация

FEED ZD

a 1,0 mm pmax g g p f

DIN 1835B

d d M

d b

D D D

0,31 - 0,618 h m 0,31 - 0,618 h m

ISODLdlHMbtg° fg° p1 2 3 4 5 6 7 8max.kg
25E2R080B25-SZD09-C251402580––––-6+102–22800ü0,49GI191SQ400
25E2R140B25-SZD09-C2520025140––––-6+102–22800ü0,60GI191SQ400
25E2R240B25-SZD09-C2530025240––––-6+102–22800ü0,90GI191SQ400
DIN 1835B32E2R080B32-SZD09-C321403280––––-6+102–20100ü0,80GI191SQ400
32E2R140B32-SZD09-C3220032140––––-6+102–20100ü1,07GI191SQ400
32E2R240B32-SZD09-C3230032240––––-6+102–20100ü1,57GI191SQ400
25E2R032M12-SZD09-C255412,5–32M12––-6+102––ü0,15GI191SQ400
25E3R032M12-SZD09-C255412,5–32M12––-6+103––ü0,14GI191SQ400
MODULAR32E3R040M16-SZD09-C326317–40M16––-6+103––ü0,26GI191SQ400
35E4R040M16-SZD09-C356317–40M16––-6+104ü–ü0,22GI191SQ400
42E4R040M16-SZD09-C426317–40M16––-6+104ü–ü0,27GI191SQ400
40A03R-SMOZD09-C404016–––8,45,6-6+103–18000ü0,36GI191SQ402
40A04R-SMOZD09-C404016–––8,45,6-6+104ü18000ü0,44GI191SQ402
50A05R-SMOZD09-C504022–––10,46,4-6+105ü16000ü0,43GI191SQ403
ISO 6462 DIN 803052A05R-SMOZD09-C524022–––10,46,4-6+105ü15700ü0,46GI191SQ403
63A06R-SMOZD09-C634022–––10,46,4-6+106ü14300ü0,60GI191SQ403
66A06R-SMOZD09-C665027–––12,07-6+106ü14000ü0,89GI191CO364

GI191 ZDCW 09T3..

Nm
SQ400US 3006-T09P2,0M 36––FlagT09P–
SQ402US 3006-T09P2,0M 36D-T07P/T09PFG-15–HS 0830C
SQ403US 3006-T09P2,0M 36D-T07P/T09PFG-15–HS 1030C
CO364US 3006-T09P2,0M 36D-T07P/T09PFG-15HS 1230C–
