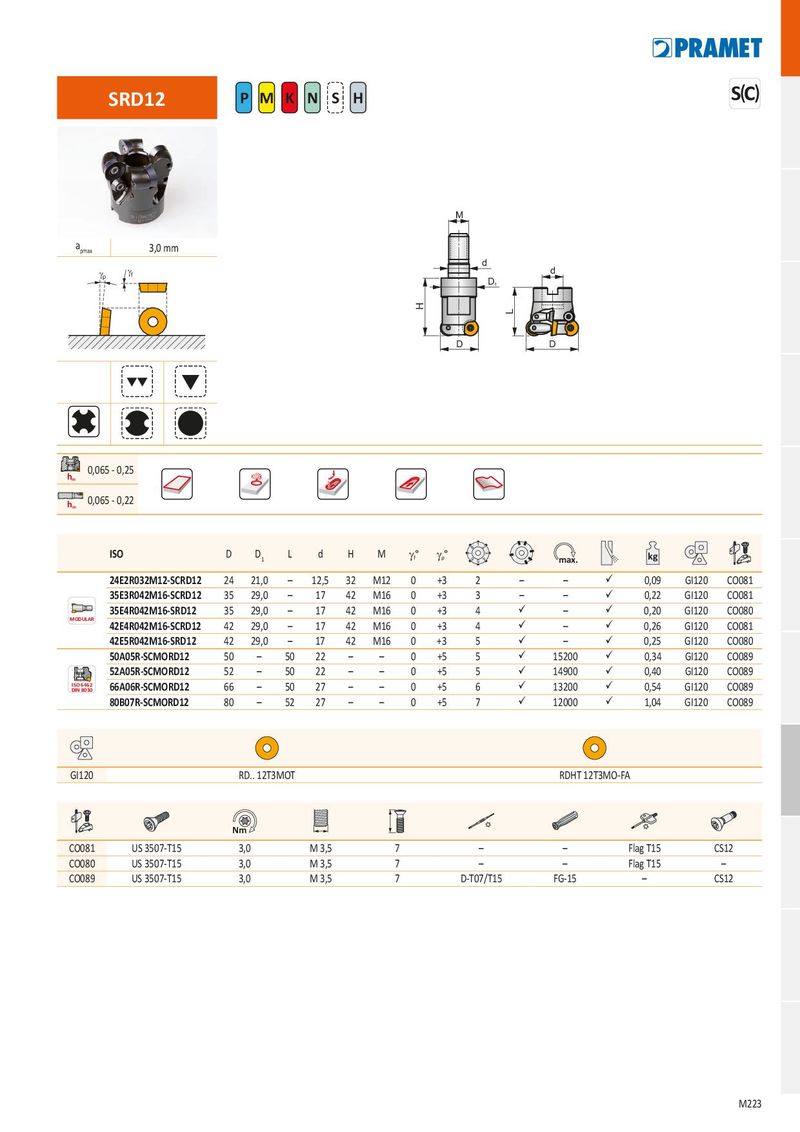

SRD12 P M K N S H S
M a 3,0 mm pmax d
| g | g | d | |
| p | f | D |
1
D D
0,065 - 0,25 h m 0,065 - 0,22 h m
ISO D D L d H M g° g ° 8 1 2
45 kg
1 f p 6 max.
| 24E2R032M12-SCRD12 | 24 | 21,0 | – | 12,5 | 32 | M12 | 0 | +3 | 2 | – | – | ü | 0,09 | GI120 | CO081 | |
| 35E3R042M16-SCRD12 | 35 | 29,0 | – | 17 | 42 | M16 | 0 | +3 | 3 | – | – | ü | 0,22 | GI120 | CO081 | |
| 35E4R042M16-SRD12 | 35 | 29,0 | – | 17 | 42 | M16 | 0 | +3 | 4 | ü | – | ü | 0,20 | GI120 | CO080 | |
| MODULAR | 42E4R042M16-SCRD12 | 42 | 29,0 | – | 17 | 42 | M16 | 0 | +3 | 4 | ü | – | ü | 0,26 | GI120 | CO081 |
| 42E5R042M16-SRD12 | 42 | 29,0 | – | 17 | 42 | M16 | 0 | +3 | 5 | ü | – | ü | 0,25 | GI120 | CO080 | |
| 50A05R-SCMORD12 | 50 | – | 50 | 22 | – | – | 0 | +5 | 5 | ü | 15200 | ü | 0,34 | GI120 | CO089 | |
| 52A05R-SCMORD12 | 52 | – | 50 | 22 | – | – | 0 | +5 | 5 | ü | 14900 | ü | 0,40 | GI120 | CO089 | |
| ISO 6462 | 66A06R-SCMORD12 | 66 | – | 50 | 27 | – | – | 0 | +5 | 6 | ü | 13200 | ü | 0,54 | GI120 | CO089 |
DIN 8030
80B07R-SCMORD12 80 – 52 27 – – 0 +5 7 ü 12000 ü 1,04 GI120 CO089
GI120 RD.. 12T3MOT RDHT 12T3MO-FA
Nm
| CO081 | US 3507-T15 | 3,0 | M 3,5 | 7 | – | – | Flag T15 | CS12 | ||
| CO080 | US 3507-T15 | 3,0 | M 3,5 | 7 | – | – | Flag T15 | – | ||
| CO089 | US 3507-T15 | 3,0 | M 3,5 | 7 | D-T07/T15 | FG-15 | – | CS12 |
