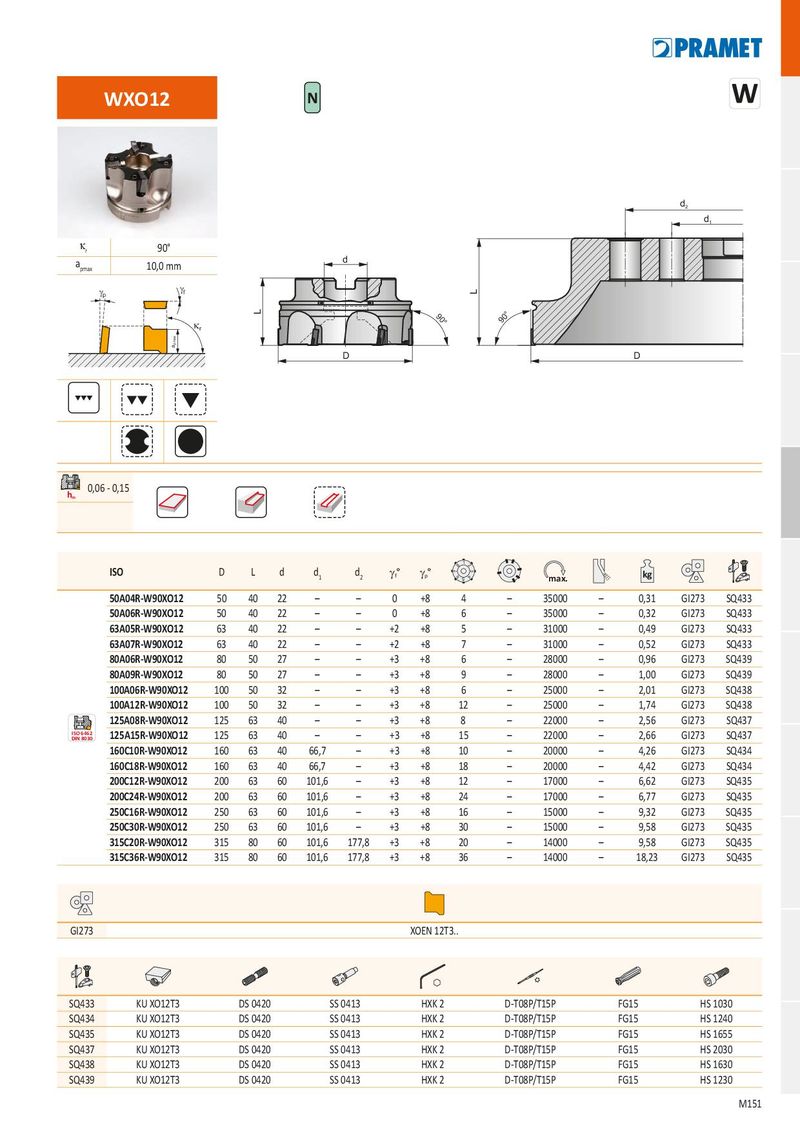

WXO12 N
| k | 90° | ||
| r | |||
| a | 10,0 mm | ||
| pmax | |||
| g | g | ||
| p | f |
k r
d
D
90°
90°
D
d 2
d 1
0,06 - 0,15 h m
| ISO | D | L | d | d1 | d2 | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | |||||
| 50A04R-W90XO12 | 50 | 40 | 22 | – | – | 0 | +8 | 4 | – | 35000 | – | 0,31 | GI273 | SQ433 | |
| 50A06R-W90XO12 | 50 | 40 | 22 | – | – | 0 | +8 | 6 | – | 35000 | – | 0,32 | GI273 | SQ433 | |
| 63A05R-W90XO12 | 63 | 40 | 22 | – | – | +2 | +8 | 5 | – | 31000 | – | 0,49 | GI273 | SQ433 | |
| 63A07R-W90XO12 | 63 | 40 | 22 | – | – | +2 | +8 | 7 | – | 31000 | – | 0,52 | GI273 | SQ433 | |
| 80A06R-W90XO12 | 80 | 50 | 27 | – | – | +3 | +8 | 6 | – | 28000 | – | 0,96 | GI273 | SQ439 | |
| 80A09R-W90XO12 | 80 | 50 | 27 | – | – | +3 | +8 | 9 | – | 28000 | – | 1,00 | GI273 | SQ439 | |
| 100A06R-W90XO12 | 100 | 50 | 32 | – | – | +3 | +8 | 6 | – | 25000 | – | 2,01 | GI273 | SQ438 | |
| 100A12R-W90XO12 | 100 | 50 | 32 | – | – | +3 | +8 | 12 | – | 25000 | – | 1,74 | GI273 | SQ438 | |
| 125A08R-W90XO12 | 125 | 63 | 40 | – | – | +3 | +8 | 8 | – | 22000 | – | 2,56 | GI273 | SQ437 | |
| ISO 6462 DIN 8030 | 125A15R-W90XO12 | 125 | 63 | 40 | – | – | +3 | +8 | 15 | – | 22000 | – | 2,66 | GI273 | SQ437 |
| 160C10R-W90XO12 | 160 | 63 | 40 | 66,7 | – | +3 | +8 | 10 | – | 20000 | – | 4,26 | GI273 | SQ434 | |
| 160C18R-W90XO12 | 160 | 63 | 40 | 66,7 | – | +3 | +8 | 18 | – | 20000 | – | 4,42 | GI273 | SQ434 | |
| 200C12R-W90XO12 | 200 | 63 | 60 | 101,6 | – | +3 | +8 | 12 | – | 17000 | – | 6,62 | GI273 | SQ435 | |
| 200C24R-W90XO12 | 200 | 63 | 60 | 101,6 | – | +3 | +8 | 24 | – | 17000 | – | 6,77 | GI273 | SQ435 | |
| 250C16R-W90XO12 | 250 | 63 | 60 | 101,6 | – | +3 | +8 | 16 | – | 15000 | – | 9,32 | GI273 | SQ435 | |
| 250C30R-W90XO12 | 250 | 63 | 60 | 101,6 | – | +3 | +8 | 30 | – | 15000 | – | 9,58 | GI273 | SQ435 | |
| 315C20R-W90XO12 | 315 | 80 | 60 | 101,6 | 177,8 | +3 | +8 | 20 | – | 14000 | – | 9,58 | GI273 | SQ435 | |
| 315C36R-W90XO12 | 315 | 80 | 60 | 101,6 | 177,8 | +3 | +8 | 36 | – | 14000 | – | 18,23 | GI273 | SQ435 |
GI273 XOEN 12T3..
| SQ433 | KU XO12T3 | DS 0420 | SS 0413 | HXK 2 | D-T08P/T15P | FG15 | HS 1030 |
| SQ434 | KU XO12T3 | DS 0420 | SS 0413 | HXK 2 | D-T08P/T15P | FG15 | HS 1240 |
| SQ435 | KU XO12T3 | DS 0420 | SS 0413 | HXK 2 | D-T08P/T15P | FG15 | HS 1655 |
| SQ437 | KU XO12T3 | DS 0420 | SS 0413 | HXK 2 | D-T08P/T15P | FG15 | HS 2030 |
| SQ438 | KU XO12T3 | DS 0420 | SS 0413 | HXK 2 | D-T08P/T15P | FG15 | HS 1630 |
| SQ439 | KU XO12T3 | DS 0420 | SS 0413 | HXK 2 | D-T08P/T15P | FG15 | HS 1230 |
