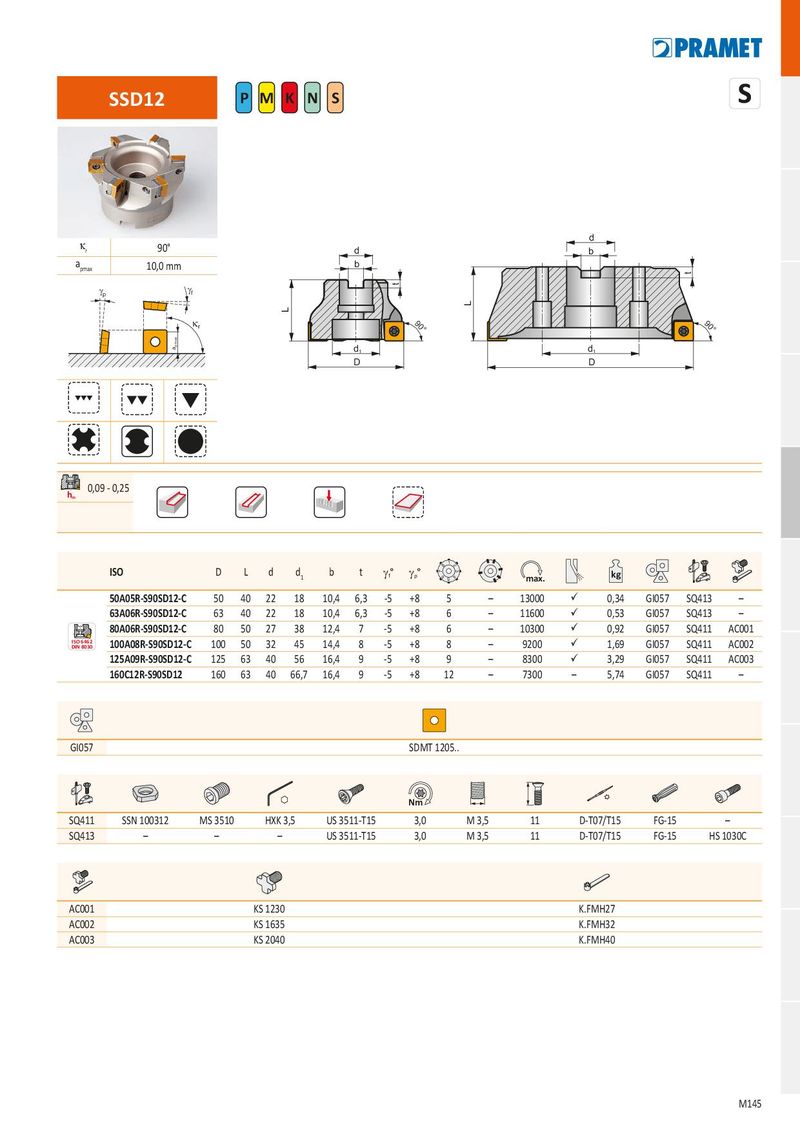

SSD12 P M K N S
k d
| 90° | b d | |||
| r | ||||
| a | 10,0 mm | b | ||
| pmax | ||||
| g | g | |||
| p | f |
k 90° 90°
r d d 1 1 D D
0,09 - 0,25 h m
| ISO | D | L | d | d1 | b | t | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | ||||||
| 50A05R-S90SD12-C | 50 | 40 | 22 | 18 | 10,4 | 6,3 | -5 | +8 | 5 | – | 13000 | ü | 0,34 | GI057 | SQ413 | – | |
| 63A06R-S90SD12-C | 63 | 40 | 22 | 18 | 10,4 | 6,3 | -5 | +8 | 6 | – | 11600 | ü | 0,53 | GI057 | SQ413 | – | |
| 80A06R-S90SD12-C | 80 | 50 | 27 | 38 | 12,4 | 7 | -5 | +8 | 6 | – | 10300 | ü | 0,92 | GI057 | SQ411 | AC001 | |
| ISO 6462 DIN 8030 | 100A08R-S90SD12-C | 100 | 50 | 32 | 45 | 14,4 | 8 | -5 | +8 | 8 | – | 9200 | ü | 1,69 | GI057 | SQ411 | AC002 |
| 125A09R-S90SD12-C | 125 | 63 | 40 | 56 | 16,4 | 9 | -5 | +8 | 9 | – | 8300 | ü | 3,29 | GI057 | SQ411 | AC003 | |
| 160C12R-S90SD12 | 160 | 63 | 40 | 66,7 | 16,4 | 9 | -5 | +8 | 12 | – | 7300 | – | 5,74 | GI057 | SQ411 | – | |
| GI057 | SDM | T 1205.. |
| Nm | ||||||||||
| SQ411 | SSN 100312 | MS 3510 | HXK 3,5 | US 3511-T15 | 3,0 | M 3,5 | 11 | D-T07/T15 | FG-15 | – |
| SQ413 | – | – | – | US 3511-T15 | 3,0 | M 3,5 | 11 | D-T07/T15 | FG-15 | HS 1030C |
| AC001 | KS 1230 | K.FMH27 |
| AC002 | KS 1635 | K.FMH32 |
| AC003 | KS 2040 | K.FMH40 |
