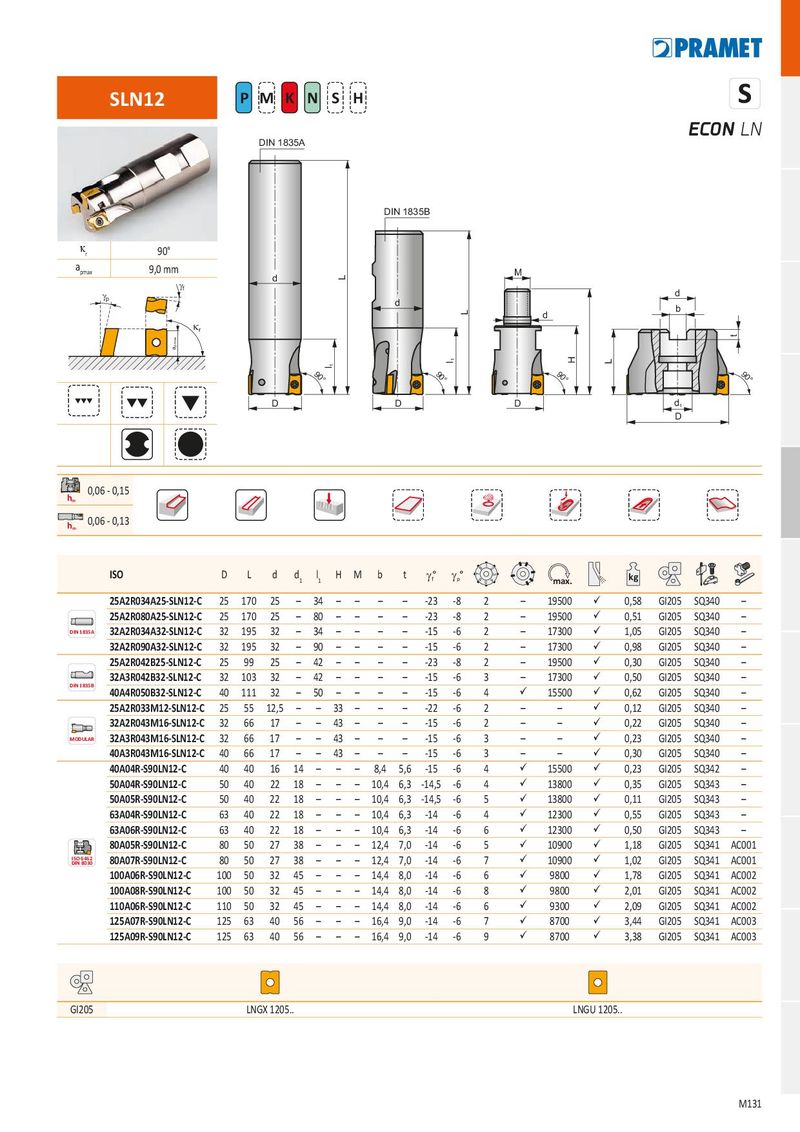

Общий каталог Dormer Pramet 2017 - страница 598
Навигация
Каталог Dormer Pramet токарная обработка 2021 - 2022
Каталог Dormer Pramet обработка отверстий 2021 - 2022
Общий каталог Dormer Pramet 2018
Брошюра Dormer Pramet новинки 2021
Общий каталог Dormer Pramet 2016
SLN12 P M K N S H
ECON LN DIN 1835A
DIN 1835B k 90° r a 9,0 mm
pmax d M
g f g p d
k r
d b d
90° 90° 90° 90°
D D D d
1 D
0,06 - 0,15 h m 0,06 - 0,13 h m
| ISO | D | L | d | d1 | l1 | H | M | b | t | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | |||||||
| 25A2R034A25-SLN12-C | 25 | 170 | 25 | – | 34 | – | – | – | – | -23 | -8 | 2 | – | 19500 | ü | 0,58 | GI205 | SQ340 | – | ||
| 25A2R080A25-SLN12-C | 25 | 170 | 25 | – | 80 | – | – | – | – | -23 | -8 | 2 | – | 19500 | ü | 0,51 | GI205 | SQ340 | – | ||
| DIN 1835A | 32A2R034A32-SLN12-C | 32 | 195 | 32 | – | 34 | – | – | – | – | -15 | -6 | 2 | – | 17300 | ü | 1,05 | GI205 | SQ340 | – | |
| 32A2R090A32-SLN12-C | 32 | 195 | 32 | – | 90 | – | – | – | – | -15 | -6 | 2 | – | 17300 | ü | 0,98 | GI205 | SQ340 | – | ||
| 25A2R042B25-SLN12-C | 25 | 99 | 25 | – | 42 | – | – | – | – | -23 | -8 | 2 | – | 19500 | ü | 0,30 | GI205 | SQ340 | – | ||
| 32A3R042B32-SLN12-C | 32 | 103 | 32 | – | 42 | – | – | – | – | -15 | -6 | 3 | – | 17300 | ü | 0,50 | GI205 | SQ340 | – | ||
| DIN 1835B | 40A4R050B32-SLN12-C | 40 | 111 | 32 | – | 50 | – | – | – | – | -15 | -6 | 4 | ü | 15500 | ü | 0,62 | GI205 | SQ340 | – | |
| 25A2R033M12-SLN12-C | 25 | 55 | 1 | 2,5 | – | – | 3 | 3 – | – | – | -22 | -6 | 2 | – | – | ü | 0,12 | GI205 | SQ340 | – | |
| 32A2R043M16-SLN12-C | 32 | 66 | 17 | – | – | 4 | 3 – | – | – | -15 | -6 | 2 | – | – | ü | 0,22 | GI205 | SQ340 | – | ||
| MODULAR | 32A3R043M16-SLN12-C | 32 | 66 | 17 | – | – | 4 | 3 – | – | – | -15 | -6 | 3 | – | – | ü | 0,23 | GI205 | SQ340 | – | |
| 40A3R043M16-SLN12-C | 40 | 66 | 17 | – | – | 4 | 3 – | – | – | -15 | -6 | 3 | – | – | ü | 0,30 | GI205 | SQ340 | – | ||
| 40A04R-S90LN12-C | 40 | 40 | 16 | 14 | – | – | – | 8,4 | 5,6 | -15 | -6 | 4 | ü | 15500 | ü | 0,23 | GI205 | SQ342 | – | ||
| 50A04R-S90LN12-C | 50 | 40 | 22 | 18 | – | – | – | 10,4 | 6,3 | -14,5 | -6 | 4 | ü | 13800 | ü | 0,35 | GI205 | SQ343 | – | ||
| 50A05R-S90LN12-C | 50 | 40 | 22 | 18 | – | – | – | 10,4 | 6,3 | -14,5 | -6 | 5 | ü | 13800 | ü | 0,11 | GI205 | SQ343 | – | ||
| 63A04R-S90LN12-C | 63 | 40 | 22 | 18 | – | – | – | 10,4 | 6,3 | -14 | -6 | 4 | ü | 12300 | ü | 0,55 | GI205 | SQ343 | – | ||
| 63A06R-S90LN12-C | 63 | 40 | 22 | 18 | – | – | – | 10,4 | 6,3 | -14 | -6 | 6 | ü | 12300 | ü | 0,50 | GI205 | SQ343 | – | ||
| 80A05R-S90LN12-C | 80 | 50 | 27 | 38 | – | – | – | 12,4 | 7,0 | -14 | -6 | 5 | ü | 10900 | ü | 1,18 | GI205 | SQ341 | AC001 | ||
| ISO 6462 DIN 8030 | 80A07R-S90LN12-C | 80 | 50 | 27 | 38 | – | – | – | 12,4 | 7,0 | -14 | -6 | 7 | ü | 10900 | ü | 1,02 | GI205 | SQ341 | AC001 | |
| 100A06R-S90LN12-C | 100 | 50 | 32 | 45 | – | – | – | 14,4 | 8,0 | -14 | -6 | 6 | ü | 9800 | ü | 1,78 | GI205 | SQ341 | AC002 | ||
| 100A08R-S90LN12-C | 100 | 50 | 32 | 45 | – | – | – | 14,4 | 8,0 | -14 | -6 | 8 | ü | 9800 | ü | 2,01 | GI205 | SQ341 | AC002 | ||
| 110A06R-S90LN12-C | 110 | 50 | 32 | 45 | – | – | – | 14,4 | 8,0 | -14 | -6 | 6 | ü | 9300 | ü | 2,09 | GI205 | SQ341 | AC002 | ||
| 125A07R-S90LN12-C | 125 | 63 | 40 | 56 | – | – | – | 16,4 | 9,0 | -14 | -6 | 7 | ü | 8700 | ü | 3,44 | GI205 | SQ341 | AC003 | ||
| 125A09R-S90LN12-C | 125 | 63 | 40 | 56 | – | – | – | 16,4 | 9,0 | -14 | -6 | 9 | ü | 8700 | ü | 3,38 | GI205 | SQ341 | AC003 | ||
| GI205 | LNG | X | 120 | 5.. | LN | GU 1205 | .. |
