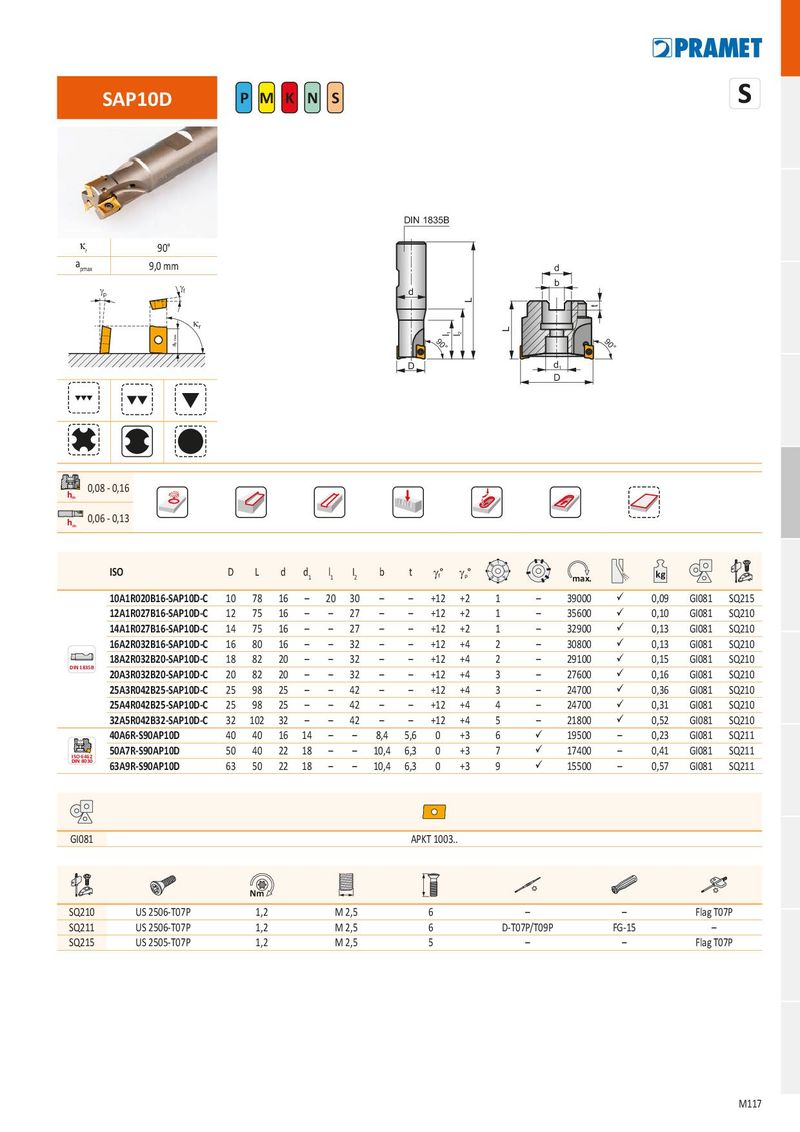

Общий каталог Dormer Pramet 2017 - страница 584
Навигация
Каталог Dormer Pramet токарная обработка 2021 - 2022
Каталог Dormer Pramet обработка отверстий 2021 - 2022
Общий каталог Dormer Pramet 2018
Брошюра Dormer Pramet новинки 2021
Общий каталог Dormer Pramet 2016
SAP10D P M K N S
k 90° r a 9,0 mm pmax g g f p k r
DIN 1835B
d b d
90° 90° D d 1 D
0,08 - 0,16 h m 0,06 - 0,13 h m
| ISO | D | L | d | d1 | l1 | I2 | b | t | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | |||||
| 10A1R020B16-SAP10D-C | 10 | 78 | 16 | – | 20 | 30 | – | – | +12 | +2 | 1 | – | 39000 | ü | 0,09 | GI081 | SQ215 | |
| 12A1R027B16-SAP10D-C | 12 | 75 | 16 | – | – | 27 | – | – | +12 | +2 | 1 | – | 35600 | ü | 0,10 | GI081 | SQ210 | |
| 14A1R027B16-SAP10D-C | 14 | 75 | 16 | – | – | 27 | – | – | +12 | +2 | 1 | – | 32900 | ü | 0,13 | GI081 | SQ210 | |
| 16A2R032B16-SAP10D-C | 16 | 80 | 16 | – | – | 32 | – | – | +12 | +4 | 2 | – | 30800 | ü | 0,13 | GI081 | SQ210 | |
| 18A2R032B20-SAP10D-C | 18 | 82 | 20 | – | – | 32 | – | – | +12 | +4 | 2 | – | 29100 | ü | 0,15 | GI081 | SQ210 | |
| DIN 1835B | 20A3R032B20-SAP10D-C | 20 | 82 | 20 | – | – | 32 | – | – | +12 | +4 | 3 | – | 27600 | ü | 0,16 | GI081 | SQ210 |
| 25A3R042B25-SAP10D-C | 25 | 98 | 25 | – | – | 42 | – | – | +12 | +4 | 3 | – | 24700 | ü | 0,36 | GI081 | SQ210 | |
| 25A4R042B25-SAP10D-C | 25 | 98 | 25 | – | – | 42 | – | – | +12 | +4 | 4 | – | 24700 | ü | 0,31 | GI081 | SQ210 | |
| 32A5R042B32-SAP10D-C | 32 | 102 | 32 | – | – | 42 | – | – | +12 | +4 | 5 | – | 21800 | ü | 0,52 | GI081 | SQ210 | |
| 40A6R-S90AP10D | 40 | 40 | 16 | 14 | – | – | 8,4 | 5,6 | 0 | +3 | 6 | ü | 19500 | – | 0,23 | GI081 | SQ211 | |
| ISO 6462 | 50A7R-S90AP10D | 50 | 40 | 22 | 18 | – | – | 10,4 | 6,3 | 0 | +3 | 7 | ü | 17400 | – | 0,41 | GI081 | SQ211 |
| DIN 8030 | 63A9R-S90AP10D | 63 | 50 | 22 | 18 | – | – | 10,4 | 6,3 | 0 | +3 | 9 | ü | 15500 | – | 0,57 | GI081 | SQ211 |
GI081 APKT 1003..
| Nm | |||||||
| SQ210 | US 2506-T07P | 1,2 | M 2,5 | 6 | – | – | FlagT07P |
| SQ211 | US 2506-T07P | 1,2 | M 2,5 | 6 | D-T07P/T09P | FG-15 | – |
| SQ215 | US 2505-T07P | 1,2 | M 2,5 | 5 | – | – | FlagT07P |
