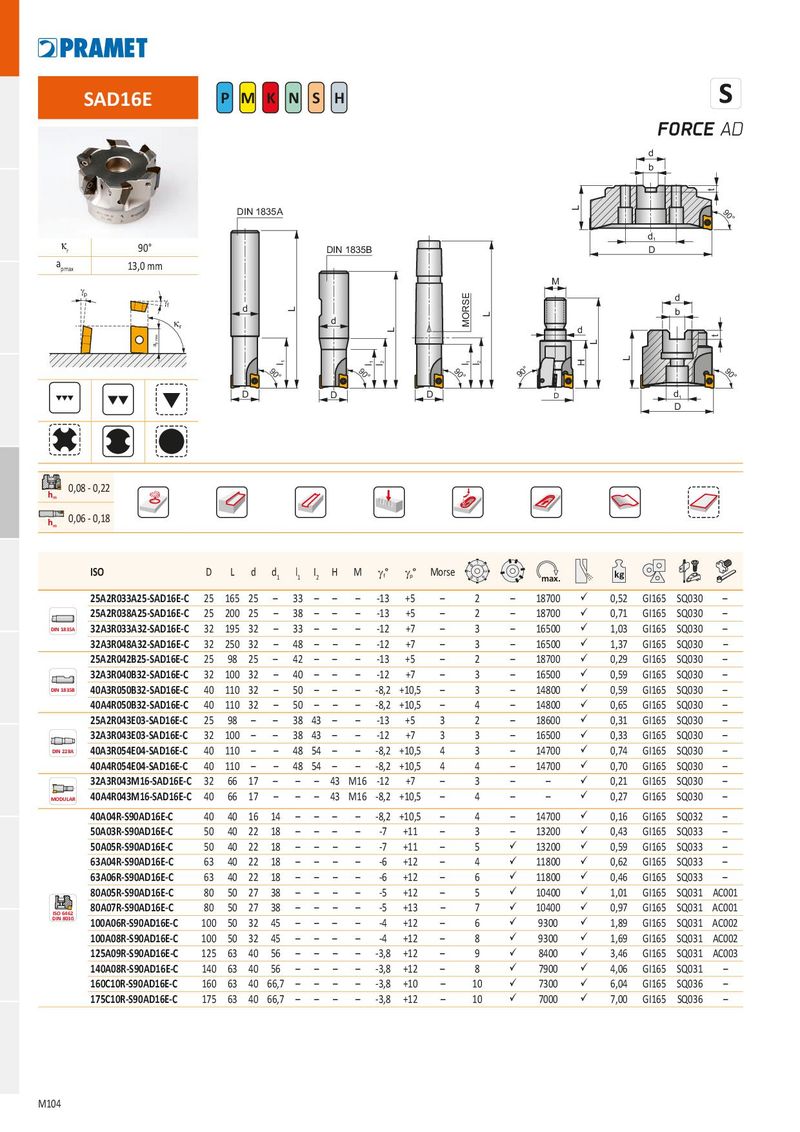

SAD16E P M K N S H
FORCE AD d b
DIN 1835A 90° d
| k | 90° | 1 |
| r | DIN 1835B D | |
| a | 13,0 mm | |
| pmax | ||
| M | ||
| g |
| p | g | d | |
| f | d | b |
k d r d
| 90° | 90° | 90° | 90° | |
| 90° |
D D D D d
1 D
0,08 - 0,22 h m 0,06 - 0,18 h m
| ISO | D | L | d | d1 | l1 | I2 | H | M | g° f | g° p | Morse | 1 2 3 4 5 6 7 8 | max. | kg | ||||||
| 25A2R033A25-SAD16E-C | 25 | 165 | 25 | – | 33 | – | – | – | -13 | +5 | – | 2 | – | 18700 | ü | 0,52 | GI165 | SQ030 | – | |
| 25A2R038A25-SAD16E-C | 25 | 200 | 25 | – | 38 | – | – | – | -13 | +5 | – | 2 | – | 18700 | ü | 0,71 | GI165 | SQ030 | – | |
| DIN 1835A | 32A3R033A32-SAD16E-C | 32 | 195 | 32 | – | 33 | – | – | – | -12 | +7 | – | 3 | – | 16500 | ü | 1,03 | GI165 | SQ030 | – |
| 32A3R048A32-SAD16E-C | 32 | 250 | 32 | – | 48 | – | – | – | -12 | +7 | – | 3 | – | 16500 | ü | 1,37 | GI165 | SQ030 | – | |
| 25A2R042B25-SAD16E-C | 25 | 98 | 25 | – | 42 | – | – | – | -13 | +5 | – | 2 | – | 18700 | ü | 0,29 | GI165 | SQ030 | – | |
| 32A3R040B32-SAD16E-C | 32 | 100 | 32 | – | 40 | – | – | – | -12 | +7 | – | 3 | – | 16500 | ü | 0,59 | GI165 | SQ030 | – | |
| DIN 1835B | 40A3R050B32-SAD16E-C | 40 | 110 | 32 | – | 50 | – | – | – | -8,2 | +10,5 | – | 3 | – | 14800 | ü | 0,59 | GI165 | SQ030 | – |
| 40A4R050B32-SAD16E-C | 40 | 110 | 32 | – | 50 | – | – | – | -8,2 | +10,5 | – | 4 | – | 14800 | ü | 0,65 | GI165 | SQ030 | – | |
| 25A2R043E03-SAD16E-C | 25 | 98 | – | – | 38 4 | 3 | – | – | -13 | +5 | 3 | 2 | – | 18600 | ü | 0,31 | GI165 | SQ030 | – | |
| 32A3R043E03-SAD16E-C | 32 | 100 | – | – | 38 4 | 3 | – | – | -12 | +7 | 3 | 3 | – | 16500 | ü | 0,33 | GI165 | SQ030 | – | |
| DIN 228A | 40A3R054E04-SAD16E-C | 40 | 110 | – | – | 48 5 | 4 | – | – | -8,2 | +10,5 | 4 | 3 | – | 14700 | ü | 0,74 | GI165 | SQ030 | – |
| 40A4R054E04-SAD16E-C | 40 | 110 | – | – | 48 5 | 4 | – | – | -8,2 | +10,5 | 4 | 4 | – | 14700 | ü | 0,70 | GI165 | SQ030 | – | |
| 32A3R043M16-SAD16E-C | 32 | 66 | 17 | – | – | – | 43 | M16 | -12 | +7 | – | 3 | – | – | ü | 0,21 | GI165 | SQ030 | – | |
| MODULAR | 40A4R043M16-SAD16E-C | 40 | 66 | 17 | – | – | – | 43 | M16 | -8,2 | +10,5 | – | 4 | – | – | ü | 0,27 | GI165 | SQ030 | – |
| 40A04R-S90AD16E-C | 40 | 40 | 16 | 14 | – | – | – | – | -8,2 | +10,5 | – | 4 | – | 14700 | ü | 0,16 | GI165 | SQ032 | – | |
| 50A03R-S90AD16E-C | 50 | 40 | 22 | 18 | – | – | – | – | -7 | +11 | – | 3 | – | 13200 | ü | 0,43 | GI165 | SQ033 | – | |
| 50A05R-S90AD16E-C | 50 | 40 | 22 | 18 | – | – | – | – | -7 | +11 | – | 5 | ü | 13200 | ü | 0,59 | GI165 | SQ033 | – | |
| 63A04R-S90AD16E-C | 63 | 40 | 22 | 18 | – | – | – | – | -6 | +12 | – | 4 | ü | 11800 | ü | 0,62 | GI165 | SQ033 | – | |
| 63A06R-S90AD16E-C | 63 | 40 | 22 | 18 | – | – | – | – | -6 | +12 | – | 6 | ü | 11800 | ü | 0,46 | GI165 | SQ033 | – | |
| 80A05R-S90AD16E-C | 80 | 50 | 27 | 38 | – | – | – | – | -5 | +12 | – | 5 | ü | 10400 | ü | 1,01 | GI165 | SQ031 | AC001 | |
| ISO 6462 | 80A07R-S90AD16E-C | 80 | 50 | 27 | 38 | – | – | – | – | -5 | +13 | – | 7 | ü | 10400 | ü | 0,97 | GI165 | SQ031 | AC001 |
| DIN 8030 | 100A06R-S90AD16E-C | 100 | 50 | 32 | 45 | – | – | – | – | -4 | +12 | – | 6 | ü | 9300 | ü | 1,89 | GI165 | SQ031 | AC002 |
| 100A08R-S90AD16E-C | 100 | 50 | 32 | 45 | – | – | – | – | -4 | +12 | – | 8 | ü | 9300 | ü | 1,69 | GI165 | SQ031 | AC002 | |
| 125A09R-S90AD16E-C | 125 | 63 | 40 | 56 | – | – | – | – | -3,8 | +12 | – | 9 | ü | 8400 | ü | 3,46 | GI165 | SQ031 | AC003 | |
| 140A08R-S90AD16E-C | 140 | 63 | 40 | 56 | – | – | – | – | -3,8 | +12 | – | 8 | ü | 7900 | ü | 4,06 | GI165 | SQ031 | – | |
| 160C10R-S90AD16E-C | 160 | 63 | 40 | 66,7 | – | – | – | – | -3,8 | +10 | – | 10 | ü | 7300 | ü | 6,04 | GI165 | SQ036 | – | |
| 175C10R-S90AD16E-C | 175 | 63 | 40 | 66,7 | – | – | – | – | -3,8 | +12 | – | 10 | ü | 7000 | ü | 7,00 | GI165 | SQ036 | – |
