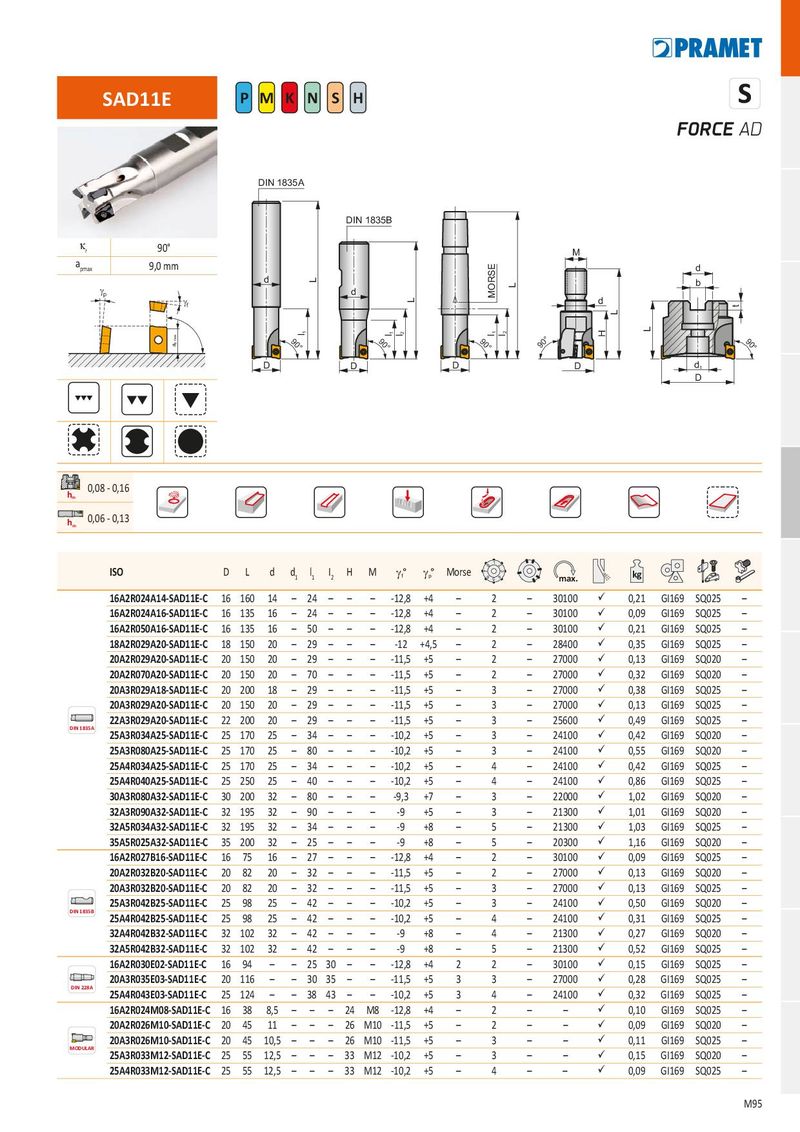

Общий каталог Dormer Pramet 2017 - страница 562
Навигация
Каталог Dormer Pramet токарная обработка 2021 - 2022
Каталог Dormer Pramet обработка отверстий 2021 - 2022
Общий каталог Dormer Pramet 2018
Брошюра Dormer Pramet новинки 2021
Общий каталог Dormer Pramet 2016
SAD11E P M K N S H
FORCE AD
DIN 1835A
DIN 1835B k 90° r M a 9,0 mm pmax d d b g d
| p | g | d |
| f |
| 90° | 90° | 90° | 90° | |
| 90° |
D D D D d
1 D
0,08 - 0,16 h m 0,06 - 0,13 h m
| ISO | D | L | d | d1 | l1 I | 2 | H | M | g° f | g° p | Morse | 1 2 3 4 5 6 7 8 | max. | kg | ||||||
| 16A2R024A14-SAD11E-C | 1 | 6 160 | 14 | – | 24 | – | – | – | -12,8 | +4 | – | 2 | – | 30100 | ü | 0,21 | GI169 | SQ025 | – | |
| 16A2R024A16-SAD11E-C | 1 | 6 135 | 16 | – | 24 | – | – | – | -12,8 | +4 | – | 2 | – | 30100 | ü | 0,09 | GI169 | SQ025 | – | |
| 16A2R050A16-SAD11E-C | 1 | 6 135 | 16 | – | 50 | – | – | – | -12,8 | +4 | – | 2 | – | 30100 | ü | 0,21 | GI169 | SQ025 | – | |
| 18A2R029A20-SAD11E-C | 1 | 8 150 | 20 | – | 29 | – | – | – | -12 | +4,5 | – | 2 | – | 28400 | ü | 0,35 | GI169 | SQ025 | – | |
| 20A2R029A20-SAD11E-C | 2 | 0 150 | 20 | – | 29 | – | – | – | -11,5 | +5 | – | 2 | – | 27000 | ü | 0,13 | GI169 | SQ020 | – | |
| 20A2R070A20-SAD11E-C | 2 | 0 150 | 20 | – | 70 | – | – | – | -11,5 | +5 | – | 2 | – | 27000 | ü | 0,32 | GI169 | SQ020 | – | |
| 20A3R029A18-SAD11E-C | 2 | 0 200 | 18 | – | 29 | – | – | – | -11,5 | +5 | – | 3 | – | 27000 | ü | 0,38 | GI169 | SQ025 | – | |
| 20A3R029A20-SAD11E-C | 2 | 0 150 | 20 | – | 29 | – | – | – | -11,5 | +5 | – | 3 | – | 27000 | ü | 0,13 | GI169 | SQ025 | – | |
| 22A3R029A20-SAD11E-C | 2 | 2 200 | 20 | – | 29 | – | – | – | -11,5 | +5 | – | 3 | – | 25600 | ü | 0,49 | GI169 | SQ025 | – | |
| DIN 1835A | 25A3R034A25-SAD11E-C | 2 | 5 170 | 25 | – | 34 | – | – | – | -10,2 | +5 | – | 3 | – | 24100 | ü | 0,42 | GI169 | SQ020 | – |
| 25A3R080A25-SAD11E-C | 2 | 5 170 | 25 | – | 80 | – | – | – | -10,2 | +5 | – | 3 | – | 24100 | ü | 0,55 | GI169 | SQ020 | – | |
| 25A4R034A25-SAD11E-C | 2 | 5 170 | 25 | – | 34 | – | – | – | -10,2 | +5 | – | 4 | – | 24100 | ü | 0,42 | GI169 | SQ025 | – | |
| 25A4R040A25-SAD11E-C | 2 | 5 250 | 25 | – | 40 | – | – | – | -10,2 | +5 | – | 4 | – | 24100 | ü | 0,86 | GI169 | SQ025 | – | |
| 30A3R080A32-SAD11E-C | 3 | 0 200 | 32 | – | 80 | – | – | – | -9,3 | +7 | – | 3 | – | 22000 | ü | 1,02 | GI169 | SQ020 | – | |
| 32A3R090A32-SAD11E-C | 3 | 2 195 | 32 | – | 90 | – | – | – | -9 | +5 | – | 3 | – | 21300 | ü | 1,01 | GI169 | SQ020 | – | |
| 32A5R034A32-SAD11E-C | 3 | 2 195 | 32 | – | 34 | – | – | – | -9 | +8 | – | 5 | – | 21300 | ü | 1,03 | GI169 | SQ025 | – | |
| 35A5R025A32-SAD11E-C | 3 | 5 200 | 32 | – | 25 | – | – | – | -9 | +8 | – | 5 | – | 20300 | ü | 1,16 | GI169 | SQ020 | – | |
| 16A2R027B16-SAD11E-C | 1 | 6 75 | 16 | – | 27 | – | – | – | -12,8 | +4 | – | 2 | – | 30100 | ü | 0,09 | GI169 | SQ025 | – | |
| 20A2R032B20-SAD11E-C | 2 | 0 82 | 20 | – | 32 | – | – | – | -11,5 | +5 | – | 2 | – | 27000 | ü | 0,13 | GI169 | SQ020 | – | |
| 20A3R032B20-SAD11E-C | 2 | 0 82 | 20 | – | 32 | – | – | – | -11,5 | +5 | – | 3 | – | 27000 | ü | 0,13 | GI169 | SQ025 | – | |
| 25A3R042B25-SAD11E-C | 2 | 5 98 | 25 | – | 42 | – | – | – | -10,2 | +5 | – | 3 | – | 24100 | ü | 0,50 | GI169 | SQ020 | – | |
| DIN 1835B | 25A4R042B25-SAD11E-C | 2 | 5 98 | 25 | – | 42 | – | – | – | -10,2 | +5 | – | 4 | – | 24100 | ü | 0,31 | GI169 | SQ025 | – |
| 32A4R042B32-SAD11E-C | 3 | 2 102 | 32 | – | 42 | – | – | – | -9 | +8 | – | 4 | – | 21300 | ü | 0,27 | GI169 | SQ020 | – | |
| 32A5R042B32-SAD11E-C | 3 | 2 102 | 32 | – | 42 | – | – | – | -9 | +8 | – | 5 | – | 21300 | ü | 0,52 | GI169 | SQ025 | – | |
| 16A2R030E02-SAD11E-C | 1 | 6 94 | – | – | 25 3 | 0 | – | – | -12,8 | +4 | 2 | 2 | – | 30100 | ü | 0,15 | GI169 | SQ025 | – | |
| 20A3R035E03-SAD11E-C | 2 | 0 116 | – | – | 30 3 | 5 | – | – | -11,5 | +5 | 3 | 3 | – | 27000 | ü | 0,28 | GI169 | SQ025 | – | |
| DIN 228A | 25A4R043E03-SAD11E-C | 2 | 5 124 | – | – | 38 4 | 3 | – | – | -10,2 | +5 | 3 | 4 | – | 24100 | ü | 0,32 | GI169 | SQ025 | – |
| 16A2R024M08-SAD11E-C | 1 | 6 38 | 8,5 | – | – | – | 24 | M8 | -12,8 | +4 | – | 2 | – | – | ü | 0,10 | GI169 | SQ025 | – | |
| 20A2R026M10-SAD11E-C | 2 | 0 45 | 11 | – | – | – | 26 | M10 | -11,5 | +5 | – | 2 | – | – | ü | 0,09 | GI169 | SQ020 | – | |
| 20A3R026M10-SAD11E-C | 2 | 0 45 | 10,5 | – | – | – | 26 | M10 | -11,5 | +5 | – | 3 | – | – | ü | 0,11 | GI169 | SQ025 | – | |
| MODULAR | 25A3R033M12-SAD11E-C | 2 | 5 55 | 12,5 | – | – | – | 33 | M12 | -10,2 | +5 | – | 3 | – | – | ü | 0,15 | GI169 | SQ020 | – |
| 25A4R033M12-SAD11E-C | 2 | 5 55 | 12,5 | – | – | – | 33 | M12 | -10,2 | +5 | – | 4 | – | – | ü | 0,09 | GI169 | SQ025 | – |
