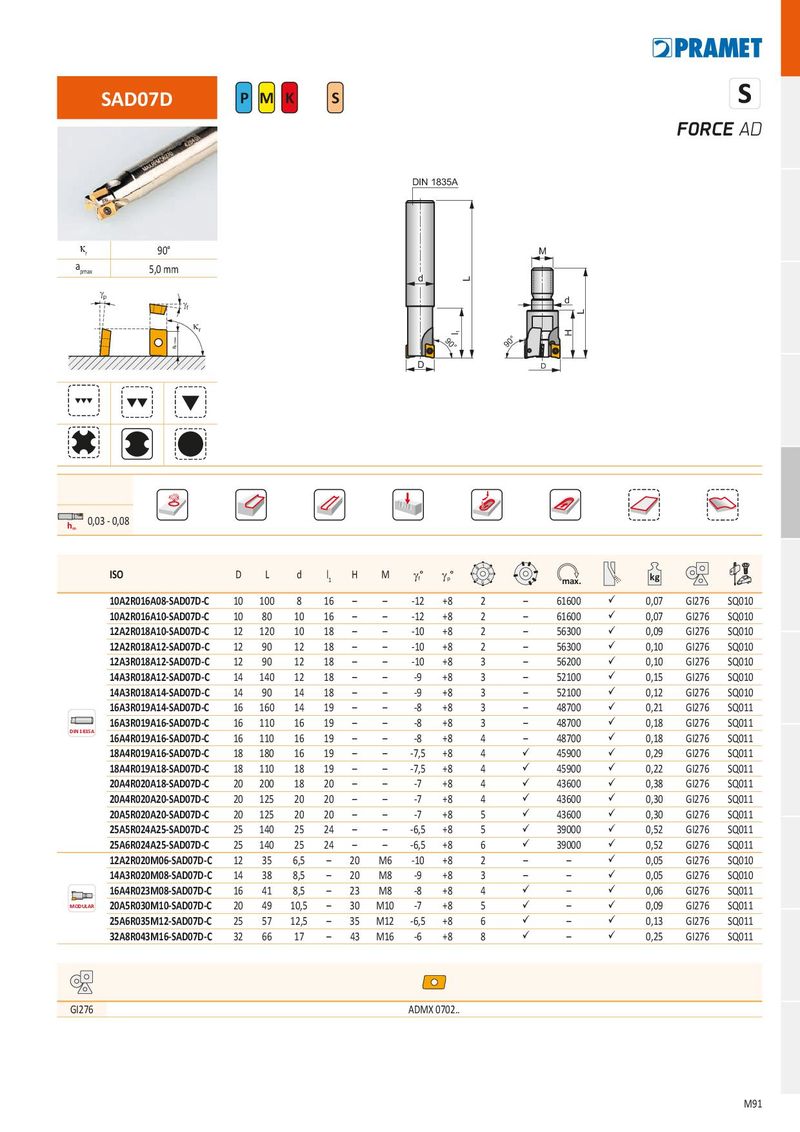

SAD07D P M K S
FORCE AD
DIN 1835A
| k | 90° | M | ||
| r | ||||
| a | 5,0 mm | |||
| pmax | d | |||
| g |
p g d
f k r 90°
90° D D
0,03 - 0,08 h m
| ISO | D | L | d | l1 | H | M | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | ||||
| 10A2R016A08-SAD07D-C | 10 | 100 | 8 | 16 | – | – | -12 | +8 | 2 | – | 61600 | ü | 0,07 | GI276 | SQ010 |
| 10A2R016A10-SAD07D-C | 10 | 80 | 10 | 16 | – | – | -12 | +8 | 2 | – | 61600 | ü | 0,07 | GI276 | SQ010 |
| 12A2R018A10-SAD07D-C | 12 | 120 | 10 | 18 | – | – | -10 | +8 | 2 | – | 56300 | ü | 0,09 | GI276 | SQ010 |
| 12A2R018A12-SAD07D-C | 12 | 90 | 12 | 18 | – | – | -10 | +8 | 2 | – | 56300 | ü | 0,10 | GI276 | SQ010 |
| 12A3R018A12-SAD07D-C | 12 | 90 | 12 | 18 | – | – | -10 | +8 | 3 | – | 56200 | ü | 0,10 | GI276 | SQ010 |
| 14A3R018A12-SAD07D-C | 14 | 140 | 12 | 18 | – | – | -9 | +8 | 3 | – | 52100 | ü | 0,15 | GI276 | SQ010 |
| 14A3R018A14-SAD07D-C | 14 | 90 | 14 | 18 | – | – | -9 | +8 | 3 | – | 52100 | ü | 0,12 | GI276 | SQ010 |
| 16A3R019A14-SAD07D-C | 16 | 160 | 14 | 19 | – | – | -8 | +8 | 3 | – | 48700 | ü | 0,21 | GI276 | SQ011 |
| 16A3R019A16-SAD07D-C | 16 | 110 | 16 | 19 | – | – | -8 | +8 | 3 | – | 48700 | ü | 0,18 | GI276 | SQ011 |
| DIN 1835A 16A4R019A16-SAD07D-C | 16 | 110 | 16 | 19 | – | – | -8 | +8 | 4 | – | 48700 | ü | 0,18 | GI276 | SQ011 |
| 18A4R019A16-SAD07D-C | 18 | 180 | 16 | 19 | – | – | -7,5 | +8 | 4 | ü | 45900 | ü | 0,29 | GI276 | SQ011 |
| 18A4R019A18-SAD07D-C | 18 | 110 | 18 | 19 | – | – | -7,5 | +8 | 4 | ü | 45900 | ü | 0,22 | GI276 | SQ011 |
| 20A4R020A18-SAD07D-C | 20 | 200 | 18 | 20 | – | – | -7 | +8 | 4 | ü | 43600 | ü | 0,38 | GI276 | SQ011 |
| 20A4R020A20-SAD07D-C | 20 | 125 | 20 | 20 | – | – | -7 | +8 | 4 | ü | 43600 | ü | 0,30 | GI276 | SQ011 |
| 20A5R020A20-SAD07D-C | 20 | 125 | 20 | 20 | – | – | -7 | +8 | 5 | ü | 43600 | ü | 0,30 | GI276 | SQ011 |
| 25A5R024A25-SAD07D-C | 25 | 140 | 25 | 24 | – | – | -6,5 | +8 | 5 | ü | 39000 | ü | 0,52 | GI276 | SQ011 |
| 25A6R024A25-SAD07D-C | 25 | 140 | 25 | 24 | – | – | -6,5 | +8 | 6 | ü | 39000 | ü | 0,52 | GI276 | SQ011 |
| 12A2R020M06-SAD07D-C | 12 | 35 | 6,5 | – | 20 | M6 | -10 | +8 | 2 | – | – | ü | 0,05 | GI276 | SQ010 |
| 14A3R020M08-SAD07D-C | 14 | 38 | 8,5 | – | 20 | M8 | -9 | +8 | 3 | – | – | ü | 0,05 | GI276 | SQ010 |
| 16A4R023M08-SAD07D-C | 16 | 41 | 8,5 | – | 23 | M8 | -8 | +8 | 4 | ü | – | ü | 0,06 | GI276 | SQ011 |
| MODULAR 20A5R030M10-SAD07D-C | 20 | 49 | 10,5 | – | 30 | M10 | -7 | +8 | 5 | ü | – | ü | 0,09 | GI276 | SQ011 |
| 25A6R035M12-SAD07D-C | 25 | 57 | 12,5 | – | 35 | M12 | -6,5 | +8 | 6 | ü | – | ü | 0,13 | GI276 | SQ011 |
| 32A8R043M16-SAD07D-C | 32 | 66 | 17 | – | 43 | M16 | -6 | +8 | 8 | ü | – | ü | 0,25 | GI276 | SQ011 |
GI276 ADMX 0702..
