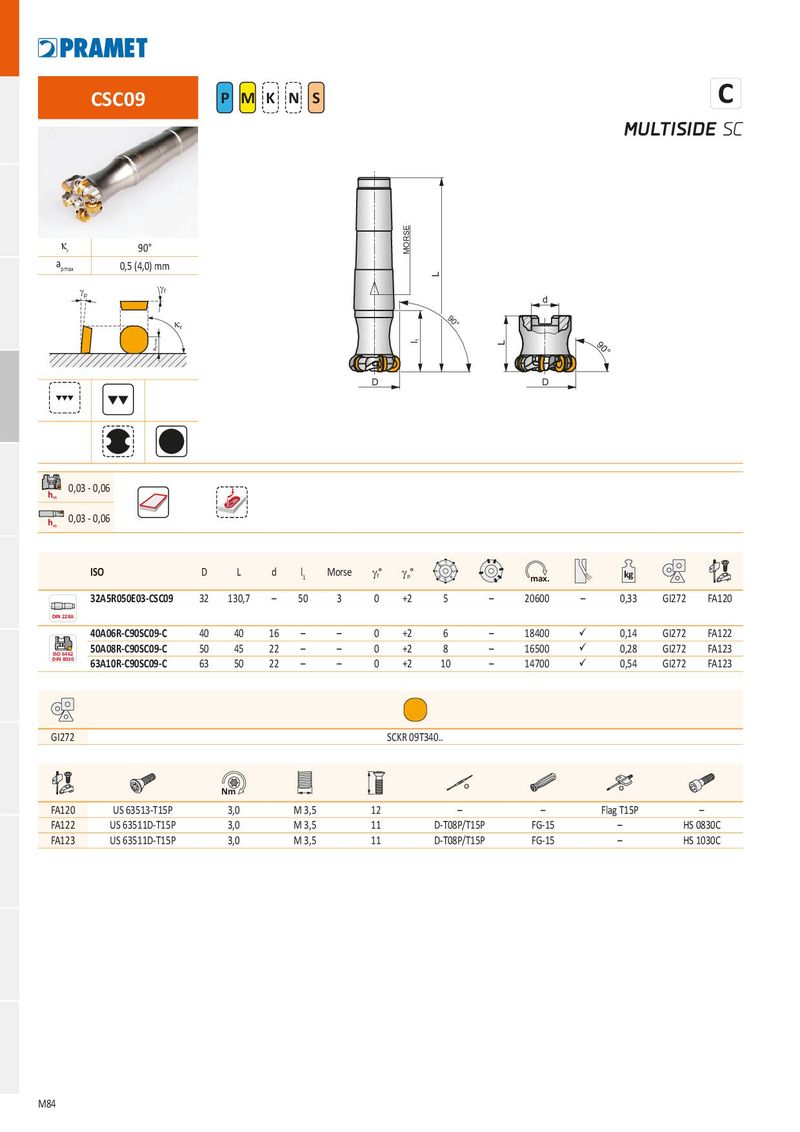

CSC09 P M K N S MULTISIDE SC k r 90° MORSE a pmax 0,5 (4,0) mm L g g p f d 90° k r l 1 L 90° a p max D D 0,03 - 0,06 h m h 0,03 - 0,06 m 8 1 2 7 3 ISO D L d l 1 Morse g° f g ° p 6 5 4 max. kg 32A5R050E03-CSC09 32 130,7 – 50 3 0 +2 5 – 20600 – 0,33 GI272 FA120 DIN 228A 40A06R-C90SC09-C 40 40 16 – – 0 +2 6 – 18400 ü 0,14 GI272 FA122 ISO 6462 50A08R-C90SC09-C 50 45 22 – – 0 +2 8 – 16500 ü 0,28 GI272 FA123 DIN 8030 63A10R-C90SC09-C 63 50 22 – – 0 +2 10 – 14700 ü 0,54 GI272 FA123 GI272 SCKR 09T340.. Nm FA120 US 63513-T15P 3,0 M 3,5 12 – – Flag T15P – FA122 US 63511D-T15P 3,0 M 3,5 11 D-T08P/T15P FG-15 – HS 0830C FA123 US 63511D-T15P 3,0 M 3,5 11 D-T08P/T15P FG-15 – HS 1030C M84
