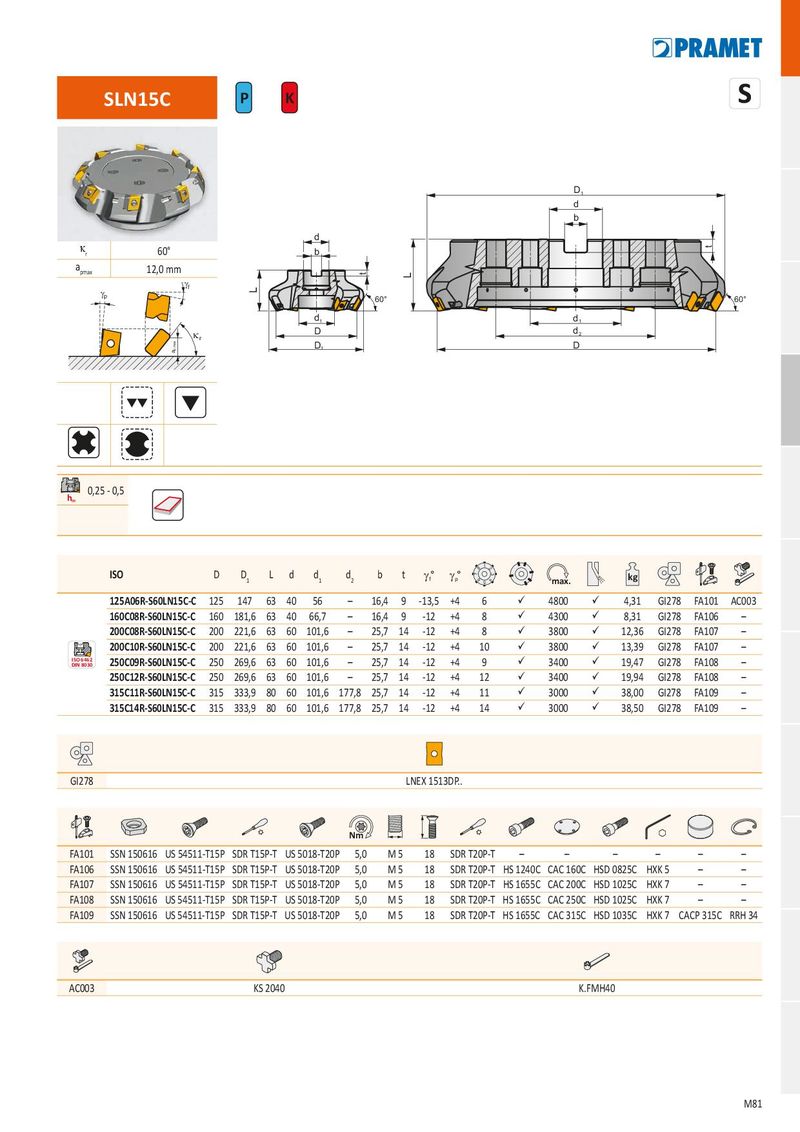

SLN15C P K
k 60° r a 12,0 mm pmax g g f p k r
D 1 d b d b
60° 60° d d 1 d1 D 2 D D 1
0,25 - 0,5 h m
| ISO | D | D1 | L | d d1 | d2 | b | t | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | ||||||
| 125A06R-S60 | LN15C-C 125 | 147 | 63 | 40 56 | – 1 | 6,4 | 9 | -13,5 | +4 | 6 | ü | 4800 | ü 4,31 | GI278 | FA101 | AC003 | ||
| 160C08R-S60 | LN15C-C 160 | 181,6 | 63 | 40 66,7 | – 1 | 6,4 | 9 | -12 | +4 | 8 | ü | 4300 | ü 8,31 | GI278 | FA106 | – | ||
| 200C08R-S60 | LN15C-C 200 | 221,6 | 63 | 60 101,6 | – 2 | 5,7 | 14 | -12 | +4 | 8 | ü | 3800 | ü 12,36 | GI278 | FA107 | – | ||
| 200C10R-S60 | LN15C-C 200 | 221,6 | 63 | 60 101,6 | – 2 | 5,7 | 14 | -12 | +4 | 10 | ü | 3800 | ü 13,39 | GI278 | FA107 | – | ||
| ISO 6462 DIN 8030 | 250C09R-S60 | LN15C-C 250 | 269,6 | 63 | 60 101,6 | – 2 | 5,7 | 14 | -12 | +4 | 9 | ü | 3400 | ü 19,47 | GI278 | FA108 | – | |
| 250C12R-S60 | LN15C-C 250 | 269,6 | 63 | 60 101,6 | – 2 | 5,7 | 14 | -12 | +4 | 12 | ü | 3400 | ü 19,94 | GI278 | FA108 | – | ||
| 315C11R-S60 | LN15C-C 315 | 333,9 | 80 | 60 101,6 | 177,8 2 | 5,7 | 14 | -12 | +4 | 11 | ü | 3000 | ü 38,00 | GI278 | FA109 | – | ||
| 315C14R-S60 | LN15C-C 315 | 333,9 | 80 | 60 101,6 | 177,8 2 | 5,7 | 14 | -12 | +4 | 14 | ü | 3000 | ü 38,50 | GI278 | FA109 | – | ||
| GI278 | L | NEX 151 | 3DP.. | |||||||||||||||
| Nm | ||||||||||||||||||
| FA101 | SSN 150616 | US 54511-T15P | SDR T15 | P-T | US 5018-T20P | 5,0 | M | 5 | 18 | SDR | T20P-T | – | – | – | – | – | – | |
| FA106 | SSN 150616 | US 54511-T15P | SDR T15 | P-T | US 5018-T20P | 5,0 | M | 5 | 18 | SDR | T20P-T | HS 1240C | CAC 160C | HSD 0825C | HXK 5 | – | – | |
| FA107 | SSN 150616 | US 54511-T15P | SDR T15 | P-T | US 5018-T20P | 5,0 | M | 5 | 18 | SDR | T20P-T | HS 1655C | CAC 200C | HSD 1025C | HXK 7 | – | – | |
| FA108 | SSN 150616 | US 54511-T15P | SDR T15 | P-T | US 5018-T20P | 5,0 | M | 5 | 18 | SDR | T20P-T | HS 1655C | CAC 250C | HSD 1025C | HXK 7 | – | – | |
| FA109 | SSN 150616 | US 54511-T15P | SDR T15 | P-T | US 5018-T20P | 5,0 | M | 5 | 18 | SDR | T20P-T | HS 1655C | CAC 315C | HSD 1035C | HXK 7 C | ACP 315C | RRH 34 |
AC003 KS 2040 K.FMH40
