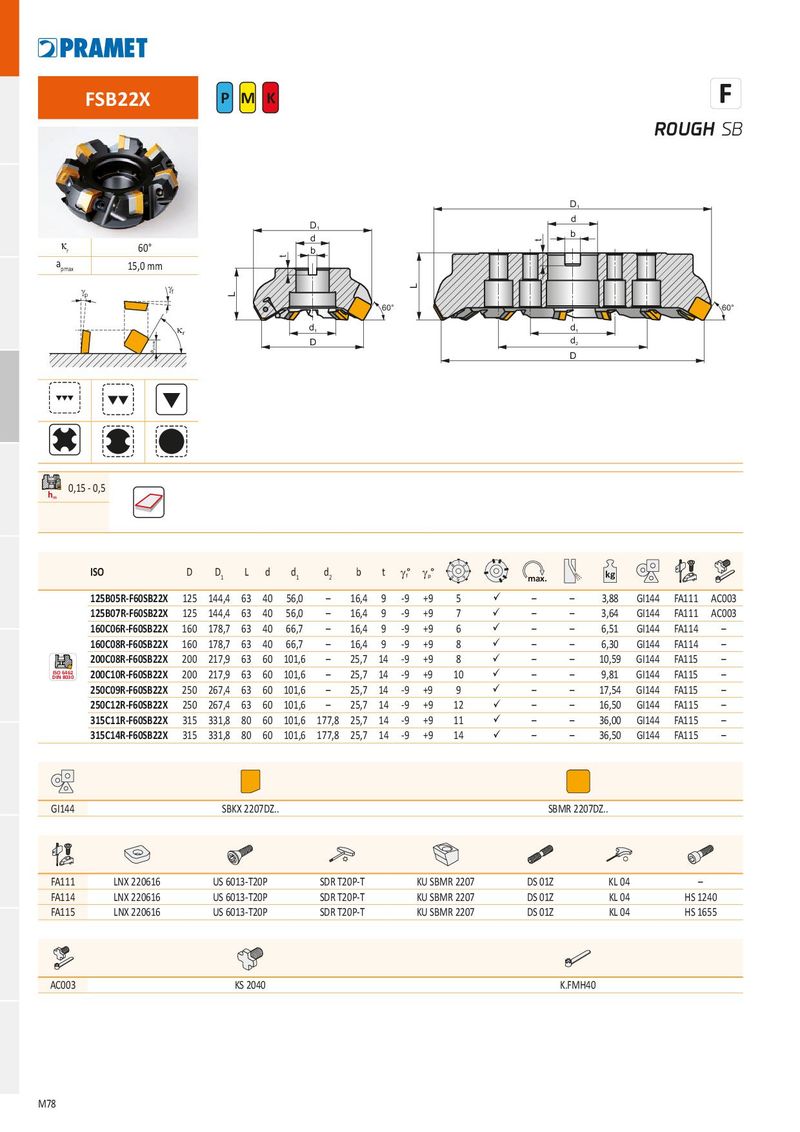

FSB22X P M K
ROUGH SB
k 60° r a 15,0 mm pmax g g p f
k r
D 1 d b
d 1 D
D 1 d b
60° 60° d 1 d 2 D
0,15 - 0,5 h m
| ISO | D | D1 | L | d | d1 | d2 | b | t | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | ||||||
| 125B05R-F60SB22X | 125 | 144,4 | 63 | 40 | 56,0 | – | 16,4 | 9 | -9 | +9 | 5 | ü | – | – | 3,88 | GI144 | FA111 | AC003 | |
| 125B07R-F60SB22X | 125 | 144,4 | 63 | 40 | 56,0 | – | 16,4 | 9 | -9 | +9 | 7 | ü | – | – | 3,64 | GI144 | FA111 | AC003 | |
| 160C06R-F60SB22X | 160 | 178,7 | 63 | 40 | 66,7 | – | 16,4 | 9 | -9 | +9 | 6 | ü | – | – | 6,51 | GI144 | FA114 | – | |
| 160C08R-F60SB22X | 160 | 178,7 | 63 | 40 | 66,7 | – | 16,4 | 9 | -9 | +9 | 8 | ü | – | – | 6,30 | GI144 | FA114 | – | |
| 200C08R-F60SB22X | 200 | 217,9 | 63 | 60 | 101,6 | – | 25,7 | 14 | -9 | +9 | 8 | ü | – | – | 10,59 | GI144 | FA115 | – | |
| ISO 6462 DIN 8030 | 200C10R-F60SB22X | 200 | 217,9 | 63 | 60 | 101,6 | – | 25,7 | 14 | -9 | +9 | 10 | ü | – | – | 9,81 | GI144 | FA115 | – |
| 250C09R-F60SB22X | 250 | 267,4 | 63 | 60 | 101,6 | – | 25,7 | 14 | -9 | +9 | 9 | ü | – | – | 17,54 | GI144 | FA115 | – | |
| 250C12R-F60SB22X | 250 | 267,4 | 63 | 60 | 101,6 | – | 25,7 | 14 | -9 | +9 | 12 | ü | – | – | 16,50 | GI144 | FA115 | – | |
| 315C11R-F60SB22X | 315 | 331,8 | 80 | 60 | 101,6 | 177,8 | 25,7 | 14 | -9 | +9 | 11 | ü | – | – | 36,00 | GI144 | FA115 | – | |
| 315C14R-F60SB22X | 315 | 331,8 | 80 | 60 | 101,6 | 177,8 | 25,7 | 14 | -9 | +9 | 14 | ü | – | – | 36,50 | GI144 | FA115 | – |
| GI144 | SBKX 2207DZ.. | SBMR 22 | 07DZ.. | ||||
| FA111 | LNX 220616 | US 6013-T20P | SDR T20P-T | KU SBMR 2207 | DS 01Z | KL 04 | – |
| FA114 FA115 | LNX 220616 LNX 220616 | US 6013-T20P US 6013-T20P | SDR T20P-T SDR T20P-T | KU SBMR 2207 KU SBMR 2207 | DS 01Z DS 01Z | KL 04 KL 04 | HS 1240 HS 1655 |
| AC003 | KS 2040 | K.FM | H40 |
