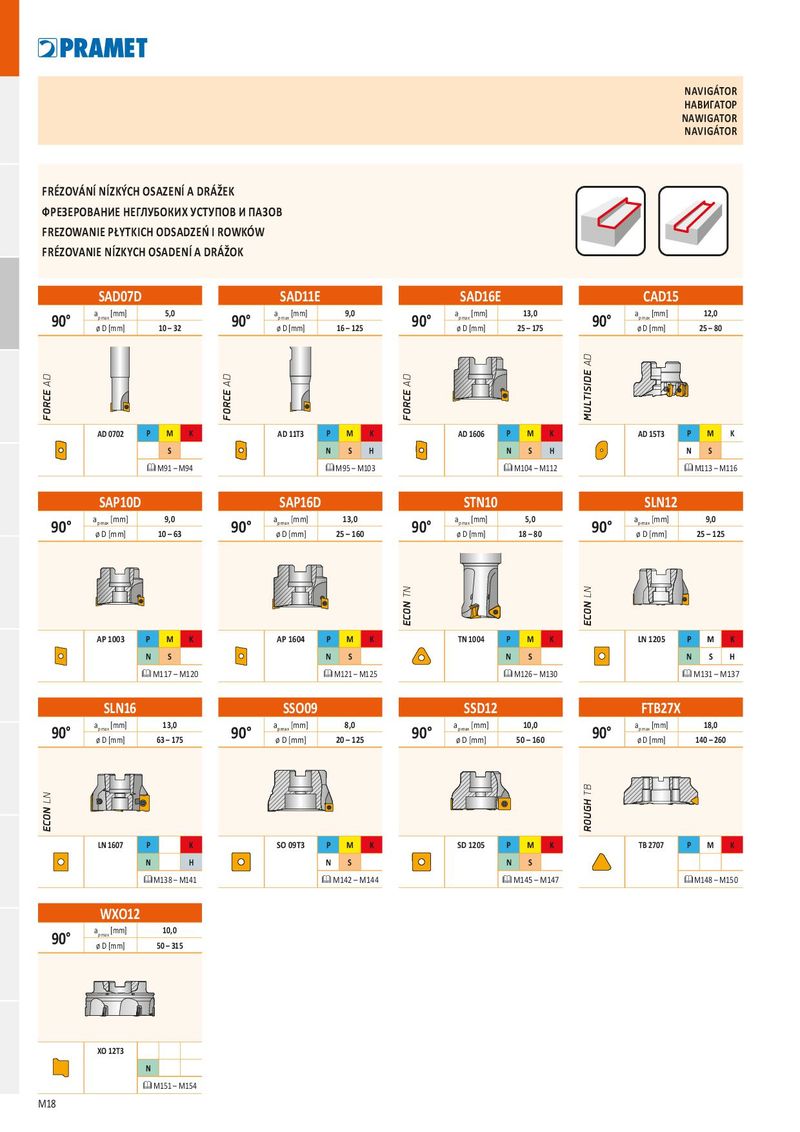

NAVIGÁTOR НАВИГАТОР NAWIGATOR NAVIGÁTOR FRÉZOVÁNÍ NÍZKÝCH OSAZENÍ A DRÁŽEK ФРЕЗЕРОВАНИЕ НЕГЛУБОКИХ УСТУПОВ И ПАЗОВ FREZOWANIE PŁYTKICH ODSADZEŃ I ROWKÓW FRÉZOVANIE NÍZKYCH OSADENÍ A DRÁŽOK SAD07D SAD11E SAD16E CAD15 ap max [mm] 5,0 ap max [mm] 9,0 ap max [mm] 13,0 ap max [mm] 12,0 90° ø D [mm] 10 – 32 90° ø D [mm] 16 – 125 90° ø D [mm] 25 – 175 90° ø D [mm] 25 – 80 MULTISIDE AD FORCE AD FORCE AD FORCE AD AD 0702 P M K AD 11T3 P M K AD 1606 P M K AD 15T3 P M K S N S H N S H N S & M91 – M94 & M95 – M103 & M104 – M112 & M113 – M116 SAP10D SAP16D STN10 SLN12 ap max [mm] 9,0 ap max [mm] 13,0 ap max [mm] 5,0 ap max [mm] 9,0 90° ø D [mm] 10 – 63 90° ø D [mm] 25 – 160 90° ø D [mm] 18 – 80 90° ø D [mm] 25 – 125 ECON TN ECON LN AP 1003 P M K AP 1604 P M K TN 1004 P M K LN 1205 P M K N S N S N S N S H & M117 – M120 & M121 – M125 & M126 – M130 & M131 – M137 SLN16 SSO09 SSD12 FTB27X ap max [mm] 13,0 ap max [mm] 8,0 ap max [mm] 10,0 ap max [mm] 18,0 90° ø D [mm] 63 – 175 90° ø D [mm] 20 – 125 90° ø D [mm] 50 – 160 90° ø D [mm] 140 – 260 ROUGH TB ECON LN LN 1607 P K SO 09T3 P M K SD 1205 P M K TB 2707 P M K N H N S N S & M138 – M141 & M142 – M144 & M145 – M147 & M148 – M150 WXO12 ap max [mm] 10,0 90° ø D [mm] 50 – 315 XO 12T3 N & M151 – M154 M18
