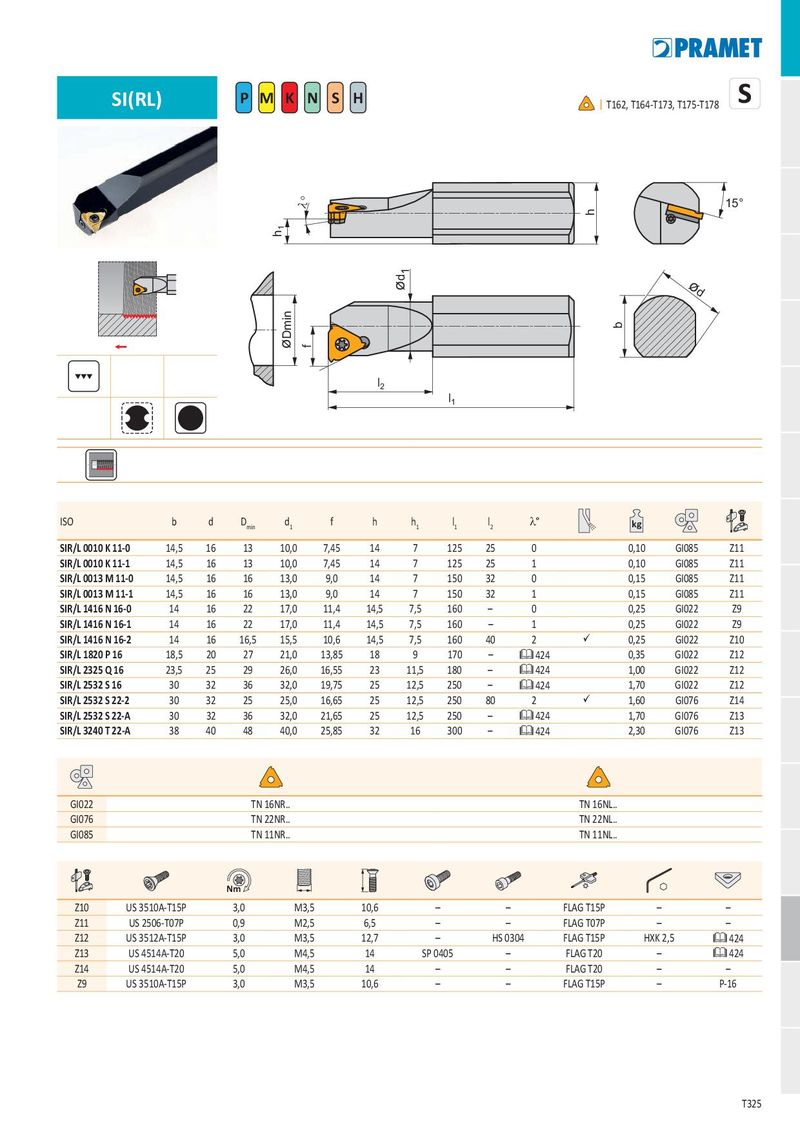

SI(RL) P M K N S H
I T162, T164-T173, T175-T178
l° 15°
d
l 2
l 1
| ISO | b | d | Dmin | d1 | f | h | h1 | l1 | l2 | l° | kg | |||
| SIR/L 0010 K 11-0 | 14,5 | 16 | 13 | 10,0 | 7,45 | 14 | 7 | 125 | 25 | 0 | 0,10 | GI085 | Z11 | |
| SIR/L 0010 K 11-1 | 14,5 | 16 | 13 | 10,0 | 7,45 | 14 | 7 | 125 | 25 | 1 | 0,10 | GI085 | Z11 | |
| SIR/L 0013 M 11-0 | 14,5 | 16 | 16 | 13,0 | 9,0 | 14 | 7 | 150 | 32 | 0 | 0,15 | GI085 | Z11 | |
| SIR/L 0013 M 11-1 | 14,5 | 16 | 16 | 13,0 | 9,0 | 14 | 7 | 150 | 32 | 1 | 0,15 | GI085 | Z11 | |
| SIR/L 1416 N 16-0 | 14 | 16 | 22 | 17,0 | 11,4 | 14,5 | 7,5 | 160 | – | 0 | 0,25 | GI022 | Z9 | |
| SIR/L 1416 N 16-1 | 14 | 16 | 22 | 17,0 | 11,4 | 14,5 | 7,5 | 160 | – | 1 | 0,25 | GI022 | Z9 | |
| SIR/L 1416 N 16-2 | 14 | 16 | 16,5 | 15,5 | 10,6 | 14,5 | 7,5 | 160 | 40 | 2 | ü | 0,25 | GI022 | Z10 |
| SIR/L 1820 P 16 | 18,5 | 20 | 27 | 21,0 | 13,85 | 18 | 9 | 170 | – | &424 | 0,35 | GI022 | Z12 | |
| SIR/L 2325Q 16 | 23,5 | 25 | 29 | 26,0 | 16,55 | 23 | 11,5 | 180 | – | &424 | 1,00 | GI022 | Z12 | |
| SIR/L 2532 S 16 | 30 | 32 | 36 | 32,0 | 19,75 | 25 | 12,5 | 250 | – | &424 | 1,70 | GI022 | Z12 | |
| SIR/L 2532 S 22-2 | 30 | 32 | 25 | 25,0 | 16,65 | 25 | 12,5 | 250 | 80 | 2 | ü | 1,60 | GI076 | Z14 |
| SIR/L 2532 S 22-A | 30 | 32 | 36 | 32,0 | 21,65 | 25 | 12,5 | 250 | – | &424 | 1,70 | GI076 | Z13 | |
| SIR/L 3240 T 22-A | 38 | 40 | 48 | 40,0 | 25,85 | 32 | 16 | 300 | – | &424 | 2,30 | GI076 | Z13 |
| GI022 | TN 1 | 6NR.. | TN 16NL.. | ||||||
| GI076 | TN 2 | 2NR.. | TN 22NL.. | ||||||
| GI085 | TN 1 | 1NR.. | TN 11NL.. | ||||||
| Nm | |||||||||
| Z10 | US 3510A-T15P | 3,0 | M3,5 | 10,6 | – | – | FLAG T15P | – | – |
| Z11 | US 2506-T07P | 0,9 | M2,5 | 6,5 | – | – | FLAG T07P | – | – |
| Z12 | US 3512A-T15P | 3,0 | M3,5 | 12,7 | – | HS 0304 | FLAG T15P | HXK 2,5 | &424 |
| Z13 | US 4514A-T20 | 5,0 | M4,5 | 14 | SP 0405 | – | FLAG T20 | – | &424 |
| Z14 | US 4514A-T20 | 5,0 | M4,5 | 14 | – | – | FLAG T20 | – | – |
| Z9 | US 3510A-T15P | 3,0 | M3,5 | 10,6 | – | – | FLAG T15P | – | P-16 |
