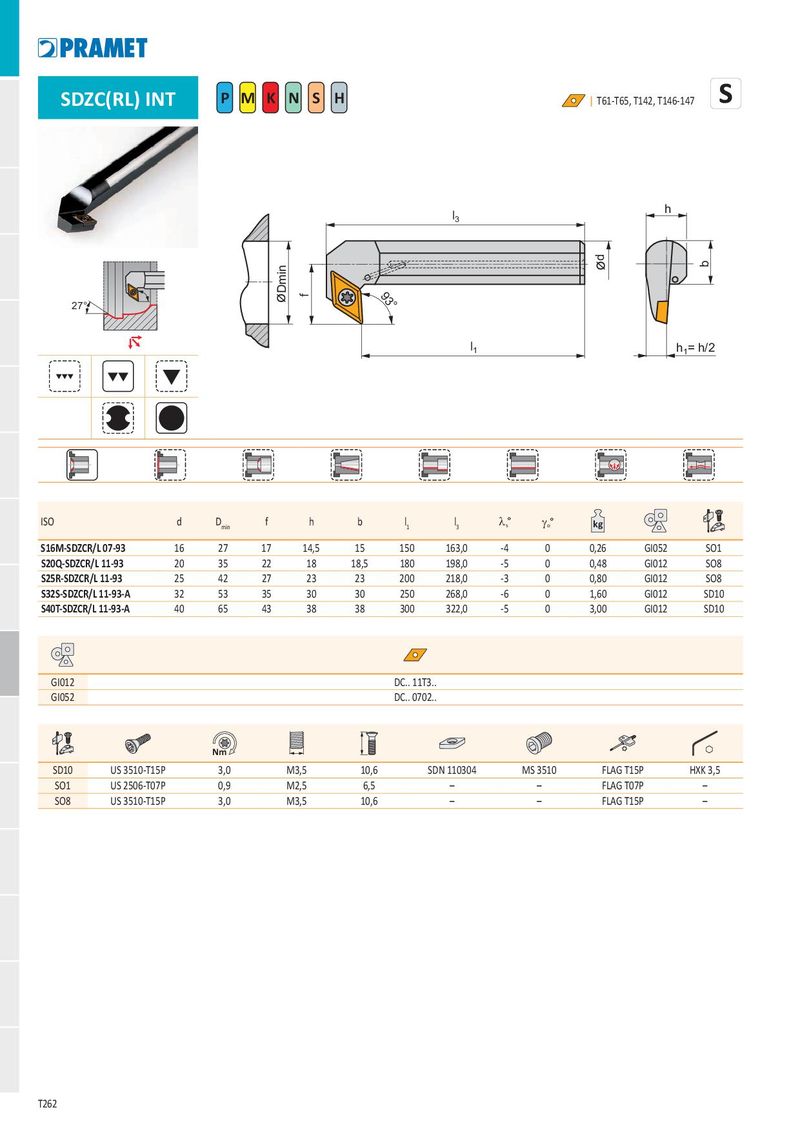

SDZC(RL) INT P M K N S H I
T61-T65, T142, T146-147
l h 3
93° 27°
l h = h/2 1 1
| ISO | d | Dmin | f | h | b | l1 | l3 | ls° | go° | kg | ||
| S16M-SDZCR/L 07-93 | 16 | 27 | 17 | 14,5 | 15 | 150 | 163,0 | -4 | 0 | 0,26 | GI052 | SO1 |
| S20Q-SDZCR/L 11-93 | 20 | 35 | 22 | 18 | 18,5 | 180 | 198,0 | -5 | 0 | 0,48 | GI012 | SO8 |
| S25R-SDZCR/L 11-93 | 25 | 42 | 27 | 23 | 23 | 200 | 218,0 | -3 | 0 | 0,80 | GI012 | SO8 |
| S32S-SDZCR/L 11-93-A | 32 | 53 | 35 | 30 | 30 | 250 | 268,0 | -6 | 0 | 1,60 | GI012 | SD10 |
| S40T-SDZCR/L 11-93-A | 40 | 65 | 43 | 38 | 38 | 300 | 322,0 | -5 | 0 | 3,00 | GI012 | SD10 |
| GI012 | DC.. 11T3.. |
| GI052 | DC.. 0702.. |
| Nm | ||||||||
| SD10 | US 3510-T15P | 3,0 | M3,5 | 10,6 | SDN 110304 | MS 3510 | FLAG T15P | HXK 3,5 |
| SO1 | US 2506-T07P | 0,9 | M2,5 | 6,5 | – | – | FLAG T07P | – |
| SO8 | US 3510-T15P | 3,0 | M3,5 | 10,6 | – | – | FLAG T15P | – |
