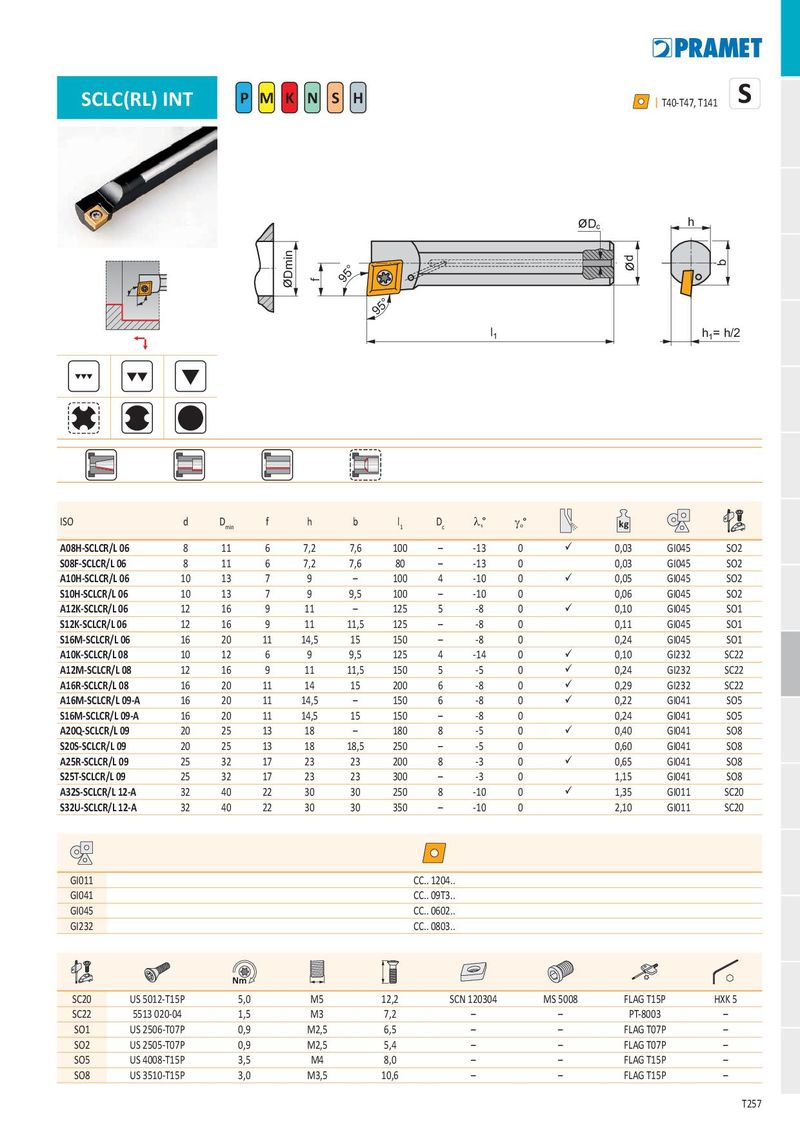

SCLC(RL) INT P M K N S H I
T40-T47, T141
95° 95°
D h c
l h = h/2 1 1
| ISO | d | Dmin | f | h | b | l1 | Dc | ls° | go° | kg | |||
| A08H-SCLCR/L 06 | 8 | 11 | 6 | 7,2 | 7,6 | 100 | – | -13 | 0 | ü | 0,03 | GI045 | SO2 |
| S08F-SCLCR/L 06 | 8 | 11 | 6 | 7,2 | 7,6 | 80 | – | -13 | 0 | 0,03 | GI045 | SO2 | |
| A10H-SCLCR/L 06 | 10 | 13 | 7 | 9 | – | 100 | 4 | -10 | 0 | ü | 0,05 | GI045 | SO2 |
| S10H-SCLCR/L 06 | 10 | 13 | 7 | 9 | 9,5 | 100 | – | -10 | 0 | 0,06 | GI045 | SO2 | |
| A12K-SCLCR/L 06 | 12 | 16 | 9 | 11 | – | 125 | 5 | -8 | 0 | ü | 0,10 | GI045 | SO1 |
| S12K-SCLCR/L 06 | 12 | 16 | 9 | 11 | 11,5 | 125 | – | -8 | 0 | 0,11 | GI045 | SO1 | |
| S16M-SCLCR/L 06 | 16 | 20 | 11 | 14,5 | 15 | 150 | – | -8 | 0 | 0,24 | GI045 | SO1 | |
| A10K-SCLCR/L 08 | 10 | 12 | 6 | 9 | 9,5 | 125 | 4 | -14 | 0 | ü | 0,10 | GI232 | SC22 |
| A12M-SCLCR/L 08 | 12 | 16 | 9 | 11 | 11,5 | 150 | 5 | -5 | 0 | ü | 0,24 | GI232 | SC22 |
| A16R-SCLCR/L 08 | 16 | 20 | 11 | 14 | 15 | 200 | 6 | -8 | 0 | ü | 0,29 | GI232 | SC22 |
| A16M-SCLCR/L 09-A | 16 | 20 | 11 | 14,5 | – | 150 | 6 | -8 | 0 | ü | 0,22 | GI041 | SO5 |
| S16M-SCLCR/L 09-A | 16 | 20 | 11 | 14,5 | 15 | 150 | – | -8 | 0 | 0,24 | GI041 | SO5 | |
| A20Q-SCLCR/L 09 | 20 | 25 | 13 | 18 | – | 180 | 8 | -5 | 0 | ü | 0,40 | GI041 | SO8 |
| S20S-SCLCR/L 09 | 20 | 25 | 13 | 18 | 18,5 | 250 | – | -5 | 0 | 0,60 | GI041 | SO8 | |
| A25R-SCLCR/L 09 | 25 | 32 | 17 | 23 | 23 | 200 | 8 | -3 | 0 | ü | 0,65 | GI041 | SO8 |
| S25T-SCLCR/L 09 | 25 | 32 | 17 | 23 | 23 | 300 | – | -3 | 0 | 1,15 | GI041 | SO8 | |
| A32S-SCLCR/L 12-A | 32 | 40 | 22 | 30 | 30 | 250 | 8 | -10 | 0 | ü | 1,35 | GI011 | SC20 |
| S32U-SCLCR/L 12-A | 32 | 40 | 22 | 30 | 30 | 350 | – | -10 | 0 | 2,10 | GI011 | SC20 |
| GI011 CC.. 1204.. |
| GI041 CC.. 09T3.. |
| GI045 CC.. 0602.. |
| GI232 CC.. 0803.. |
| Nm | ||||||||
| SC20 | US 5012-T15P | 5,0 | M5 | 12,2 | SCN 120304 | MS 5008 | FLAG T15P | HXK 5 |
| SC22 | 5513 020-04 | 1,5 | M3 | 7,2 | – | – | PT-8003 | – |
| SO1 | US 2506-T07P | 0,9 | M2,5 | 6,5 | – | – | FLAG T07P | – |
| SO2 | US 2505-T07P | 0,9 | M2,5 | 5,4 | – | – | FLAG T07P | – |
| SO5 | US 4008-T15P | 3,5 | M4 | 8,0 | – | – | FLAG T15P | – |
| SO8 | US 3510-T15P | 3,0 | M3,5 | 10,6 | – | – | FLAG T15P | – |
