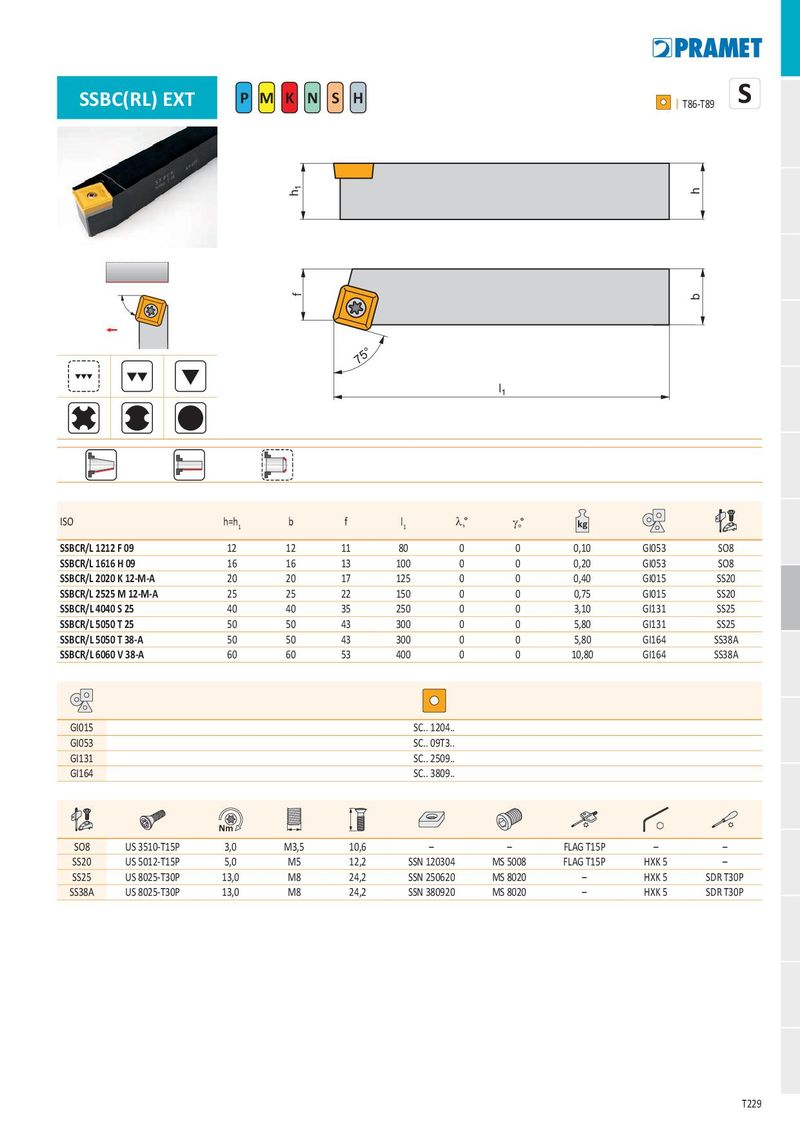

| SSBC(RL) EXT | P | M K N | S H | I T86-T89 | ||
| h1 | h | |||||
| f | b | |||||
| 75° | l1 | |||||
| ISO | h=h1 | b | f l1 | ls° go° kg | ||
| SSBCR/L 1212 F 09 | 12 | 12 | 11 80 | 0 0 0,10 | GI053 | SO8 |
| SSBCR/L 1616 H 09 | 16 | 16 | 13 100 | 0 0 0,20 | GI053 | SO8 |
| SSBCR/L 2020 K 12-M-A | 20 | 20 | 17 125 | 0 0 0,40 | GI015 | SS20 |
| SSBCR/L 2525 M 12-M-A | 25 | 25 | 22 150 | 0 0 0,75 | GI015 | SS20 |
| SSBCR/L 4040 S 25 | 40 | 40 | 35 250 | 0 0 3,10 | GI131 | SS25 |
| SSBCR/L 5050 T 25 | 50 | 50 | 43 300 | 0 0 5,80 | GI131 | SS25 |
| SSBCR/L 5050 T 38-A | 50 | 50 | 43 300 | 0 0 5,80 | GI164 | SS38A |
| SSBCR/L 6060 V 38-A | 60 | 60 | 53 400 | 0 0 10,80 | GI164 | SS38A |
| GI015 SC.. 1204.. |
| GI053 SC.. 09T3.. |
| GI131 SC.. 2509.. |
| GI164 SC.. 3809.. |
| Nm | |||||||||
| SO8 | US 3510-T15P | 3,0 | M3,5 | 10,6 | – | – | FLAG T15P | – | – |
| SS20 | US 5012-T15P | 5,0 | M5 | 12,2 | SSN 120304 | MS 5008 | FLAG T15P | HXK 5 | – |
| SS25 | US 8025-T30P | 13,0 | M8 | 24,2 | SSN 250620 | MS 8020 | – | HXK 5 | SDR T30P |
| SS38A | US 8025-T30P | 13,0 | M8 | 24,2 | SSN 380920 | MS 8020 | – | HXK 5 | SDR T30P |
