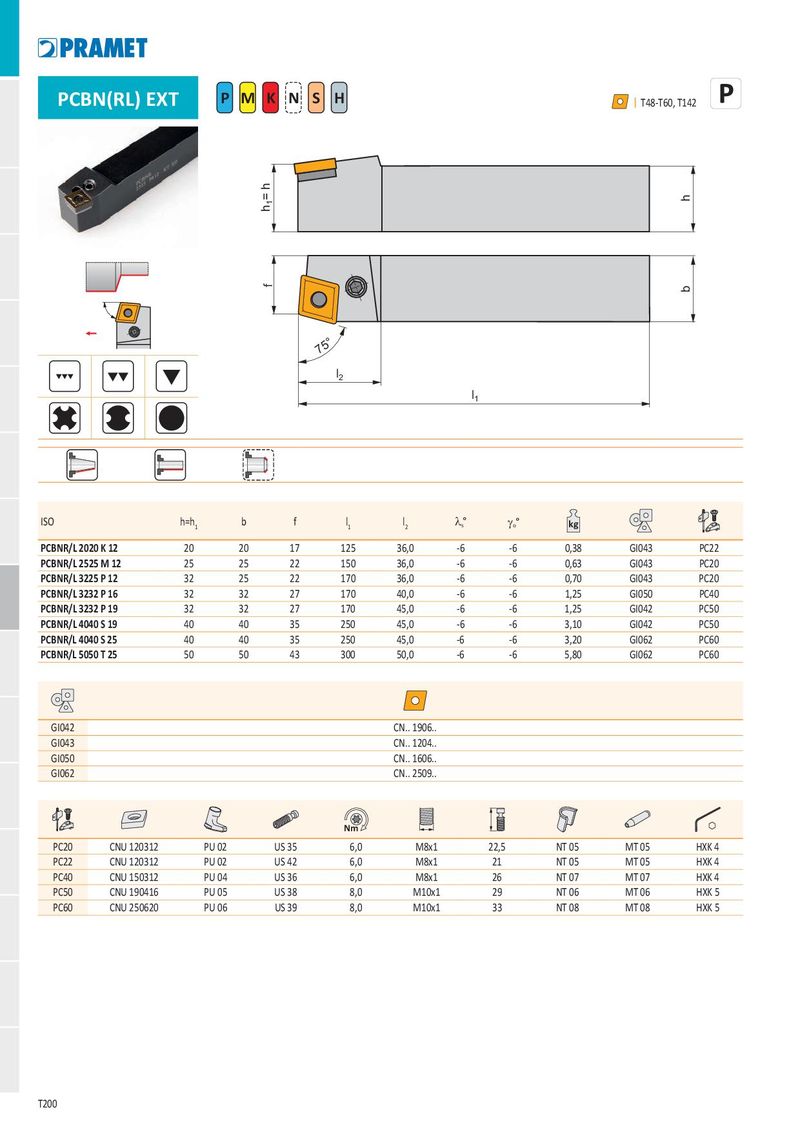

PCBN(RL) EXT P M K N S H I
T48-T60, T142
75° l 2
l 1
| ISO | h=h1 | b | f | l1 | l2 | ls° | go° | kg | ||
| PCBNR/L 2020 K 12 | 20 | 20 | 17 | 125 | 36,0 | -6 | -6 | 0,38 | GI043 | PC22 |
| PCBNR/L 2525 M 12 | 25 | 25 | 22 | 150 | 36,0 | -6 | -6 | 0,63 | GI043 | PC20 |
| PCBNR/L 3225 P 12 | 32 | 25 | 22 | 170 | 36,0 | -6 | -6 | 0,70 | GI043 | PC20 |
| PCBNR/L 3232 P 16 | 32 | 32 | 27 | 170 | 40,0 | -6 | -6 | 1,25 | GI050 | PC40 |
| PCBNR/L 3232 P 19 | 32 | 32 | 27 | 170 | 45,0 | -6 | -6 | 1,25 | GI042 | PC50 |
| PCBNR/L 4040 S 19 | 40 | 40 | 35 | 250 | 45,0 | -6 | -6 | 3,10 | GI042 | PC50 |
| PCBNR/L 4040 S 25 | 40 | 40 | 35 | 250 | 45,0 | -6 | -6 | 3,20 | GI062 | PC60 |
| PCBNR/L 5050 T 25 | 50 | 50 | 43 | 300 | 50,0 | -6 | -6 | 5,80 | GI062 | PC60 |
| GI042 | CN.. 1906.. | ||||||||
| GI043 | CN.. 1204.. | ||||||||
| GI050 | CN.. 1606.. | ||||||||
| GI062 | CN.. 2509.. | ||||||||
| Nm | |||||||||
| PC20 | CNU 120312 | PU 02 | US 35 | 6,0 | M8x1 | 22,5 | NT 05 | MT 05 | HXK 4 |
| PC22 | CNU 120312 | PU 02 | US 42 | 6,0 | M8x1 | 21 | NT 05 | MT 05 | HXK 4 |
| PC40 | CNU 150312 | PU 04 | US 36 | 6,0 | M8x1 | 26 | NT 07 | MT 07 | HXK 4 |
| PC50 | CNU 190416 | PU 05 | US 38 | 8,0 | M10x1 | 29 | NT 06 | MT 06 | HXK 5 |
| PC60 | CNU 250620 | PU 06 | US 39 | 8,0 | M10x1 | 33 | NT 08 | MT 08 | HXK 5 |
