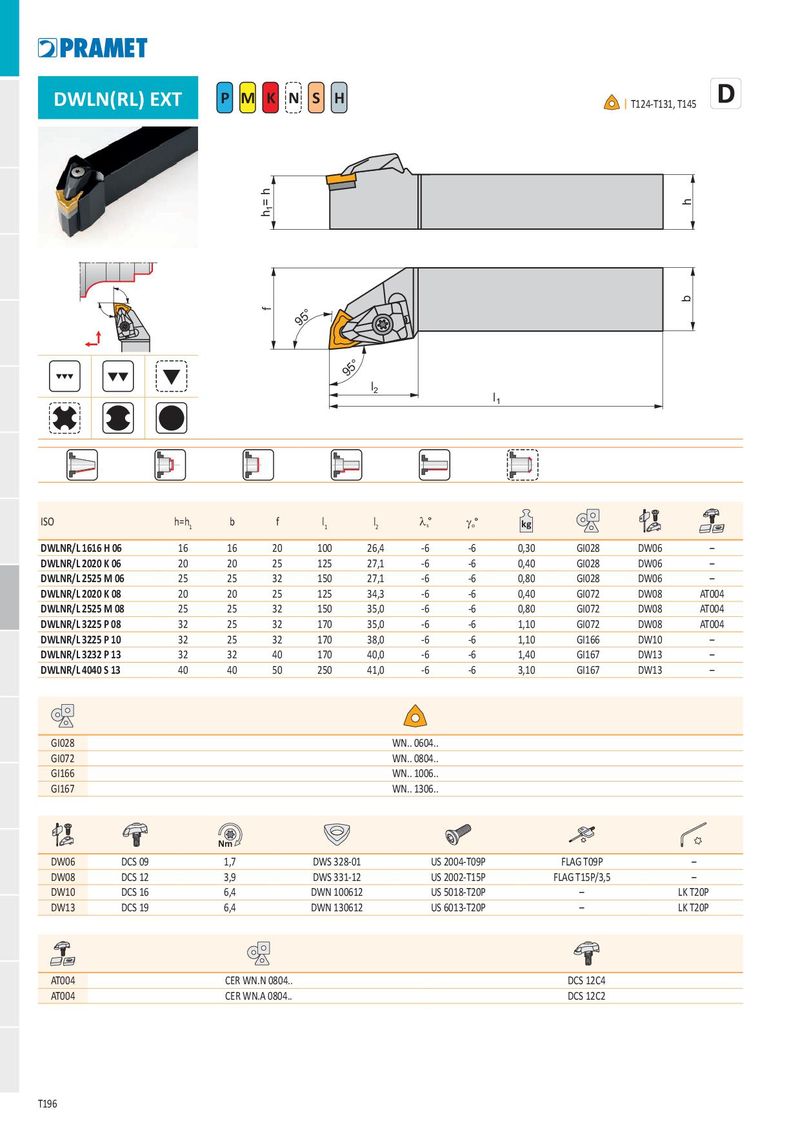

DWLN(RL) EXT P M K N S H I
T124-T131, T145
95°
95° l 2 l 1
| ISO | h=h1 | b | f | l1 | l2 | ls° | go° | kg | |||
| DWLNR/L 1616 H 06 | 16 | 16 | 20 | 100 | 26,4 | -6 | -6 | 0,30 | GI028 | DW06 | – |
| DWLNR/L 2020 K 06 | 20 | 20 | 25 | 125 | 27,1 | -6 | -6 | 0,40 | GI028 | DW06 | – |
| DWLNR/L 2525 M 06 | 25 | 25 | 32 | 150 | 27,1 | -6 | -6 | 0,80 | GI028 | DW06 | – |
| DWLNR/L 2020 K 08 | 20 | 20 | 25 | 125 | 34,3 | -6 | -6 | 0,40 | GI072 | DW08 | AT004 |
| DWLNR/L 2525 M 08 | 25 | 25 | 32 | 150 | 35,0 | -6 | -6 | 0,80 | GI072 | DW08 | AT004 |
| DWLNR/L 3225 P 08 | 32 | 25 | 32 | 170 | 35,0 | -6 | -6 | 1,10 | GI072 | DW08 | AT004 |
| DWLNR/L 3225 P 10 | 32 | 25 | 32 | 170 | 38,0 | -6 | -6 | 1,10 | GI166 | DW10 | – |
| DWLNR/L 3232 P 13 | 32 | 32 | 40 | 170 | 40,0 | -6 | -6 | 1,40 | GI167 | DW13 | – |
| DWLNR/L 4040 S 13 | 40 | 40 | 50 | 250 | 41,0 | -6 | -6 | 3,10 | GI167 | DW13 | – |
| GI028 | WN.. 0604.. |
| GI072 | WN.. 0804.. |
| GI166 | WN.. 1006.. |
| GI167 | WN.. 1306.. |
| Nm | ||||||
| DW06 | DCS 09 | 1,7 | DWS 328-01 | US 2004-T09P | FLAG T09P | – |
| DW08 | DCS 12 | 3,9 | DWS 331-12 | US 2002-T15P | FLAG T15P/3,5 | – |
| DW10 | DCS 16 | 6,4 | DWN 100612 | US 5018-T20P | – | LK T20P |
| DW13 | DCS 19 | 6,4 | DWN 130612 | US 6013-T20P | – | LK T20P |
| AT004 | CER WN.N 0804.. | DCS 12C4 | ||||
| AT004 | CER WN.A 0804.. | DCS 12C2 |
